Electric Bike
Model No. UM27.5-01

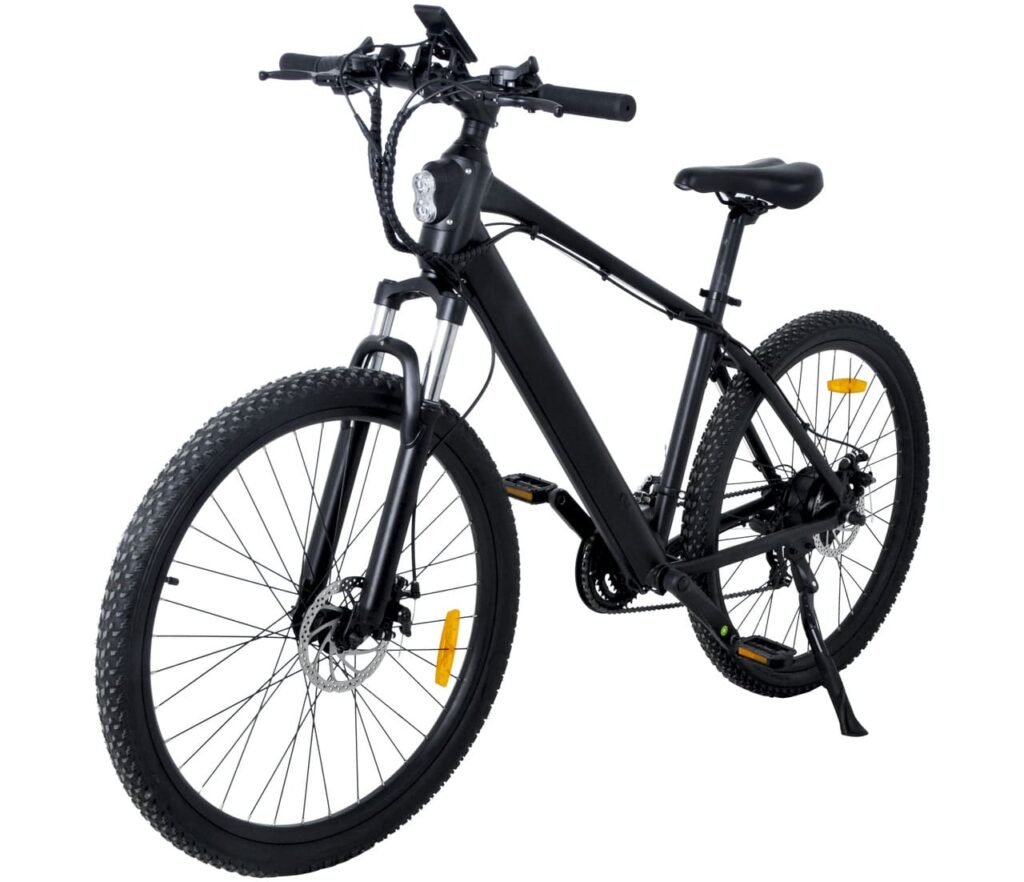

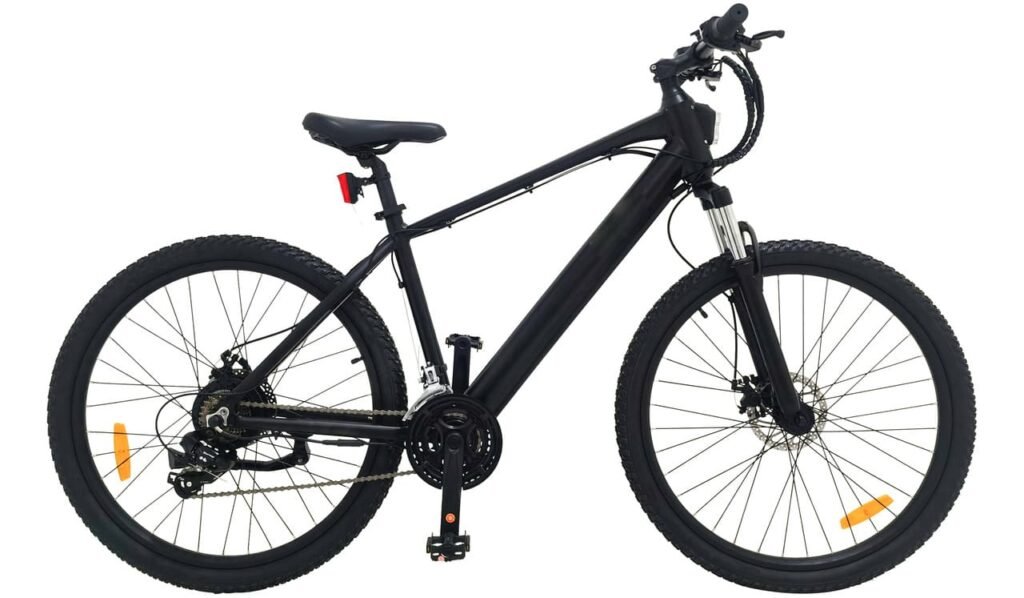

UM27.5-01
27.5 inch alloy fully integrated mountain eBike 36V250W rear-hub motor, 36V10Ah Lithium ion battery
- ■ OEM/ODM customization available
- ■ EN 15194 / UL 2849 / JIS certified options
- ■ Wholesale & private-label programs available
annie@zotec-ev.com
+86 15000722592
Technical Data
Product Specifications
Detailed technical parameters for engineering and procurement reference.
| Parameter | Value |
|---|---|
| Model No. | UM27.5-01 |
| Frame material | Aluminum Alloy |
| Wheel size | 27.5'' |
| Fork | Mechanical suspension fork, 27.5"*28.6*25.4*238mm theadless, travel 60mm, w/mechanical lockout |
| Handle Bars | Aluminum alloy, φ22.2*φ31.8*680W*2T/L=175mm, comply w/ EN STD |
| Stem | Aluminum alloy, φ28.6*φ31.8/H=36mm/EXT=80MM/10 degree, comply w/ EN STD |
| Front Shift Levers | Shimano SL-TX30-LN, TOURNEY LEFT 3-SPEED(FRICTION) 1800MM INNER, BULK |
| Front Derailleur | Shimano FD-M313, ALTUS, DOWN-SWING, DUAL-PULL FOR REAR 7/8-SPEED, BAND TYPE(34.9MM),CS ANGLE: 66-69, FOR 42/48T, CL: 47.5/50MM, BULK |
| Rear Shift Levers | Shimano ASLTX30R7AT 7 speed, right thumb shifter |
| Rear Derailleur | Shimano TZ-SERIES,RD-TZ31A GS 6/7-SPEED DIRECT ATTACHMENT BULK |
| Freewheel/ Cassette | Shimano AMFTZ5007428 7S 14-28T 1-6 |
| Chainwheel/Crank | 1/2*3/32*24T*34T*42T/170, steel/ alloy |
| Chain | 1/2″*3/32″*110L/PPO 7 speed |
| Wheel | Aluminium double wall rim 27.5*H21*13G*36H A/V nozzle |
| Front Hub | Aoyang GL-B10F-QR, M9*100*108mm/13G*36H, alloy |
| Rear Hub | w/Motor |
| Tyre | 27.5*2.1, black tyre |
| Front Brake | TL Mechanical disc brake rotor 160 |
| Rear Brake | TL Mechanical disc brake rotor 160 |
| Grips | 130mm/90mm black, comply w/PAHS std |
| Saddle | Ergonomic, comply w/ROSH STD |
| Seat post | Aluminum alloy, φ30.4*300*2.5T, w/Minimum Insertion Mark, comply w/EN Std |
| Pedals | KW-P226, Flat pedals, plastic/ alloy, w/BS Reflector |
| Reflectors | Front- white/ rear- red / wheel -yellow reflectors, comply w/AS BS CPSC Std |
| Kickstand | Aluminum alloy, adjustable, chainstay kickstand, L=265-320mm |
| Parameter | Value |
|---|---|
| Display | LCD Screen/YOLIN YL-81F display, 0-5 Modes |
| Assistance Management | 5 levels of assistance |
| Walking Assist | Yes, 6km/h |
| Engine Brand | MXUS |
| Engine Type | rear motor |
| Power | 250 W |
| Max Torque | 35 Nm |
| Battery | 36V10Ah /360Wh (Chinese 3300） |
| Battery Type | Fully integrated battery |
| Battery Distance | 40 - 50KM |
| Battery Charger | 36V2A, comply w/EN Std |
| Charging Time | 5 hours |
| Battery Lifetime | >500 cycles |
| Controller | Santroll 36V*15A |
| Sensor | Speed sensor |
| Front Light | 36V headtube integrated light, comply w/EN std |
| Rear Light | NIL |
