Electric Bike
Model No. UFAT20-01

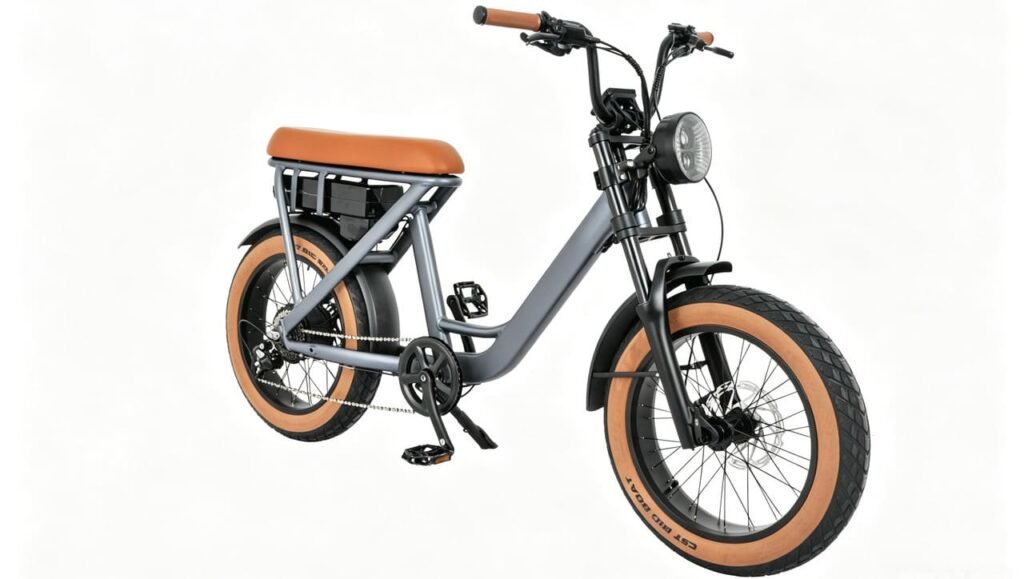

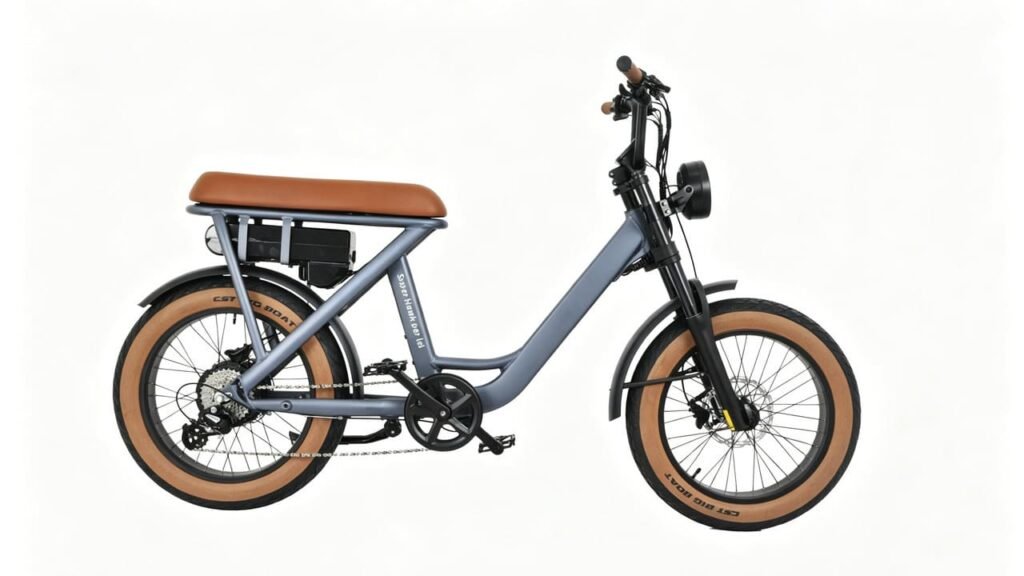

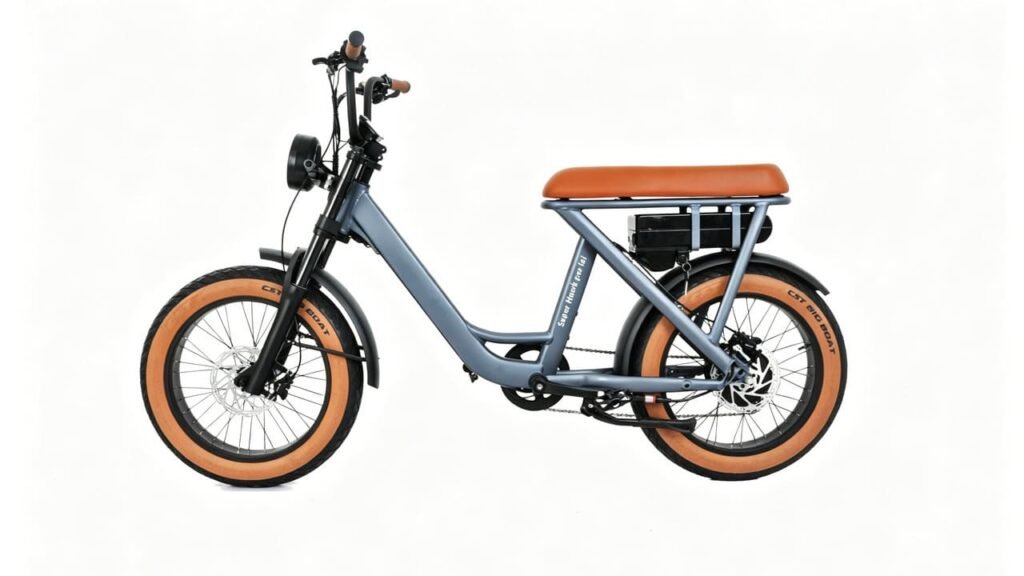

UFAT20-01
20 inch alloy fat tire eBike 48V750W Bafang rear hub motor, 48V20Ah Lithium ion battery
- ■ OEM/ODM customization available
- ■ EN 15194 / UL 2849 / JIS certified options
- ■ Wholesale & private-label programs available
annie@zotec-ev.com
+86 15000722592
Technical Data
Product Specifications
Detailed technical parameters for engineering and procurement reference.
| Parameter | Value |
|---|---|
| Model No. | UFAT20-01 |
| Frame | Alu 20'', custom tubing, internal routing |
| Fork | Yishuo STRONG-20DH, Alu 20"*4.0 28.6*25.4*30 |
| Headset | Gineyea GH-168, semi-integrated, 1-1/8", 28.6*44*44*30 |
| Stem | Alu 3D forged rise 38, ext 50mm, barbore 31.8mm, comply w/EN Std |

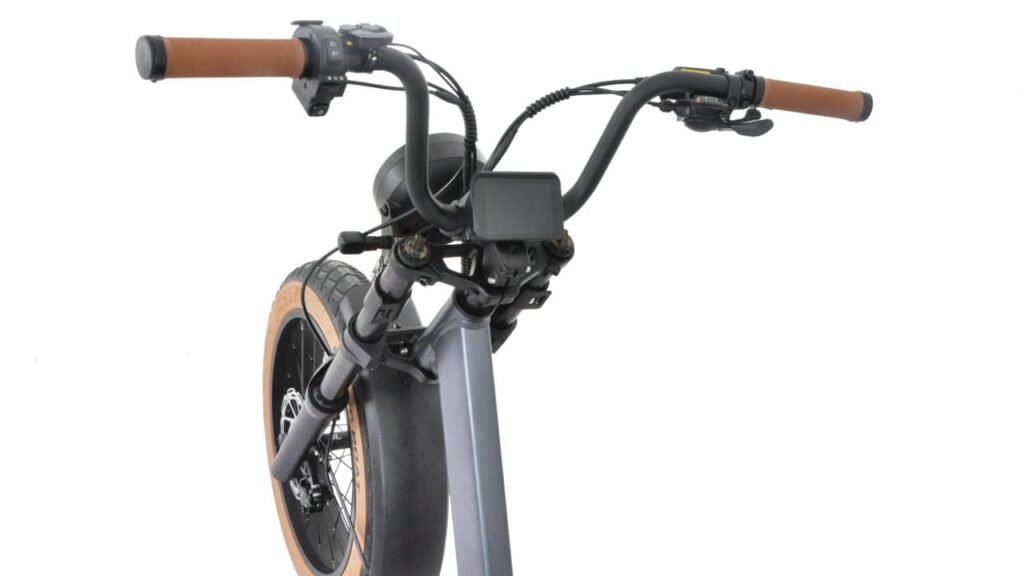

| Handle Bars | Alu rise 18mm, 15°, 680mm, comply w/EN Std |
| Grips | Justek J174L/S, 110*75mm, comply w/PAHS Std |
| Brakes | Logan E500 Hydraulic Disc Brake, w/auto cut-off function, Rotor 180/180 |
| Shift Levers | Shimano Altus SL-M315-8R, 8s Rapidfire plus |
| Rear Derailleur | Shimano Altus RD-M310-L, 8s |
| Hubs | Joytech D101DSE / R: Bafang Rear-Hub Motor |
| Cassette | Shimano CS-HG31, 8s, 11-34T |
| Chain | KMC E8 Turbo-8 132L 8s |
| Crankset | Prowheel PRO-V42PP-2, 42T Alloy crank |
| Pedals | Wellgo M224G, Alu 9/16"100*86, Ed black w/BS reflector |
| Rims | Dacheng ZLA-DC19, 20''/13G*36H/ A/V |
| Tyres | Kenda K1188E 20''4.0(406-98) black tyre |

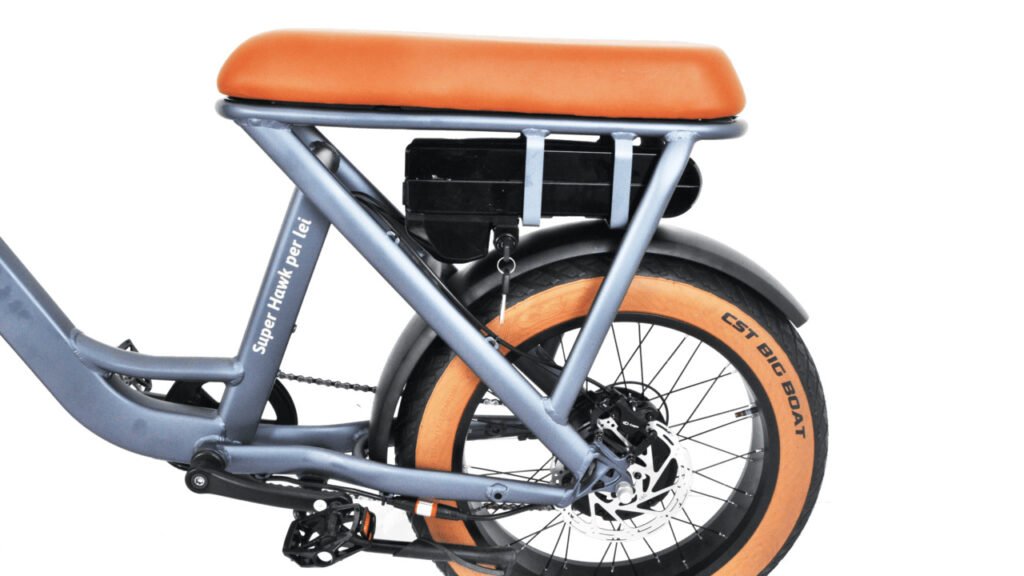

| Saddle | Huiye LL-I-500mm black, Ergonomic, comply w/RoHs Std |
| Mudguard | 20"*105W |
| Parameter | Value |
|---|---|
| Battery | Lithium Ion 960WH 48V20Ah Samsung 5E 5000mah cell, 4P13S 21700 |
| Motor | Bafang H550 Rear-Hub Motor 48V 750Watt, 80N.m (Max) |
| Sensor | 12 pulses |
| Display | Key-Disp LCD 48V PA 0-5, speed limit 45km/h |
| Controller | Lishui 36V23A |
| Throttle | Wuxing 76X.R.T+HT375, right-hand twist throttle |
| Lights | Satelite F: C12; R: M13 w/ Satelite D2 L/R direction turn lights |
| Max Assisted Speed | 45km/h |
| Charging time | 5 hrs |
| Battery Distance | 60-65 KM |
