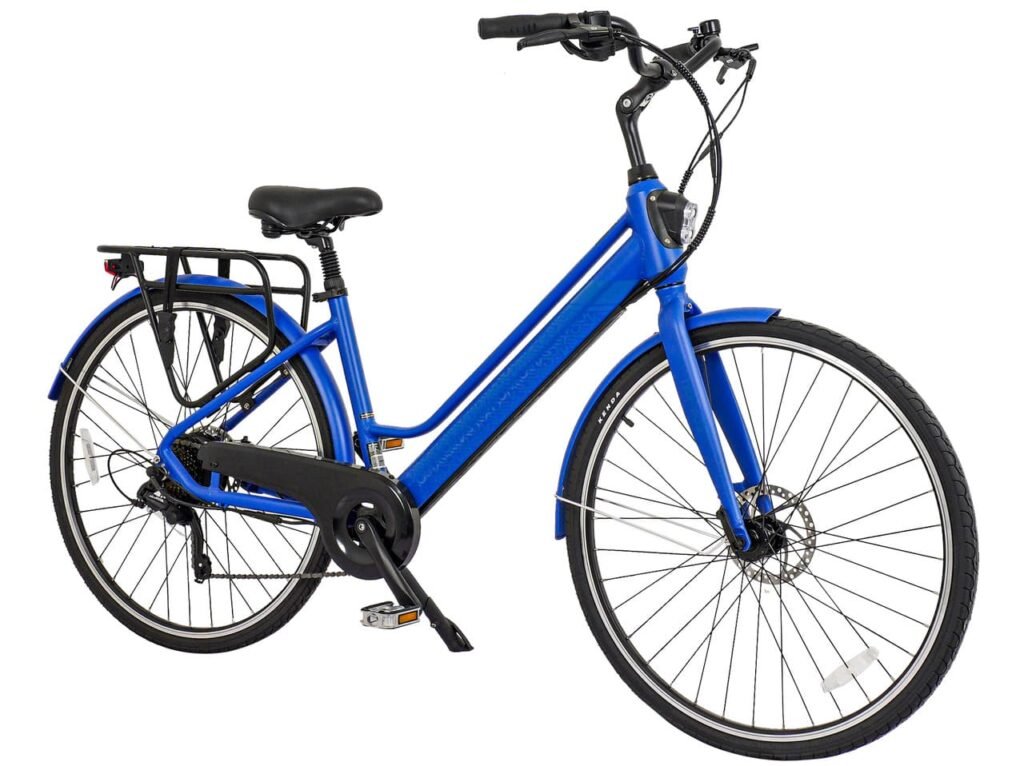

Electric Bike
Model No. UC700C-01
UC700C-01
700C City eBike, 7 speed, 36V350W rear-hub motor, 36V8.7Ah Lithium ion battery
- ■ OEM/ODM customization available
- ■ EN 15194 / UL 2849 / JIS certified options
- ■ Wholesale & private-label programs available
annie@zotec-ev.com
+86 15000722592
Technical Data
Product Specifications
Detailed technical parameters for engineering and procurement reference.
| Parameter | Value |
|---|---|
| Model No. | UC700C-01 |
| Frame material | Aluminum alloy |
| Wheel size | 700C |
| Fork | Aluminum alloy, rigid fork, 700C*25.4*28.6 steel stem*194MM w/thread |
| Handle Bars | Aluminum alloy, φ22.2*φ25.4*610W*2.6T/B=45°/H=30/L=163mm, comply w/ EN STD |
| Stem | Aluminum alloy, φ25.4*φ25.4/L=180mm/EXT=90MM/40 degree, comply w/ EN STD |
| Rear Shift Lever | Microshift TS38-7R, 7 speed, right thumb shifter |
| Rear Derailleur | Microshift RD-M21L, 7 speed, long cage, direct attachment |
| Freewheel/ Cassette | Tri-diamond 1/2*3/32, 14T-28T 7 speed |
| Chainwheel/Crank | 1/2"*3/32"*40T*170L, steel/ alloy |
| Chain | KMC Z7GY/BR, 1/2"*3/32"*112L |
| Wheel | Aluminium double wall rim, 700C*1.75*36H*13G, A/V nozzle |
| Front Hub | Aoyang GL-B10F-QR, M9*100*108mm/13G*36H, alloy |
| Rear Hub | w/Motor |
| Tyre | Kenda K193 700C*38C, black tyre |
| Front Brake | JAK Mechanical disc brake rotor 160 |
| Rear Brake | JAK Mechanical disc brake rotor 160 |
| Grips | HL HL G-302, 135MM/135MM black, comply w/PAHS std |
| Saddle | Ergonomic, comply w/ROSH STD |
| Seat post | Zoom, Aluminum alloy, SPS-C372/ISO-C, suspension, φ30.4*300, w/Minimum Insertion Mark, comply w/EN Std |
| Pedals | KW-P231, Flat pedals, plastic/ alloy, w/BS Reflector |
| Fender | Steel 700C*W50mm/F/R 651mm / 1118mm |
| Chain Cover | plastic 40T, CC335, black |
| Rear Carrier | Aluminium alloy 700C mark w/ ISO11243-2016 MAX25KG logo |
| Reflectors | Front- white/ rear- red / wheel -yellow reflectors, comply w/AS BS CPSC Std |
| Kickstand | Aluminum alloy, adjustable, chainstay kickstand, L=270-335mm |
| Parameter | Value |
|---|---|
| Display | LCD Screen/ WUXING 160PPD 0-5 Modes / brake lever integrated display, w/headlight function |
| Assistance Management | 5 levels of assistance |
| Walking Assist | Yes, 6km/h |
| Engine Brand | SHENGYI |
| Engine Type | rear motor |
| Power | 350 W |
| Max Torque | 40 Nm |
| Battery | 36V8.7Ah /313Wh (Chinese 2900） |
| Battery Type | Fully integrated battery |
| Battery Distance | 35- 40KM |
| Battery Charger | 36V2A, comply w/EN Std |
| Charging Time | 5 hours |
| Battery Lifetime | >500 cycles |
| Controller | Santroll 36V*15A |
| Sensor | Speed sensor |

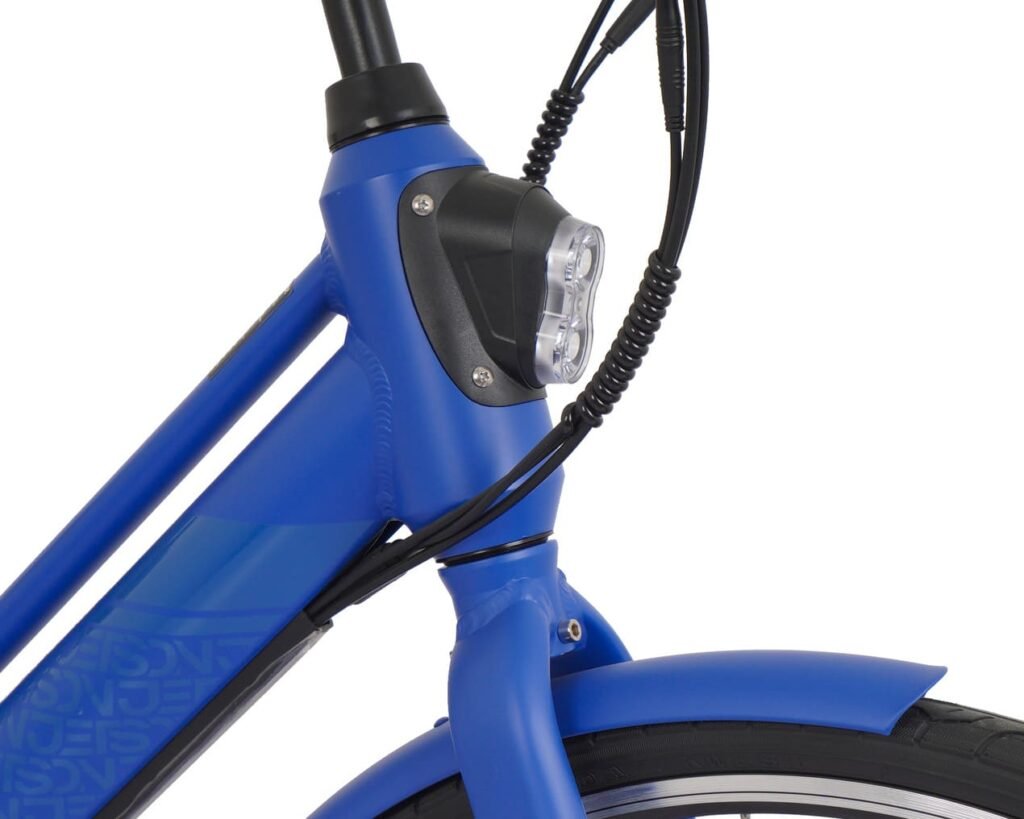

| Front Light | 36V headtube integrated light, comply w/EN std |
| Rear Light | Buchel Tivoli/ Int. battery powered, LED light E-Bike/ 6-48V, comly w/EN std |
