Electric Bike
Model No. JCARGO22-01
JCARGO22-01

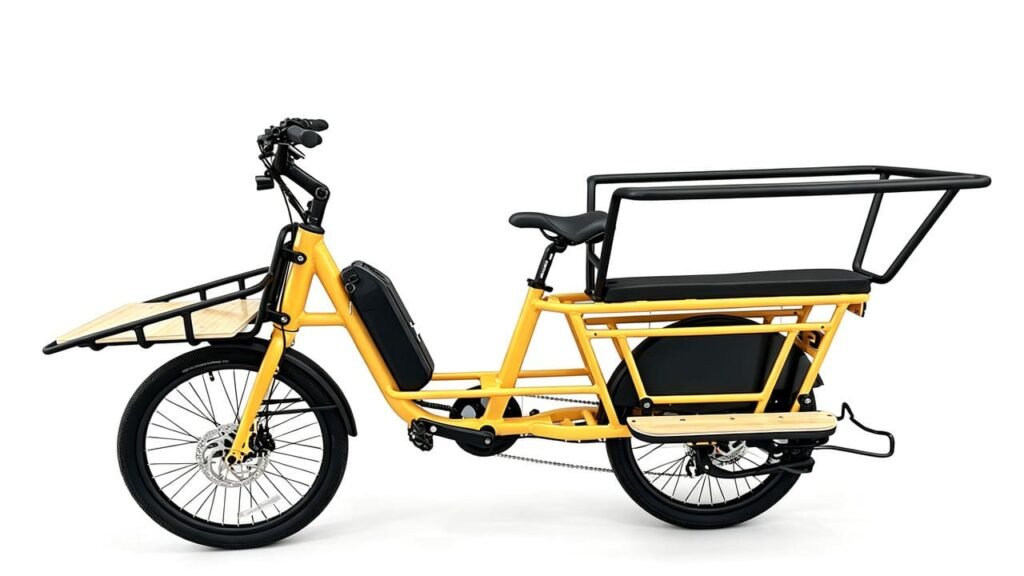

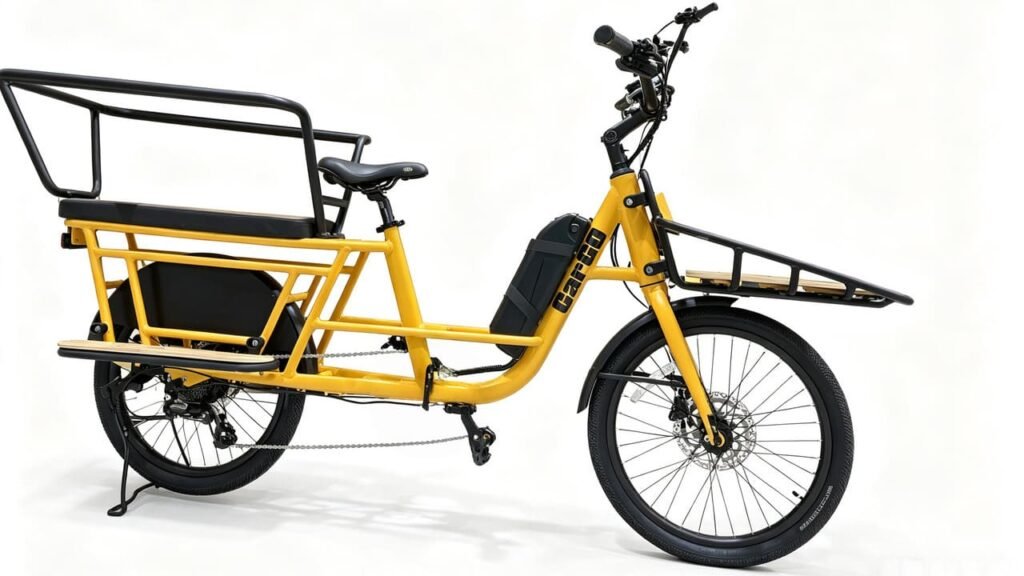

22'' Aluminum alloy Cargo eBike, Shimano 7 Speed, 36V350W rear hub motor, 36V10Ah Lithium ion battery
- ■ OEM/ODM customization available
- ■ EN 15194 / UL 2849 / JIS certified options
- ■ Wholesale & private-label programs available
annie@zotec-ev.com
+86 15000722592
Technical Data
Product Specifications
Detailed technical parameters for engineering and procurement reference.
| Parameter | Value |
|---|---|
| Model No. | JCARGO22-01 |
| Frame | Alu 20'', Ext. battery (dual), custom tubing |

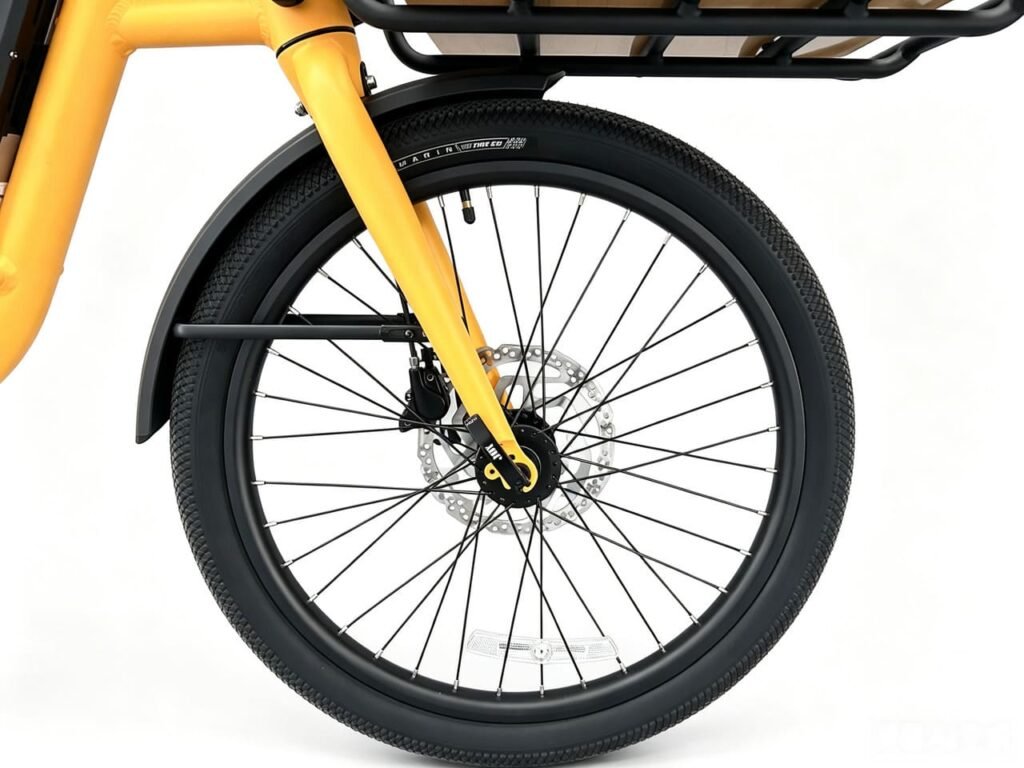

| Fork | Steel 20'' rigid fork, disc brake mount |
| Headset | GINEYEA H34+2.8=36.8+1mm, w/sunflower cap semi-hidden internal cable routing |
| Stem | ZOOM φ28.6*φ25.4/H=40mm/EXT=105MM/ comply w/ EN Std, without headset cap |
| Handle Bars | ZOOM φ22.2*φ25.4*570W*2.6T/B=41°/L=171MM/ w/o ZOOM LOGO, comply w/ EN Std |
| Grips | HL L=130mm/L=130mm, w/stopper, comply w/JIS Std |
| Brakes | Shimano MT200, Hydraulic Disc Brake, 2 Pistons, Rotor 180/180 |
| Shift Levers | Microshift Thumb Shifter 7 Speed, L=2400MM |
| Rear Derailleur | Shimano Altus RD-M310-L, ALTUS, 7/8-SPEED DIRECT ATTACHMENT, BLACK, BULK |
| Front Hub | JOYTECH axle φ9*100*108/13G*36H/ disc brake hub, w/black QR, w/o logo |
| Rear Hub | w/Motor |
| Freewheel / Cassette | SHIMANO 7S 14-28T |
| Chain | KMC 1/2"*3/32"*136L anti-rust |

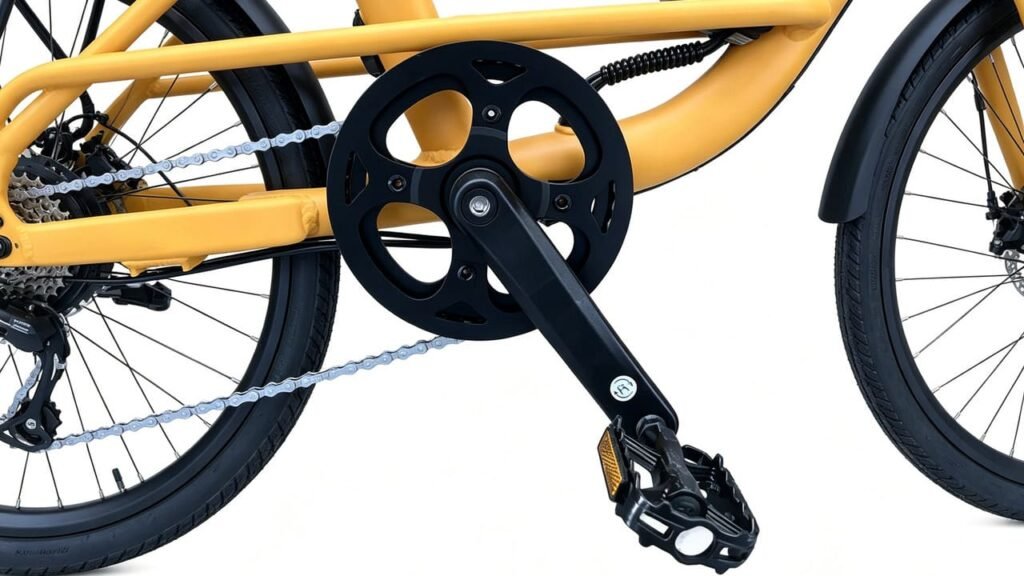

| Crankset | PROWHEEL 1/2*3/32*52T, BED (3/32), alloy 5-spider sandblasted anodized BK CL: 48mm, AG55-52T double guard |
| Pedals | WELLGO 9/16" axle / size: 103*66*25/ black / w/ JIS reflector |
| Rims | STARS alloy double wall rim, 22"*H18mm/36H*13G/A/V nozzle |
| Tyres | VEE 22*2.0" /w/ VEE logo, comply w/ ROHS Std |
| Saddle | SELLE ROYAL 259x211mm black leather |
| Seat Post | ZOOM φ27.2*350/w/ ZOOM LOGO/ comply w/ ISO Std |
| Mudguard | POWER RIM 22"*64.3W front/ rear fender, L=500mm / L=830mm |

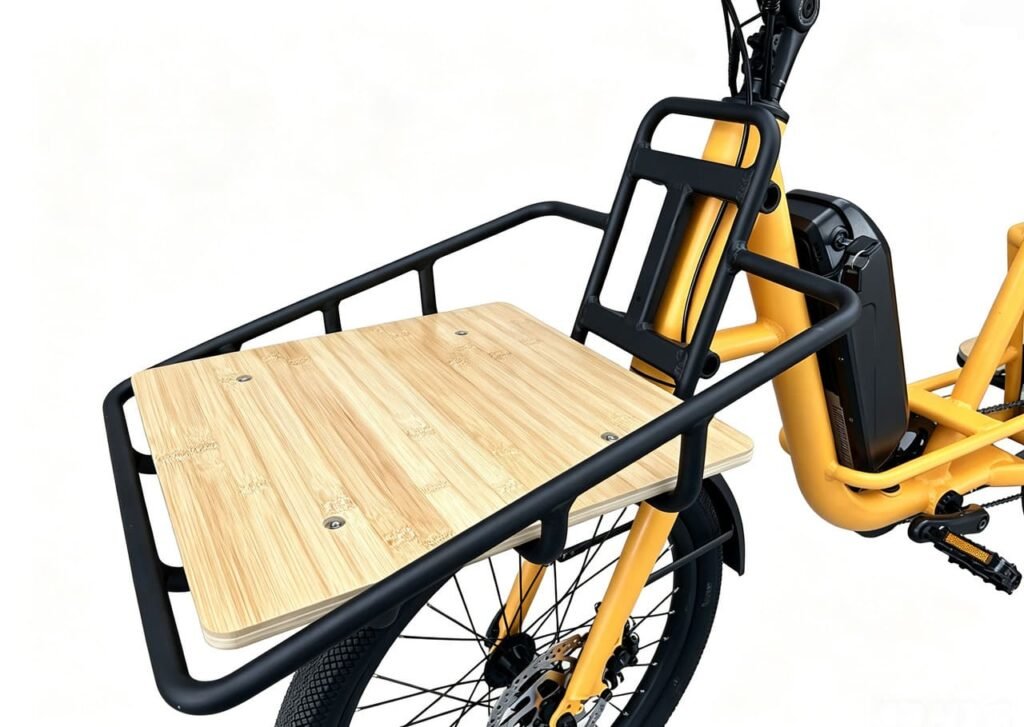

| Front Basket | Optional |
| F. basket and R. foot stay woodboard | Optional |
| Foot Board / Stay | Optional |
| Rear Carrier Handrail | Optional |
| Rear Carrier Saddle | Optional |
| Side Kick Stand | Optional |
| Parameter | Value |
|---|---|

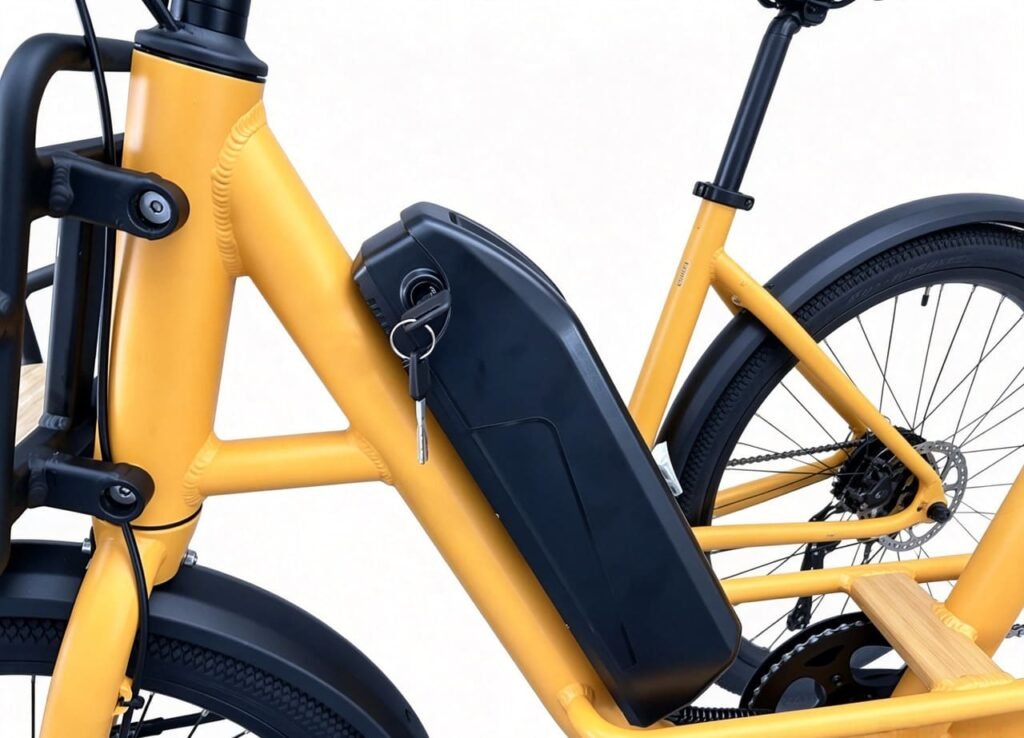

| Battery | Lithium Ion 360WH 36V10Ah LG 5000 mah cell |
| Motor | 36V*350W/22'' rear hub motor |
| Sensor | Torque BB sensor |
| Display | Kingmeter LCD display 36V/22 5S protocol, 0-3 Pedal assist level, |
| Controller | Lishui 36V, current limit 14A |
| Throttle | NIL |
| Lights | E-Bike/6-48VDC 50LUX front light, connected w/lithium ion battery |
| Max Assisted Speed | 24km/h |
| Charging time | 5 hrs |
| Battery Distance | 40-50 KM |
