Electric Bike
Model No. ET700C-03
ET700C-03
700C Trekking eBike, Shimano 9 speed, 36V250W rear-hub motor, 36V20AH Lithium ion battery
- ■ OEM/ODM customization available
- ■ EN 15194 / UL 2849 / JIS certified options
- ■ Wholesale & private-label programs available
annie@zotec-ev.com
+86 15000722592
Technical Data
Product Specifications
Detailed technical parameters for engineering and procurement reference.
| Parameter | Value |
|---|---|
| Model No. | ET700C-03 |
| Frame | Alu 700C, integrated battery, custom tubing, internal routing |
| Fork | Suntour SF21-XCM32-ATB-DS-RL-29, 100mm, Remote Lockout |
| Headset | FSA NO.69, semi-integrated, 1-1/8"/1.5" |

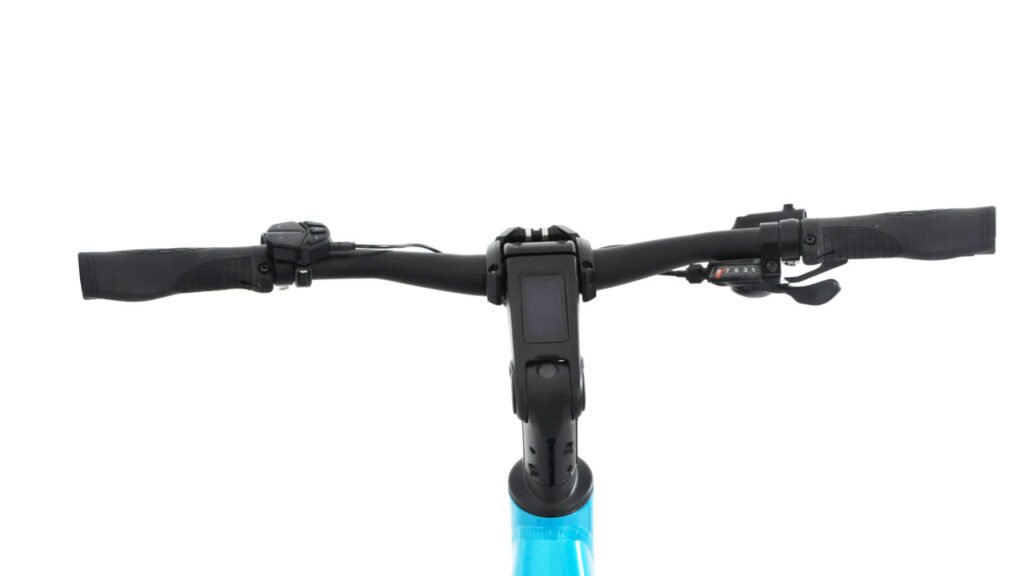

| Stem | Integrated w/ Display |
| Handle Bars | Promax HB-3188SP, rise 18mm, 9°, 620mm, comply w/EN Std |
| Grips | Velo VLG-1777D2, 131.6mm, Hard plastic/ Gel black (A25), comply w/PAHS Std |
| Brakes | Shimano MT200, Hydraulic Disc Brake, 2 Pistons, Rotor 180/180 |
| Shift Levers | Shimano Altus SL-M2010, Papidfire-plus 9s |

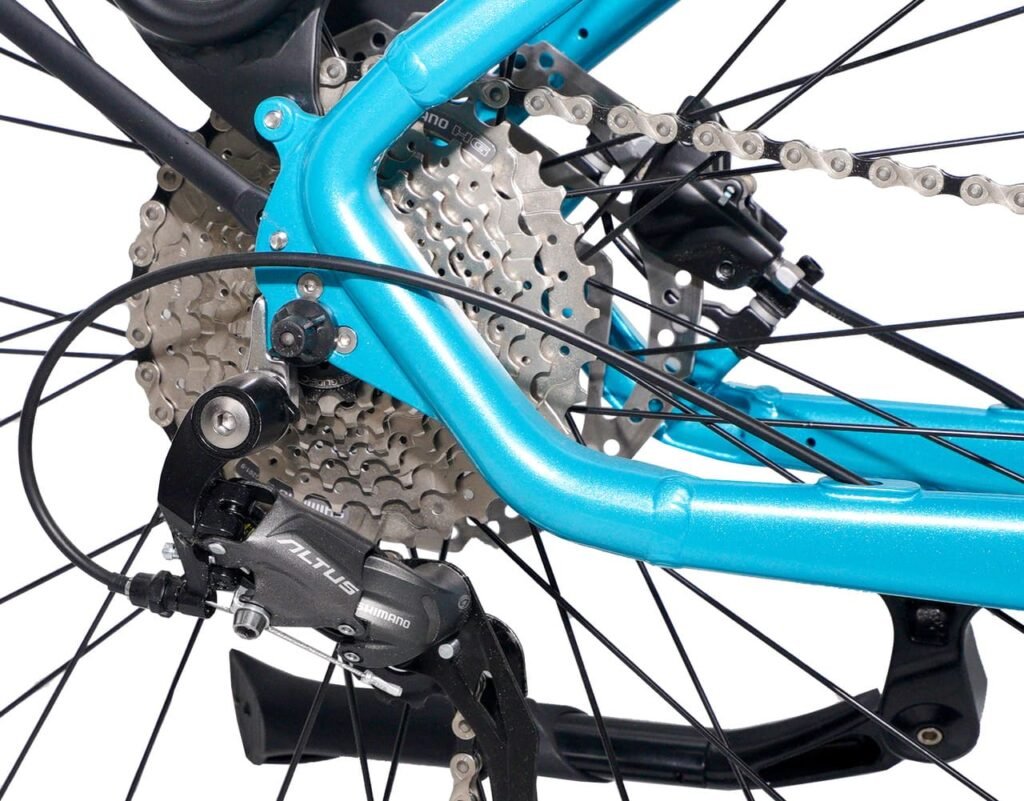

| Rear Derailleur | Shimano Altus RD-M370, SGS, 9s |
| Hubs | Kunteng KT-SR6F/ KT-SR6R 2 bearings, 9s 36H |

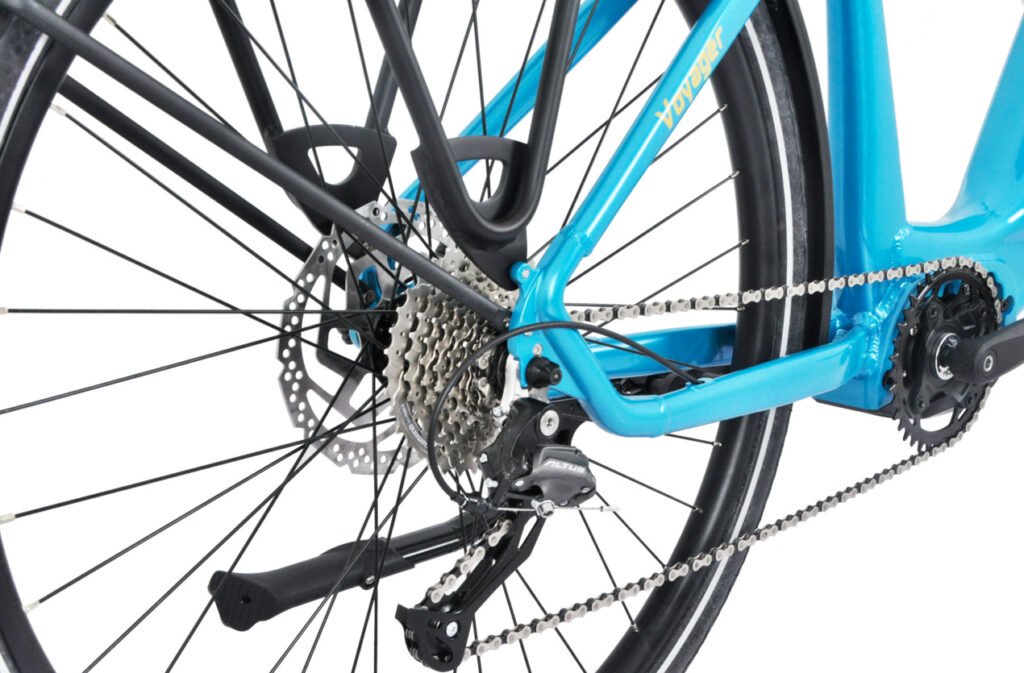

| Cassette | Shimano CS-HG400-9, 9s 12/36 |
| Chain | KMC E9 TURBO-9, 124L 9s |
| Crankset | Bafang CW B1.11, 38T Alloy crank |
| Pedals | Wellgo M224G, Alloy, 9/16"100*86, Alu Ed black w/BS reflector |
| Rims | Stars J25D, 700C/13G*36H/ A/V |
| Tyres | Maxxis M2028 E50 E-BIKE 28"X2.0"(M2028EP) 49-622/ black tyre |
| Saddle | S.R. FREEWAY-A094HRO, 255x220mm black, Ergonomic, comply w/RoHs Std |
| Seat Post | Mogubro C11 alu, 30.9x360mm, integrated w/Taillight, comply w/EN Std |
| Mudguard | Powercir P60NP-S 28"*60W |
| Carrier | Alu, without brackets |
| Parameter | Value |
|---|---|
| Battery | Lithium Ion 720WH 36V20Ah Chinese 5000mah cell, 4P10S 21700 |

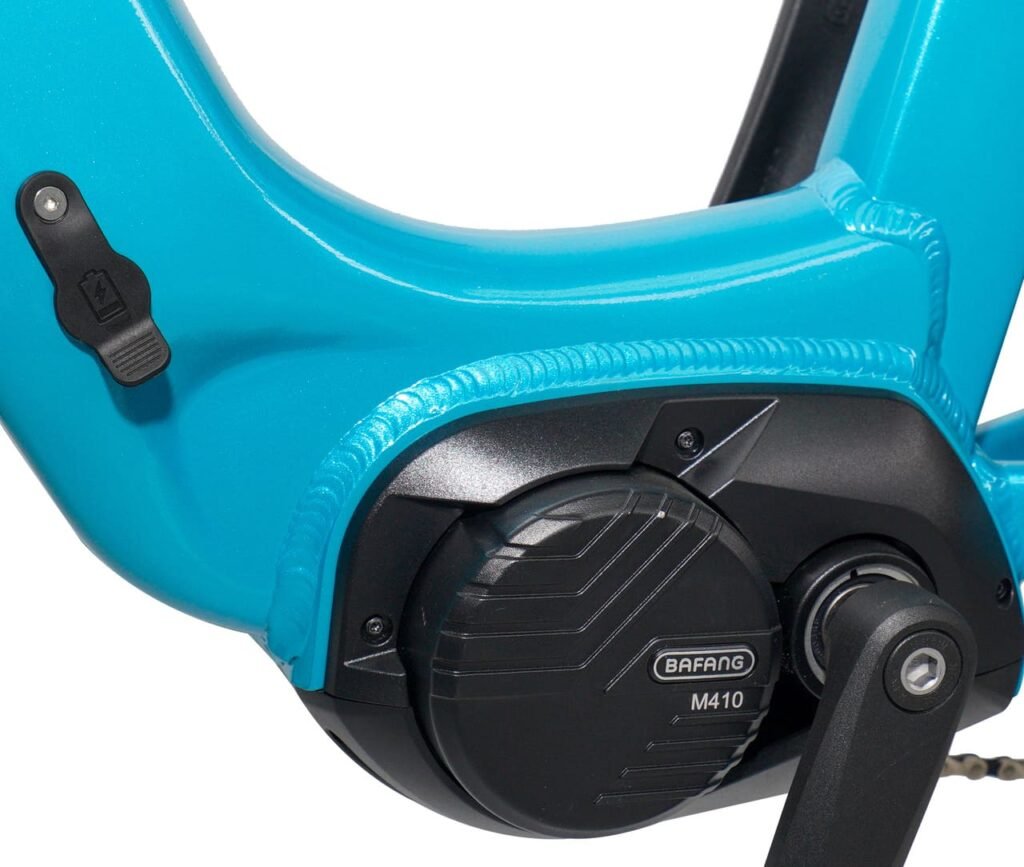

| Motor | Bafang M410 36V 250Watt, 80N.m (Max) |
| Sensor | Bafang Cadence & Torque |
| Display | Seekrun Q1 Stem integrated display, LCD 36V PA 0-5, speed limit 25km/h |
| Controller | Bafang groupset |
| Throttle | NIL |

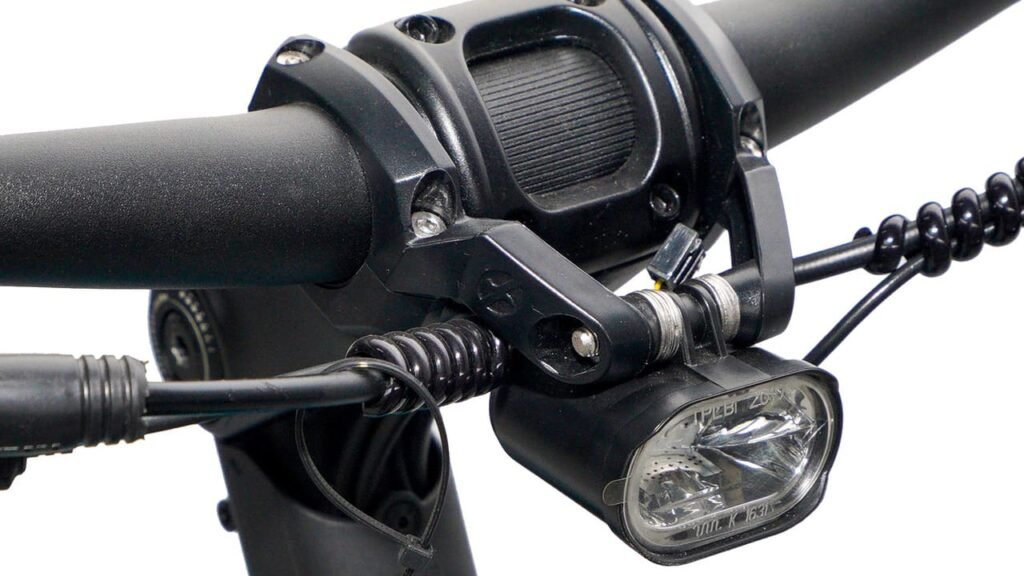

| Lights | Spanninga F: AXENDO 30+ led 30 lux |
| Max Assisted Speed | 25km/h |
| Charging time | 7 hrs |
| Battery Distance | 100 KM |
