Electric Bike
Model No. ET28-01
ET700C-01
700C Touring Ladies' eBike 36V250W Bafang mid-motor, 36V13AH Lithium ion battery.
- ■ OEM/ODM customization available
- ■ EN 15194 / UL 2849 / JIS certified options
- ■ Wholesale & private-label programs available
annie@zotec-ev.com
+86 15000722592
Technical Data
Product Specifications
Detailed technical parameters for engineering and procurement reference.
| Parameter | Value |
|---|---|
| Model No. | ET700C-01 |
| Frame material | Aluminium alloy |
| Wheel size | 700C |
| Fork | S.R. Suntour Hydraulic Suspension Fork, SF16-NEX-HLO-DS-700C-63, threaded, travel 63mm, w/Lockout |
| Handle Bars | ZOOM Aluminum Alloy, NR-AL-16/ISO-C, 620mm comply w/ EN STD |
| Stem | ZOOM Aluminum Alloy, MTS-C297N-5/ISO-C, Adjustable, 180mmL/EXT=90MM, comply w/ EN STD |
| Rear Shift Levers | Shimano SL-M2010-9R, Altus right 9-Speed Rapidfire Plus |
| Rear Derailleur | Shimano RD-M2000, Altus, 9-Speed, Direct Attchment, Bulk |
| Freewheel/ Cassette | Shimano Cassette Sprocket, CS-HG200-9, 9-Speed |
| Chainwheel/Crank | Bafang MM G210.250.C groupset 1/2"*11/128"*38T, Steel/Alloy |
| Chain | KMC e9 Sport/ EPT 1/2"*11/128"*120L 9 Speed, Mid-drive motor specialized chain |
| Wheel | Aluminium double wall rim 700C"*H30mm/36H*13G/A/V nozzle |
| Front Hub | Joytech M9*100MM*108L/36H*13G/disc brake, alloy |
| Rear Hub | Joytech M10*135*145mm/13G*36H/disc brake, 8-10 cassette specialized |
| Tyre | 700C*40C, black tyre |
| Front Brakes | Shimano MT200 Hydraulic disc brake |
| Rear Brake | Shimano MT200 Hydraulic disc brake |
| Grips | HL 137MM*137MM black/pink color |
| Saddle | Ergonomic, comply w/ROSH STD |
| Seat post | ZOOM SP-C207/ISO-M, Aluminum Alloy, φ30.4*300 w/Minimum Insertion Mark, comply w/EN Std |
| Pedals | Flat pedals, Plastic/Alloy, w/BS Reflector |
| Fender | Plastic fender DH-PC50 700C*50MM, matt black |

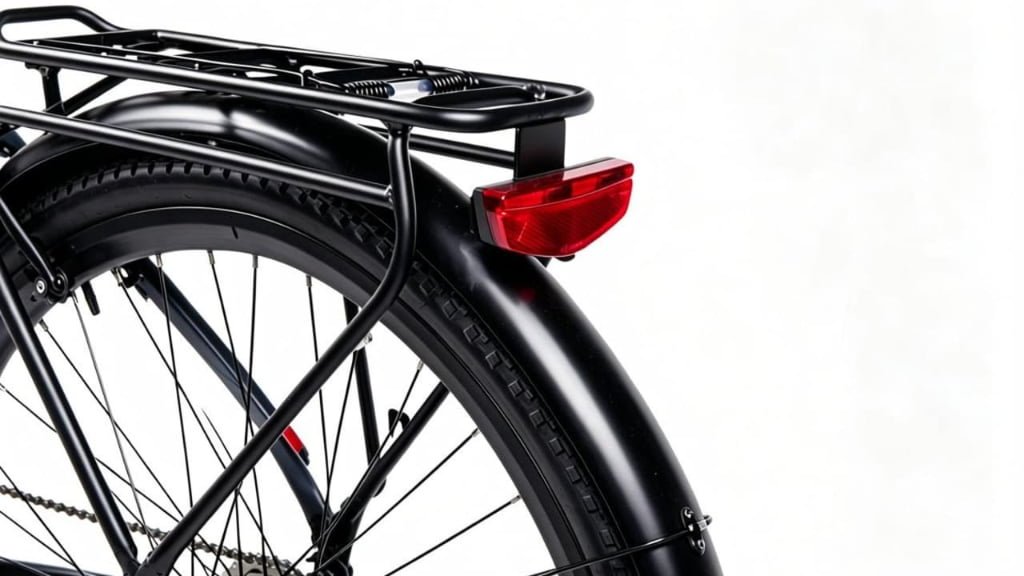

| Rear Carrier | Alloy, single-layer rear carrier, w/ISO 11243:2016 MAX25KG markings, matt black |
| Reflectors | Front- white/ wheel -yellow reflectors, comply w/AS BS CPSC Std |
| Kickstand | Alloy, chainstay kickstand, adjustable/ L= 265-320mm |
| Parameter | Value |
|---|---|

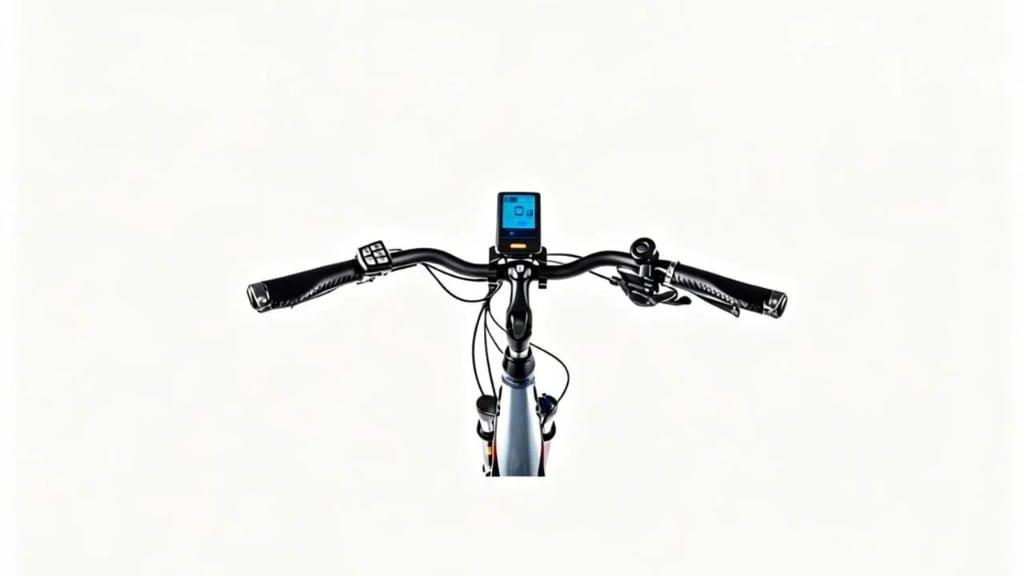

| Display | LCD Screen/ Bafang, LCD digital, 0-5 Modes |
| Assistance Management | 5 levels of assistance |
| Walking Assist | Yes, 6km/h |

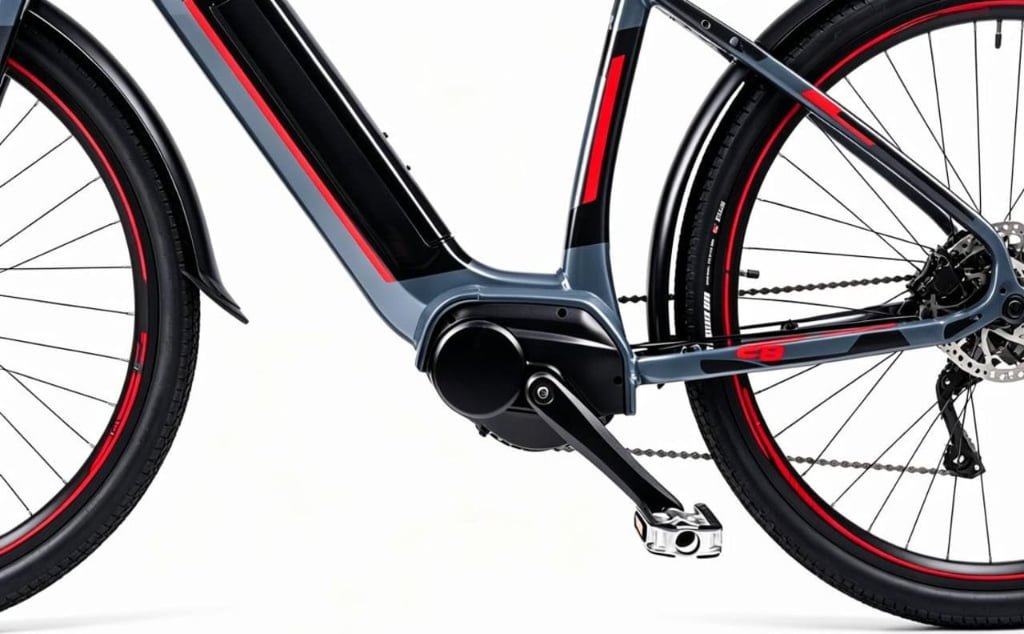

| Engine Brand | Bafang Mid-Drive MM G210.250.C |
| Engine Type | Central Engine |
| Power | 250 W |
| Max Torque | 65 Nm 90 N.m (Peak 90N.m) |

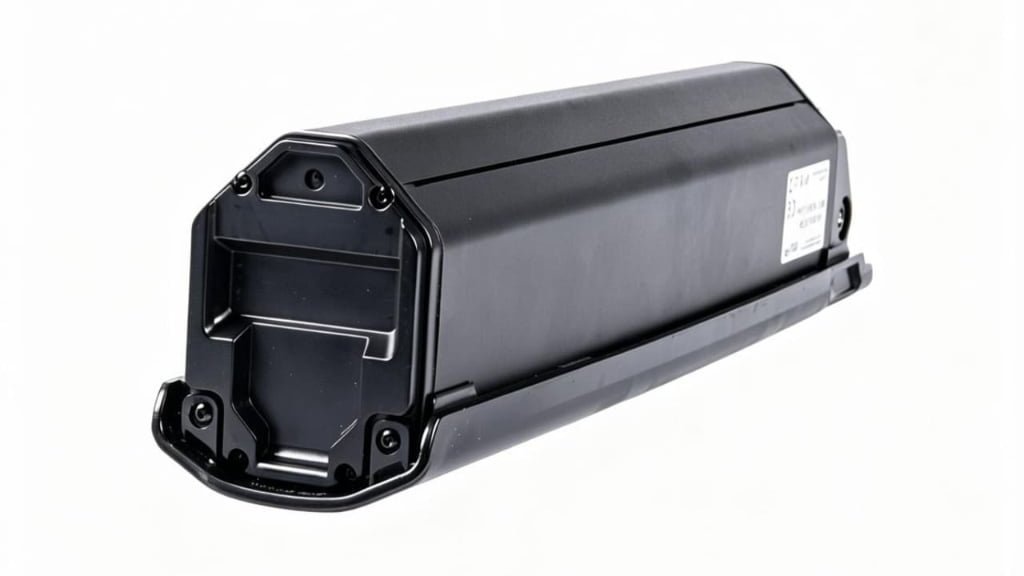

| Battery | 36V13AH / 468Wh (Samsung 2600mah) |
| Battery Type | Integrated battery |
| Battery Distance | 60 - 80KM |
| Battery Charger | 36V2Ah DC2.1, comply w/EN Std |
| Charging Time | 6 -7 hours |
| Battery Lifetime | >500 cycles |
| Controller | Bafang Mid-Drive MM G210.250.C groupset |
| Pedal Sensor | Torque+Cadence |
| Front Light | Ext. battery powered, XC-153W, LED light, comly w/EN std |
| Rear Light | Ext. battery powered, XC262, LED light, comply w/EN std |
