Electric Bike
Model No. ET29-01
ET29-01

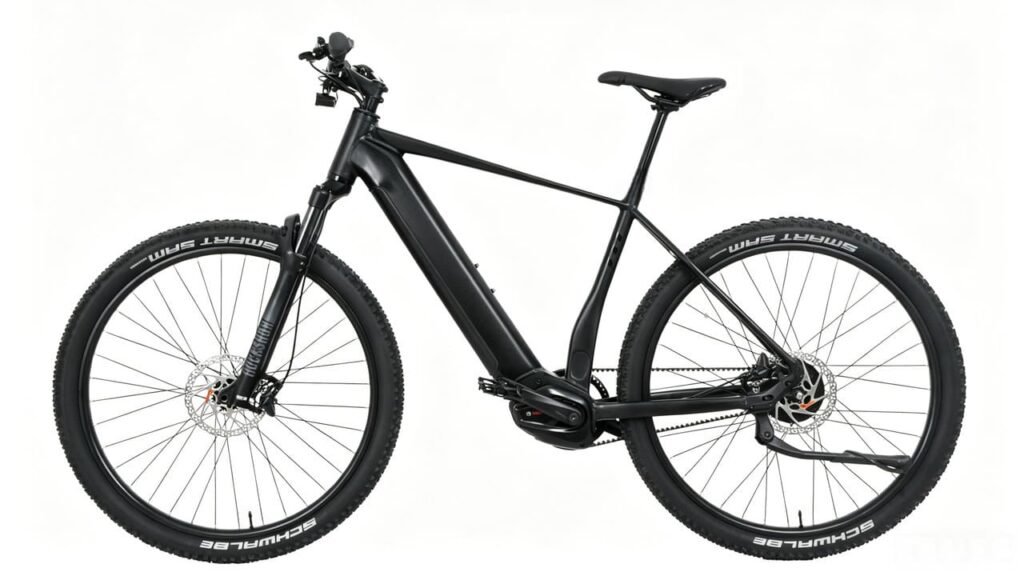

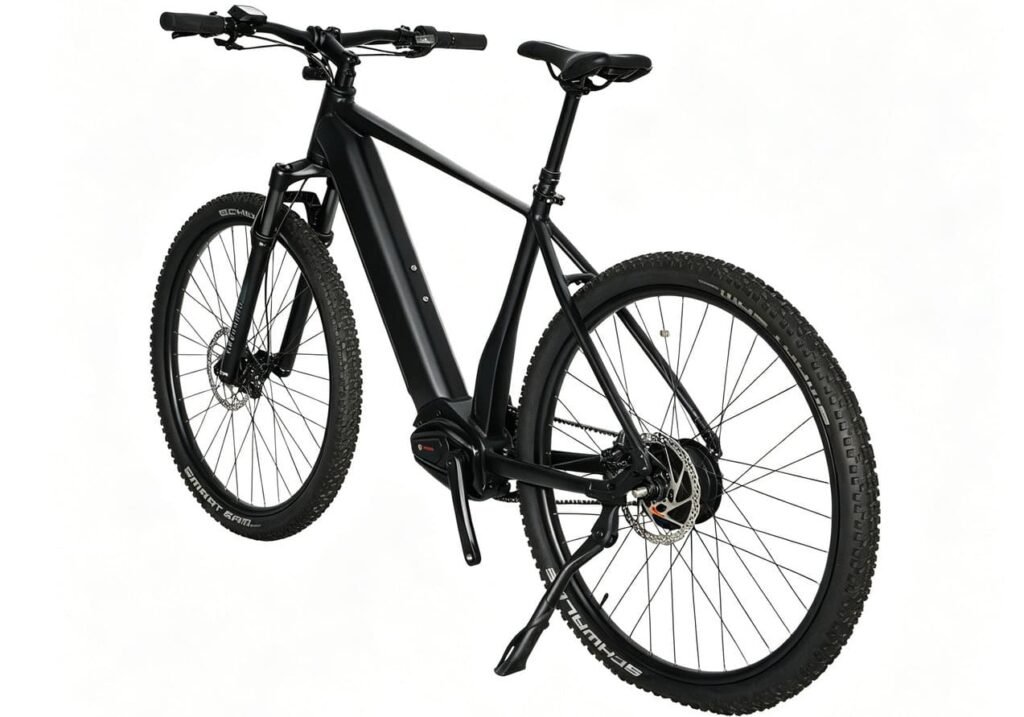

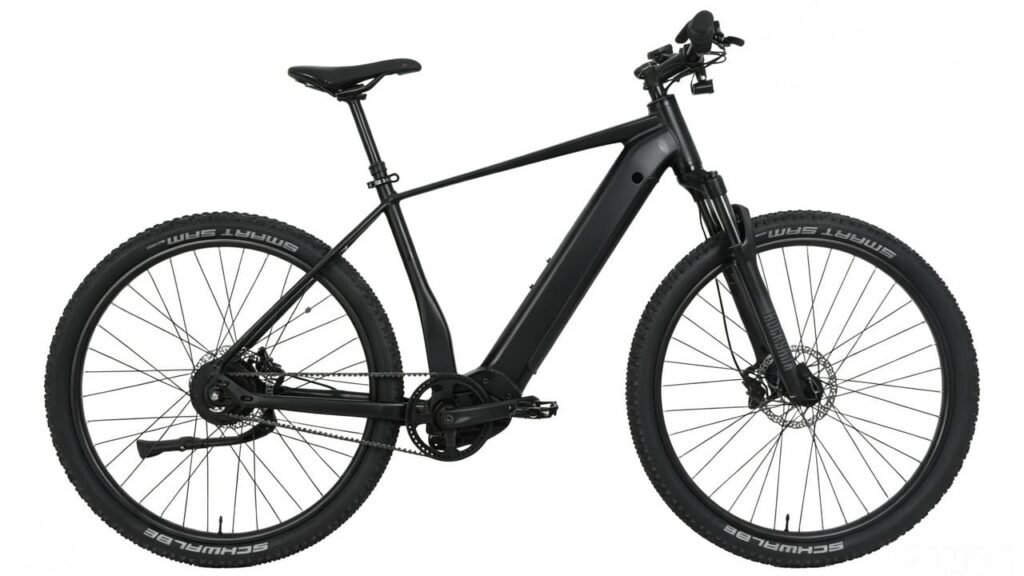

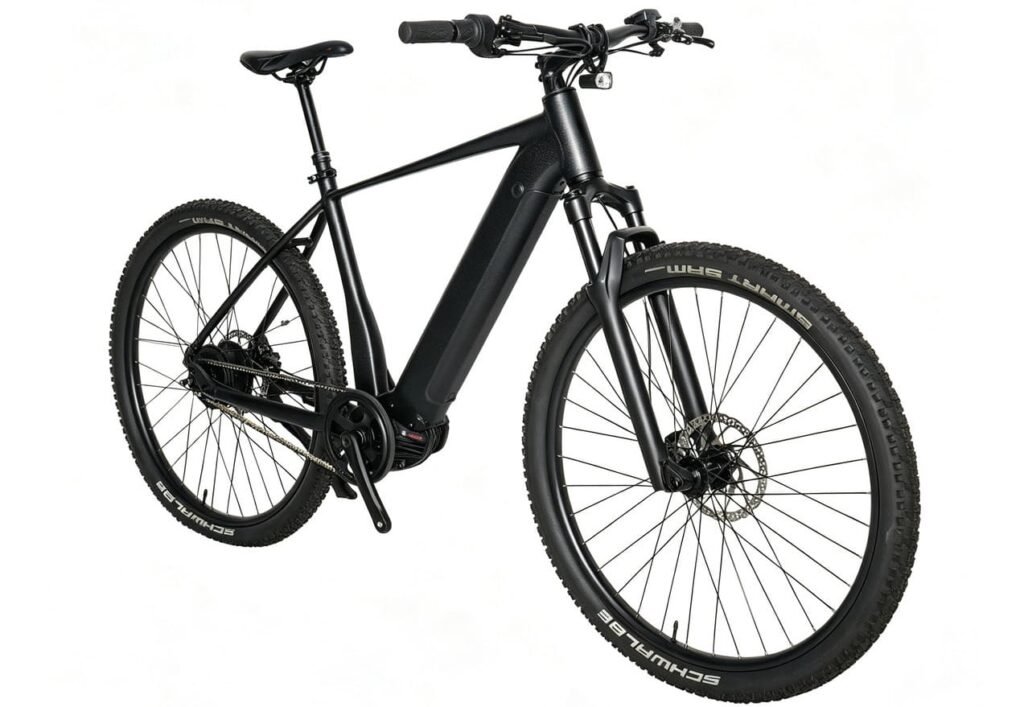

29 inch alloy mountain eBike, Enviolo Trekking Stepless Internal Gear Hub, 36V250W Panasonic GX Ultimate mid-drive motor, 36V19.2Ah Lithium ion battery
- ■ OEM/ODM customization available
- ■ EN 15194 / UL 2849 / JIS certified options
- ■ Wholesale & private-label programs available
annie@zotec-ev.com
+86 15000722592
Technical Data
Product Specifications
Detailed technical parameters for engineering and procurement reference.
| Parameter | Value |
|---|---|
| Model No. | ET29-01 |
| Frame | Alu 29'', integrated battery, custom tubing, internal routing |
| Fork | SRAM Recon 29" 100MM, through axle, Mechanical Lockout |
| Headset | FSA NO.69, semi-integrated, 1-1/8"/1.5" |
| Stem | Promax DA-2012(C), ext 50mm, barbore 31.8mm, comply w/EN Std |
| Handle Bars | Promax HB-3188DB R18, rise 18mm, 8°, 740mm, comply w/EN Std |
| Grips | Velo VLG-1745AD3, 130mm, Hard plastic/ Gel black (A25), comply w/PAHS Std |
| Brakes | Shimano M6100, Hydraulic Disc Brake, 4 Pistons, Rotor 180/180 |
| Shift Levers | Enviolo Twist Display Pure & Pro |
| Rear Derailleur | Enviolo Trekking Stepless Internal Gear Hub |

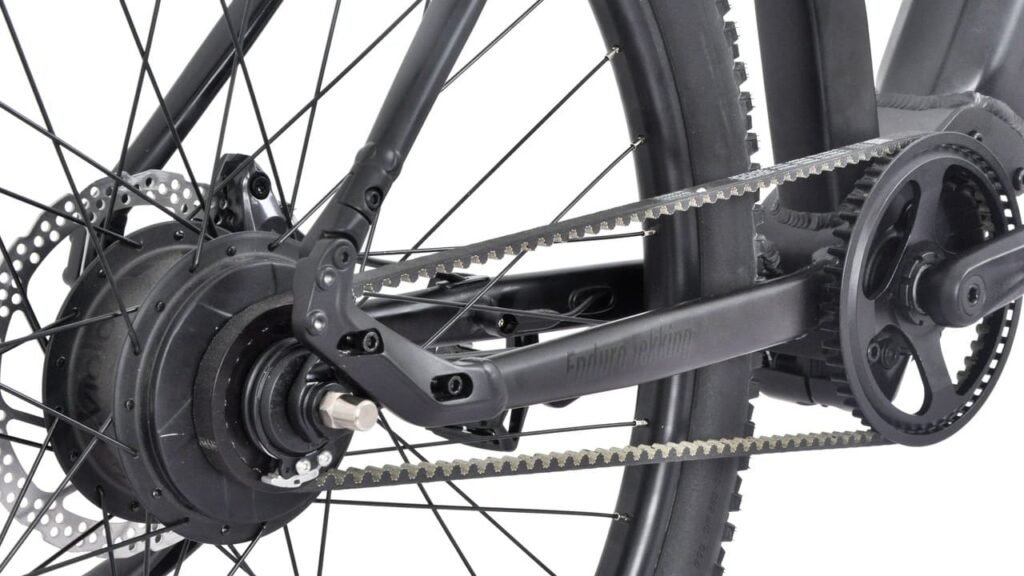

| Hubs | Enviolo Trekking Stepless Internal Gear Hub, manual interface 40T |
| Cassette | Gates 22T Enviolo CDX CT1122VMN |
| Chain | Gates 122T CDX |
| Crankset | Gates 50T Alloy crank match w/Bosch Performance CX |
| Pedals | Wellgo B249DU, Alloy, 9/16"100*86, Alu Ed black w/BS reflector |
| Rims | Stars R24-3R, 700C/13G*36H/A/V |
| Tyres | Schwalbe HS 624 Smart Sam, 29"X2.35" black tyre w/reflective sidewall |
| Saddle | S.R. MACH 2-A008URO, 264x140mm black, Ergonomic, comply w/RoHs Std |
| Seat Post | Promax SP-2059 alu, suspended 125mm, 30.9x360mm, comply w/EN Std |
| Mudguard | Powercir P60NP-S 28"*60W |
| Parameter | Value |
|---|---|
| Battery | Lithium Ion PowerPack 725WH 36V19.2Ah |

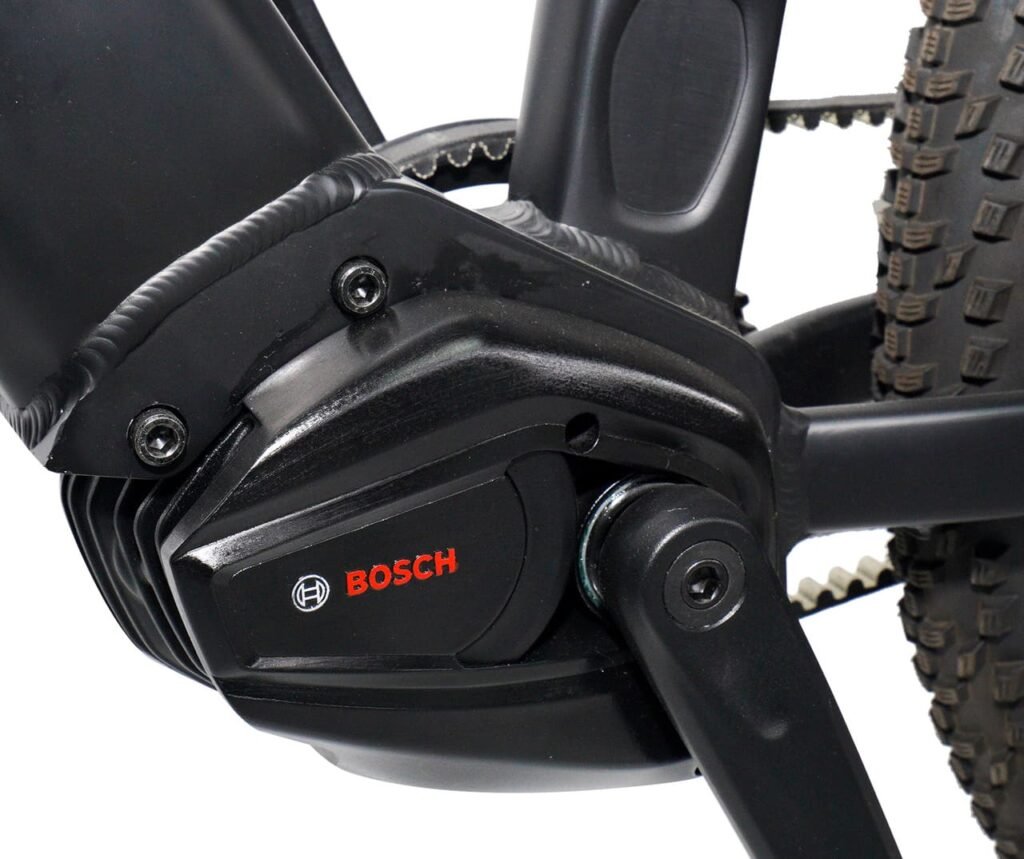

| Motor | Bosch Performance CX 36V 250Watt, 85N.m (Max) |
| Sensor | Bosch Cadence & Torque |

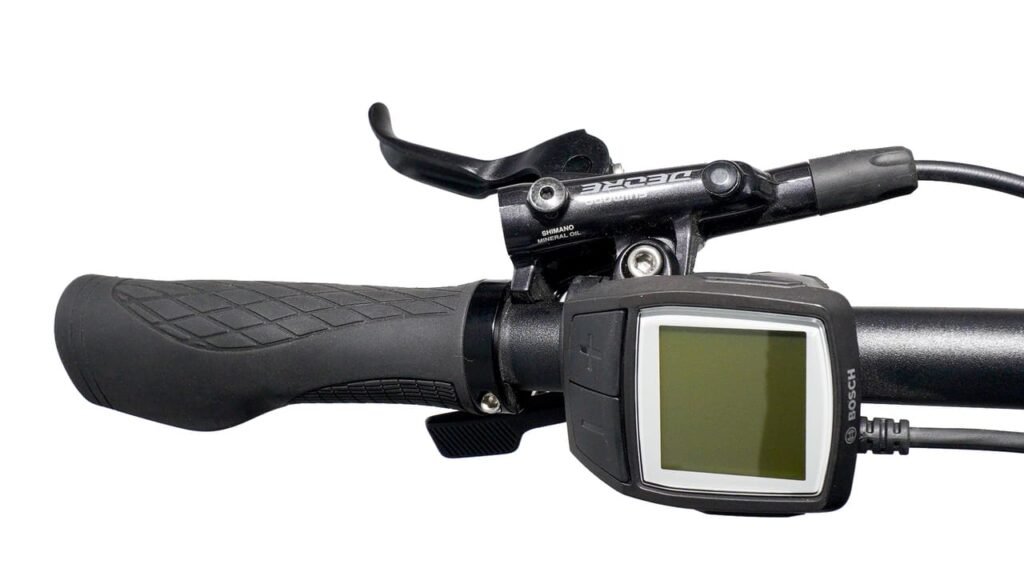

| Display | Purion LCD 36V Eco/Tour/Tour+*/Sport/eMTB**/Turbo, speed limit 25km/h |
| Controller | Bosch Performance CX groupset |
| Throttle | NIL |

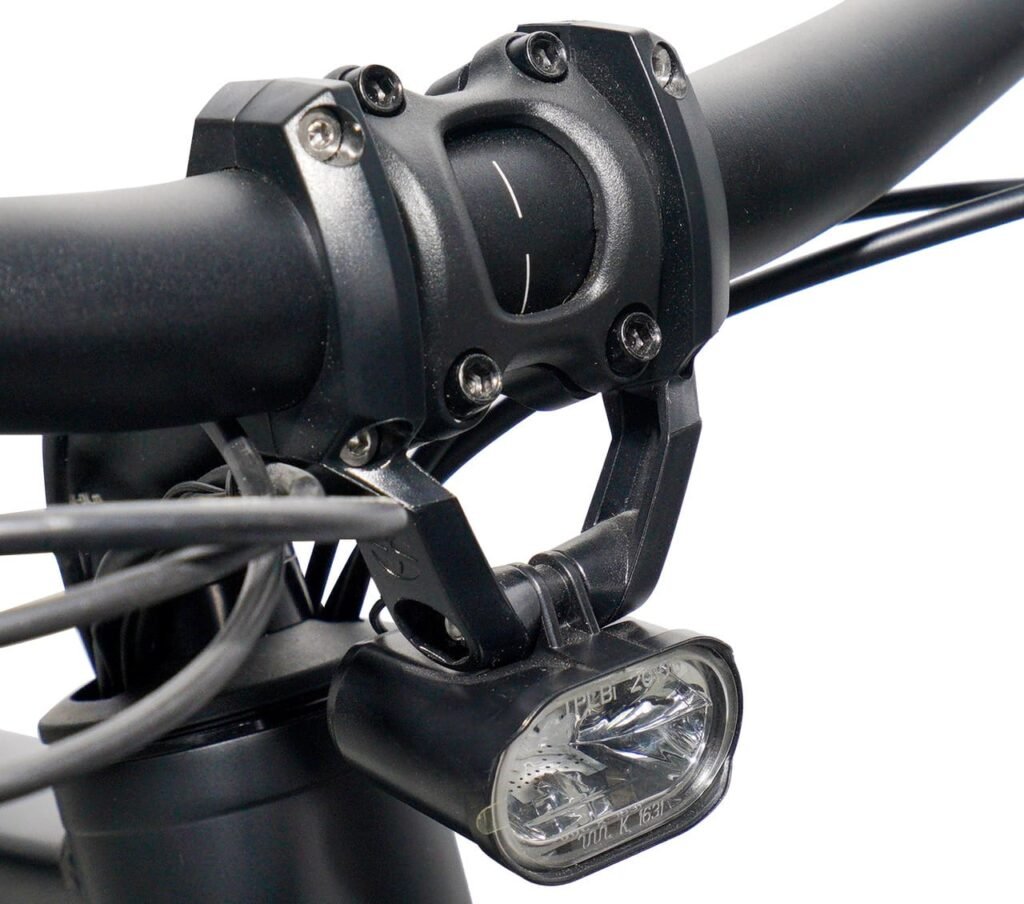

| Lights | Spanninga F: AXENDO 30+ led 30 lux - R: Elips LED lightguide |
| Max Assisted Speed | 25km/h |
| Charging time | 5 hrs |
| Battery Distance | 100 KM |
