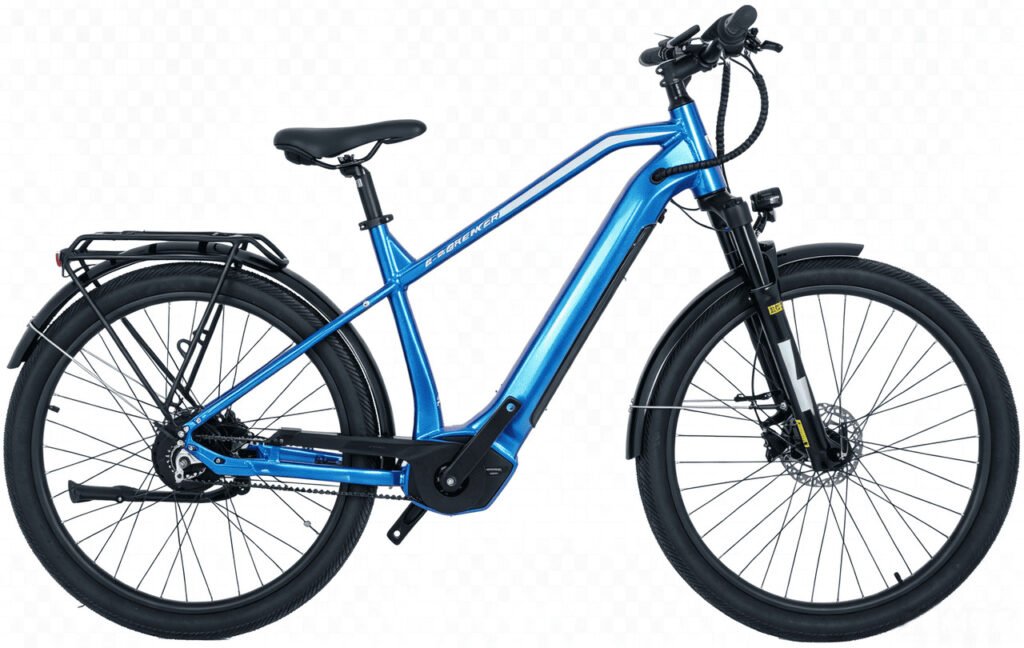

Electric Bike
Model No. ES27.5-01
ES27.5-01
27.5 inch SUV Gents' eBike Enviolo Stepless Internal Gear, 36V250W Motinova Volans mid-motor, 36V20AH Lithium ion battery.
- ■ OEM/ODM customization available
- ■ EN 15194 / UL 2849 / JIS certified options
- ■ Wholesale & private-label programs available
annie@zotec-ev.com
+86 15000722592
Technical Data
Product Specifications
Detailed technical parameters for engineering and procurement reference.
| Parameter | Value |
|---|---|
| Model No. | ES27.5-01 |
| Frame | Aluminium alloy, 27.5'' SUV, Integrated Battery |
| Wheel size | 27.5'' |
| Fork | YISHUO 27.5" 25.4*28.6*197mm Air Suspension, Remote Lockout |
| Handle Bars | Zoom MTB-AL-320BTFOV/ISO-M, φ22.2*φ31.8*6°*W740mm*H20mm |
| Stem | Zoom TDS-D507A-8-FO, comply w/EN Std |
| Rear Shift Lever | Enviolo Stepless Internal Gear Shifter MC-TWIST-DISP-PURE-OE |
| Rear Derailleur | NIL |
| Freewheel/ Cassette | Gates CT1122VMN, 22T cassette |
| Chainwheel/Crank | Gates CT1124SMN 24T |
| Chain | Gates Carbon Belt 11M-111T-12CT BLUE CDX |
| Wheel | Doublestar J23ZK, Aluminium double wall rim 27.5"*2.3-2.6"*36H*13#, A/V |
| Front Hub | Aoyang GL-B91F-B-THRU, 13G*36H |

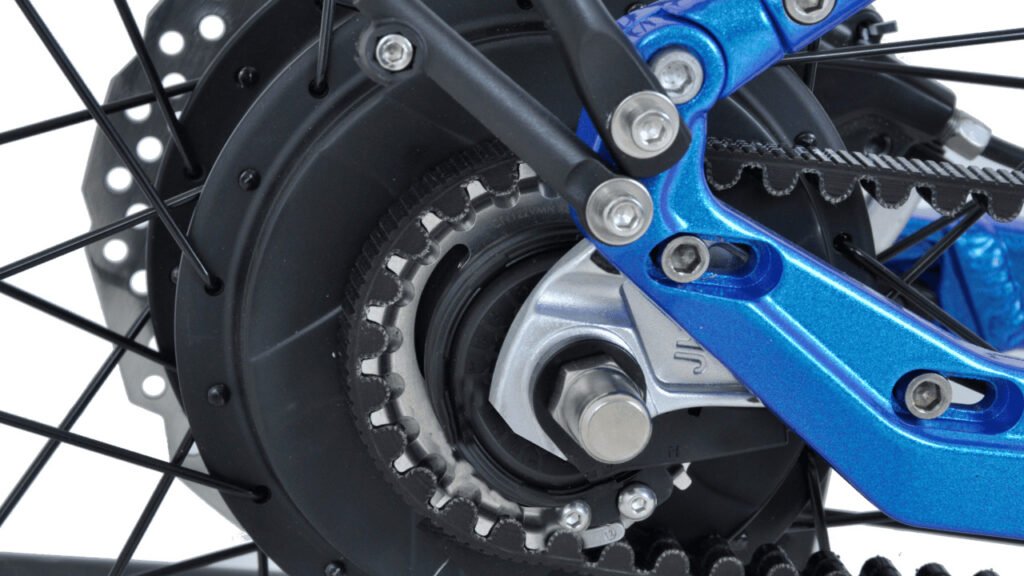

| Rear Hub | Enviolo Stepless Internal Gear13G*36H M10*135*183mm |
| Tyre | Kenda K1052E, 27.5"*2.4, black tyre |
| Front Brake | Shimano MT200 Hydraulic disc brake, rotor 180 |
| Rear Brake | Shimano MT200 Hydraulic disc brake, rotor 203 |
| Grip | S.R. LOOKIN BASIC A200U, black, Ergonomic, comply w/RoHs Std |
| Saddle | Ergonomic, comply w/ROSH STD |
| Seat post | Zoom SPS-405/ISO-C/EN15194, Suspension, comply w/EN Std |
| Pedal | FPD NWL-219 Flat pedals, Aluminum Alloy, 9/16" axle, Black, BS reflector |
| Fender | DH-PC70-27.5, Aluminum Alloy, F/ R: 650mm / 1200mm |
| Chain Cover | Plastic, black |
| Rear Carrier | 700C single layer, Aluminum Alloy, marking w/ ISO11243：2016MAX25KG |
| Reflector | Front- white/ wheel -yellow reflectors, comply w/AS BS CPSC Std |
| Kickstand | Aluminium alloy, adjustable L=265-320mm |
| Parameter | Value |
|---|---|
| Display | LCD Screen/ Motinova CS800, 36V PA 0-3, 1 by default, 27.5'' speed limit 25km/h |
| Assistance Management | 3 levels of assistance |
| Walking Assist | Yes, 6km/h |

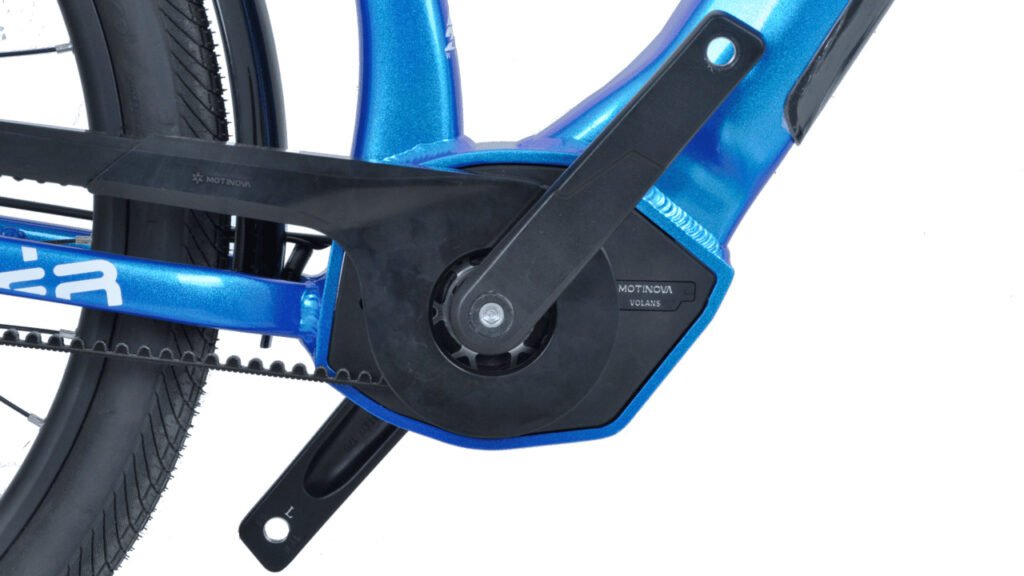

| Engine Brand | Motinova Volans Mid-Drive 27.5'' 36V 250Watt |
| Engine Type | Central Engine |
| Power | 250 W |
| Max Torque | 75N.m / 80N.m |
| Battery | 36V20AH / 720Wh (Samsung 5000mah) |
| Battery Type | Integrated battery |
| Battery Distance | 100 - 125KM |
| Battery Charger | 36V3Ah DC2.1, comply w/EN Std |
| Charging Time | 6-7 hours |
| Battery Lifetime | >500 cycles |
| Controller | Motinova Volans Groupset |
| Pedal Sensor | Torque+Cadence |
| Front Light | Buchel SHINY120 (120LUX 6-48V) - powered by lithium ion battery |
| Rear Light | Buchel Tivoli 6-48V - powered by lithium ion battery |
