Electric Bike
Model No. ER700C-03

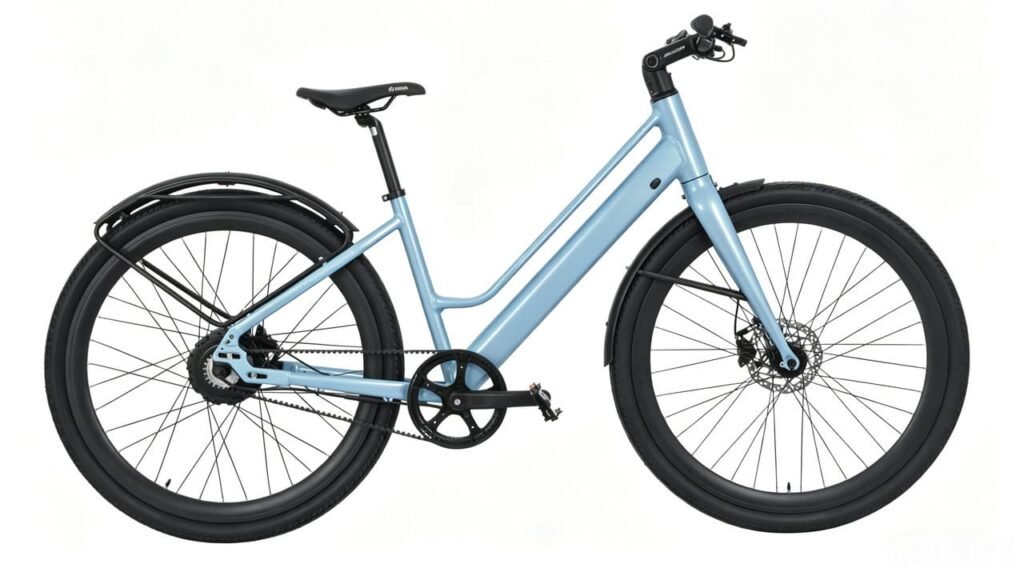

ER700C-03

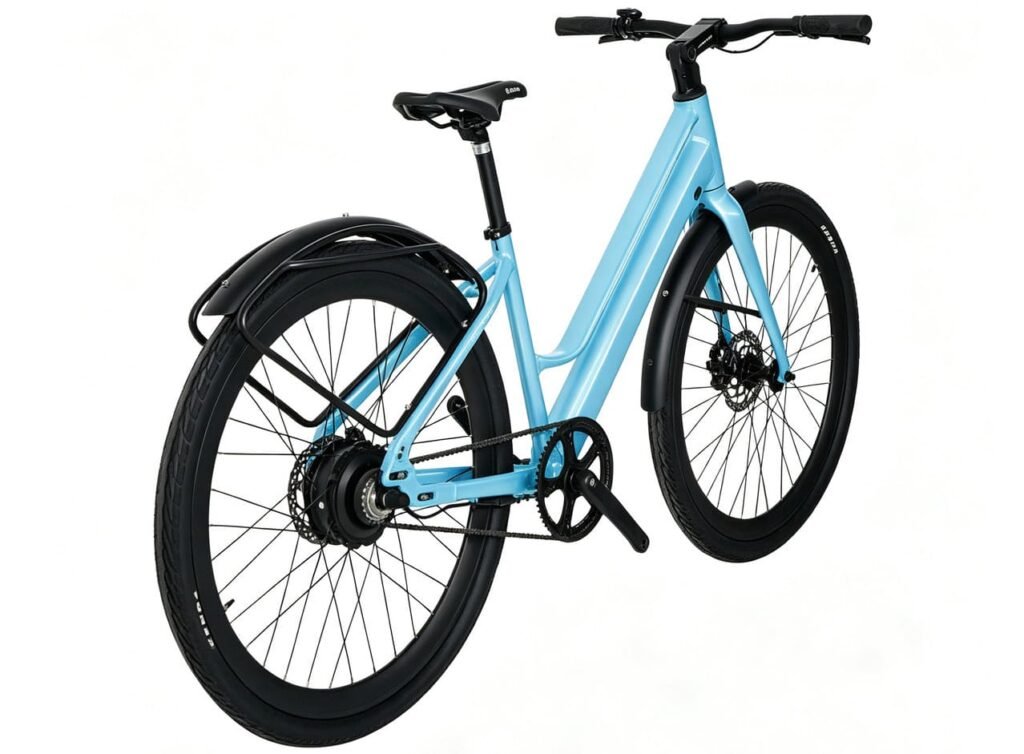

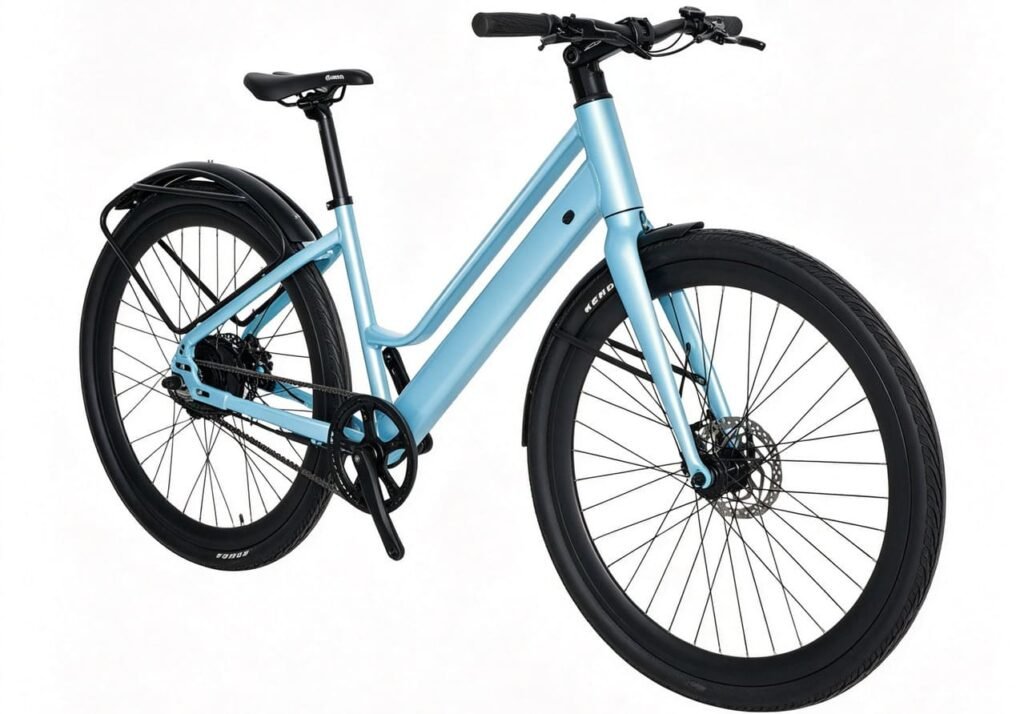

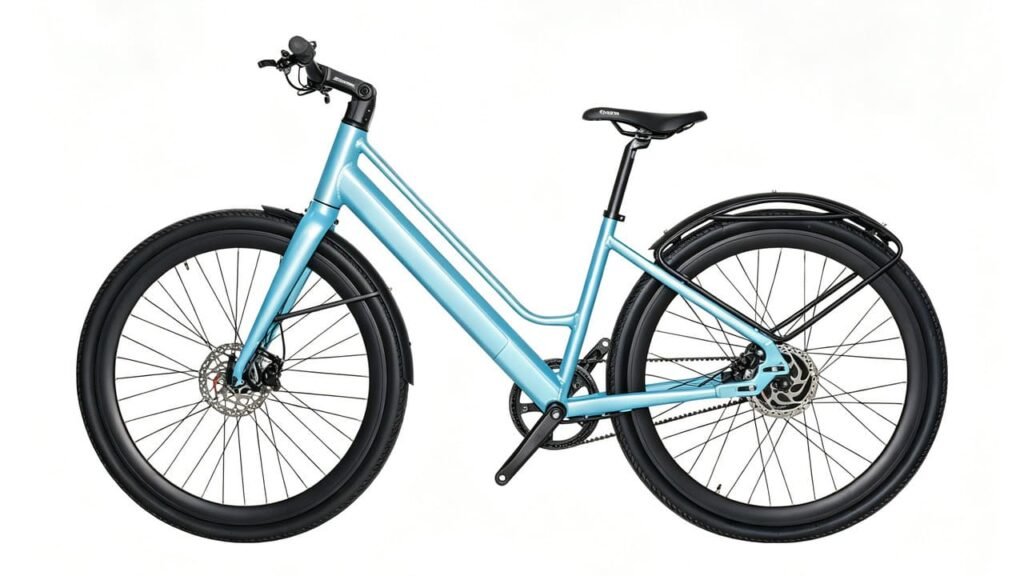

700C Aluminum alloy road eBike, Single Speed, 36V350W, Rear-hub motor, 36V10Ah, Lithium ion battery
- ■ OEM/ODM customization available
- ■ EN 15194 / UL 2849 / JIS certified options
- ■ Wholesale & private-label programs available
annie@zotec-ev.com
+86 15000722592
Technical Data
Product Specifications
Detailed technical parameters for engineering and procurement reference.
| Parameter | Value |
|---|---|
| Model No. | ER700C-03 |
| Frame | Alu 700C, integrated battery, custom tubing, internal routing |
| Fork | Alu 700C rigid fork, disc brake mount |
| Headset | Gineyea T196, semi-integrated, 1-1/8"/1.5" |

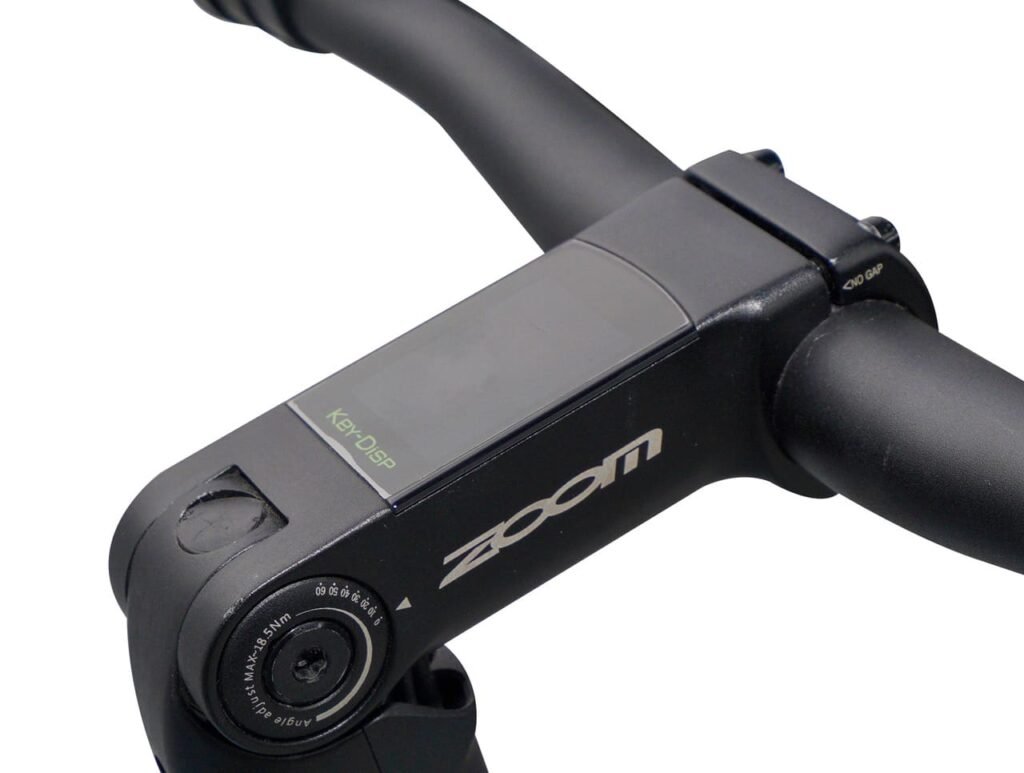

| Stem | Key-Disp KD786-S integrated w/ display |
| Handle Bars | Zoom MTB-AL-320BTFOV/ISO-M rise 20mm, 6°, 700mm, comply w/EN Std |
| Grips | Velo VLG-1670AD3-L1, 130/130, comply w/PAHS Std |
| Brakes | Shimano MT200, Hydraulic Disc Brake, 2 Pistons, Rotor 160/160 |
| Shift Levers | NIL |
| Rear Derailleur | NIL |
| Hubs | Joytech D761DSE/ R: Shengyi Hub Motor |
| Cassette | Gates CDCRFW22, CDC CT1122WSE 22T |
| Chain | Gates CDNB122 11M-125T-12CT BLACK CDN |

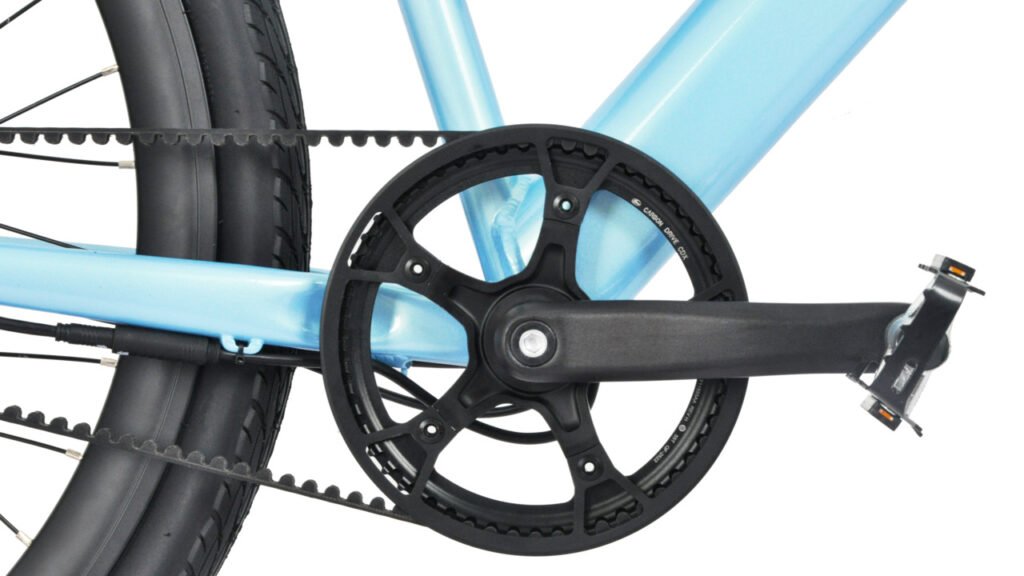

| Crankset | Gates CDXF555 55T BCD: 130mm Alloy crank |
| Pedals | Hengfeng HF-858, 9/16"100*86, Alu Ed black w/BS reflector |
| Rims | Stars J19KA, 700C/13G*36H/ A/V |
| Tyres | Kenda K1068, 700C*45C black tyre |
| Saddle | Justek TTZ003/3D, 165x280mm black, Ergonomic, comply w/RoHs Std |
| Seat Post | Zoom SP-C207/ISO-M alu, 27.2*300, comply w/EN Std |
| Mudguard | Powercir P54NP-S 28"*55W |
| Carrier | Alu, without brackets |
| Parameter | Value |
|---|---|
| Battery | Lithium Ion 360WH 36V10Ah BAK 5000mah cell, 2P10S 21700 |

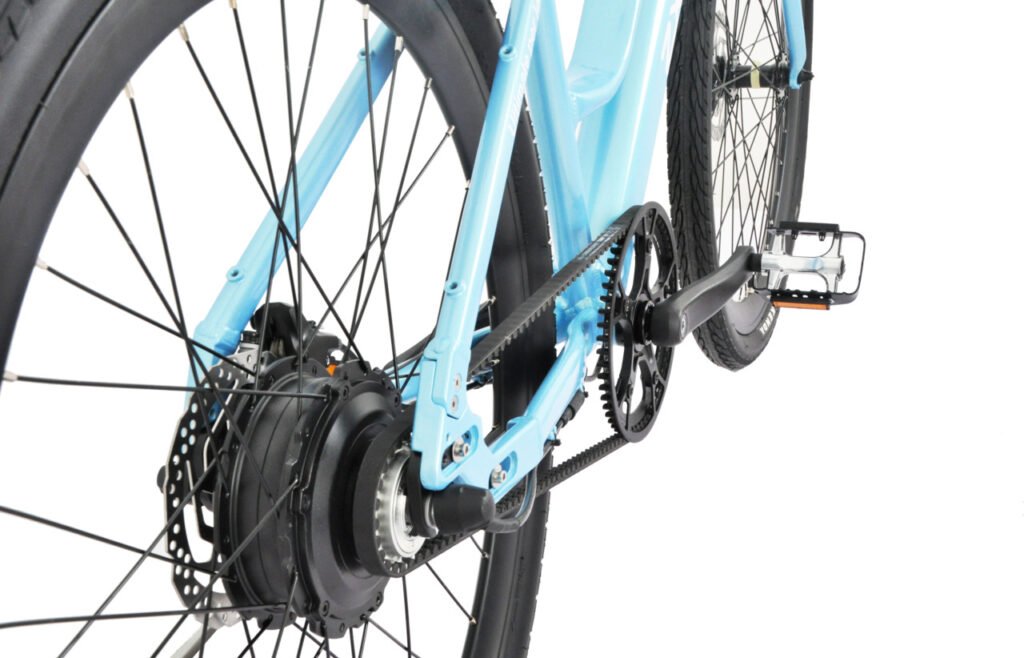

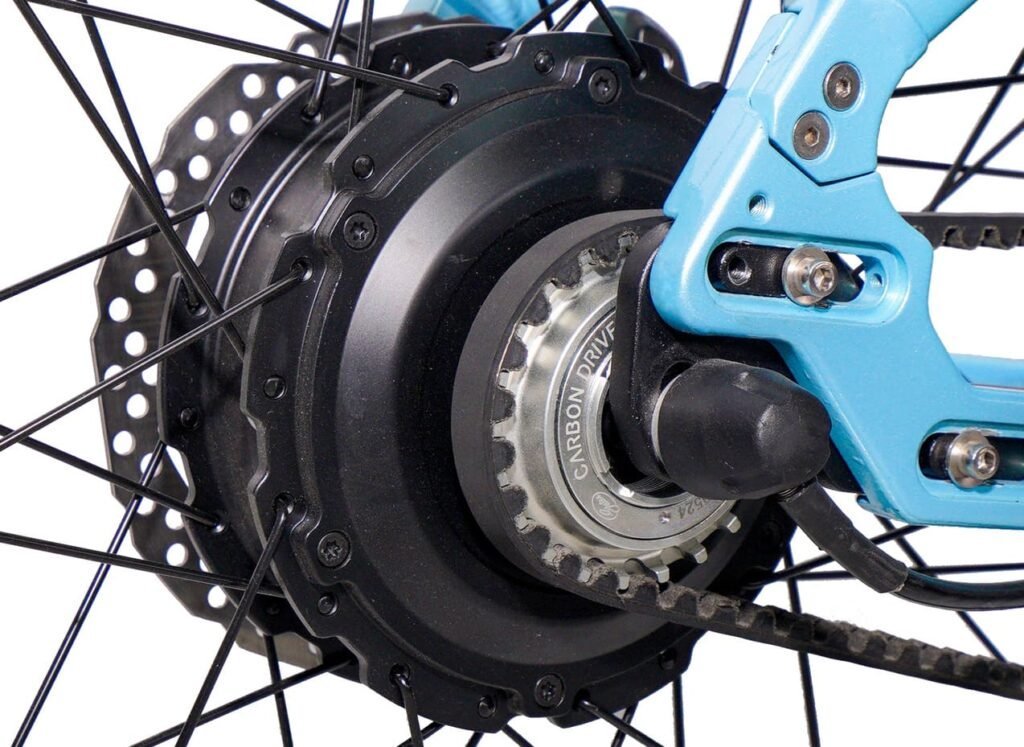

| Motor | Shengyi Rear-Hub Motor 36V 350Watt, 48N.m (Max) |
| Sensor | LDS BBTS1PSD Torque |
| Display | Key-Disp integrated w/stem LCD 36V PA 0-5, speed limit 32km/h |
| Controller | Lishui 36V14A |
| Throttle | NIL |
| Lights | NIL |
| Max Assisted Speed | 32km/h |
| Charging time | 5 hrs |
| Battery Distance | 55-60 KM |
