Electric Bike
Model No. ER700C-02
ER700C-02

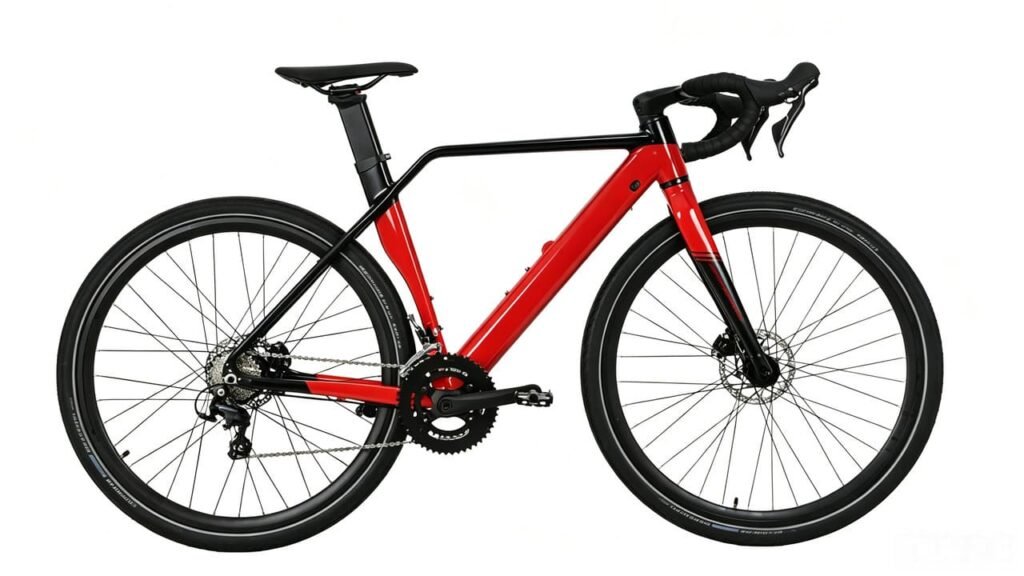

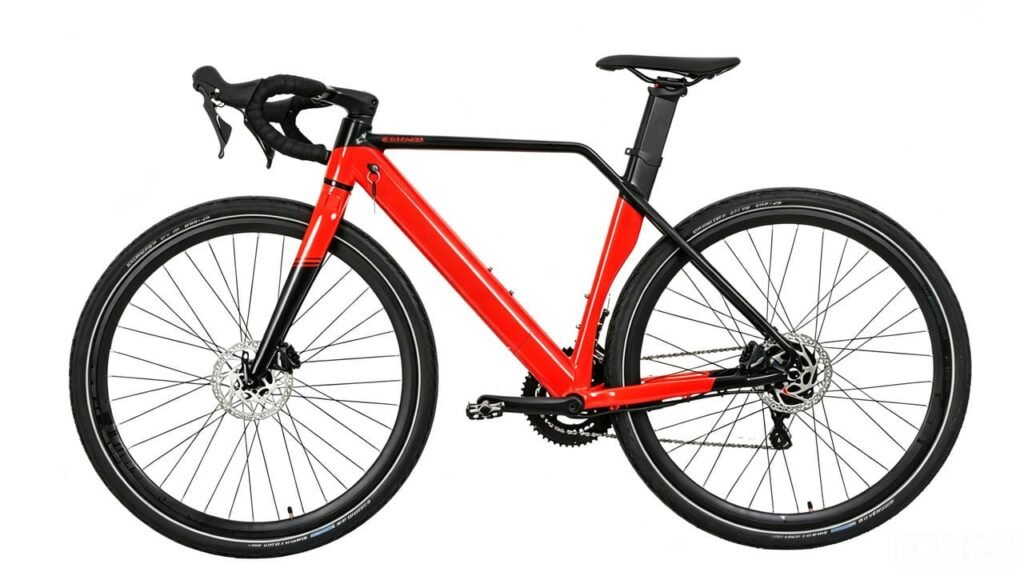

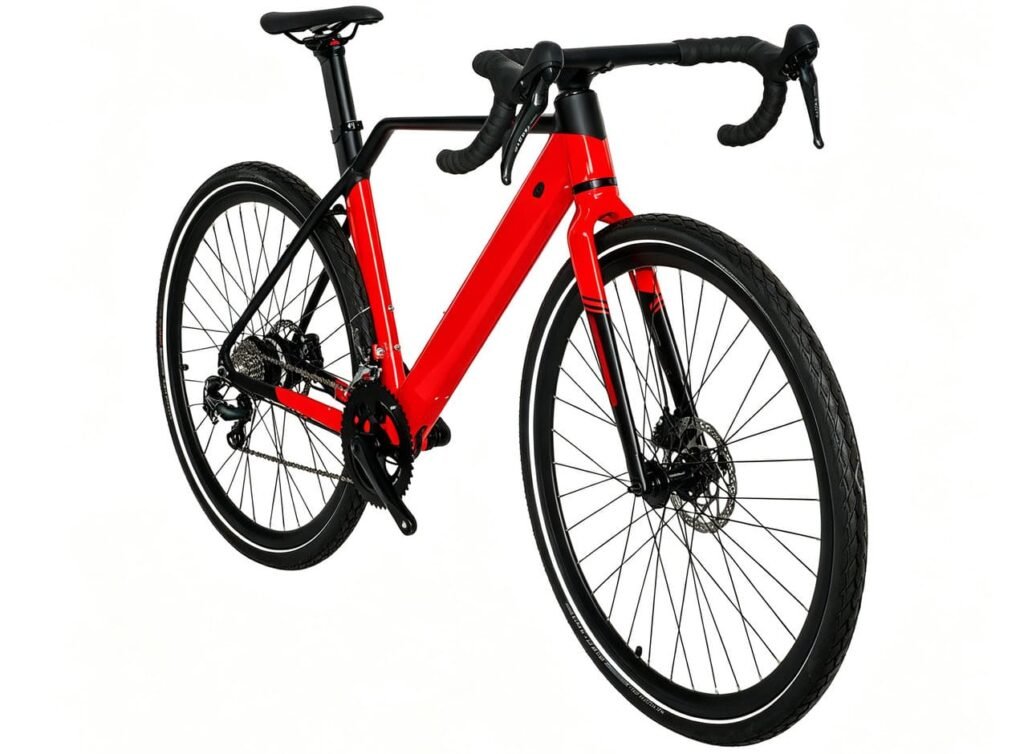

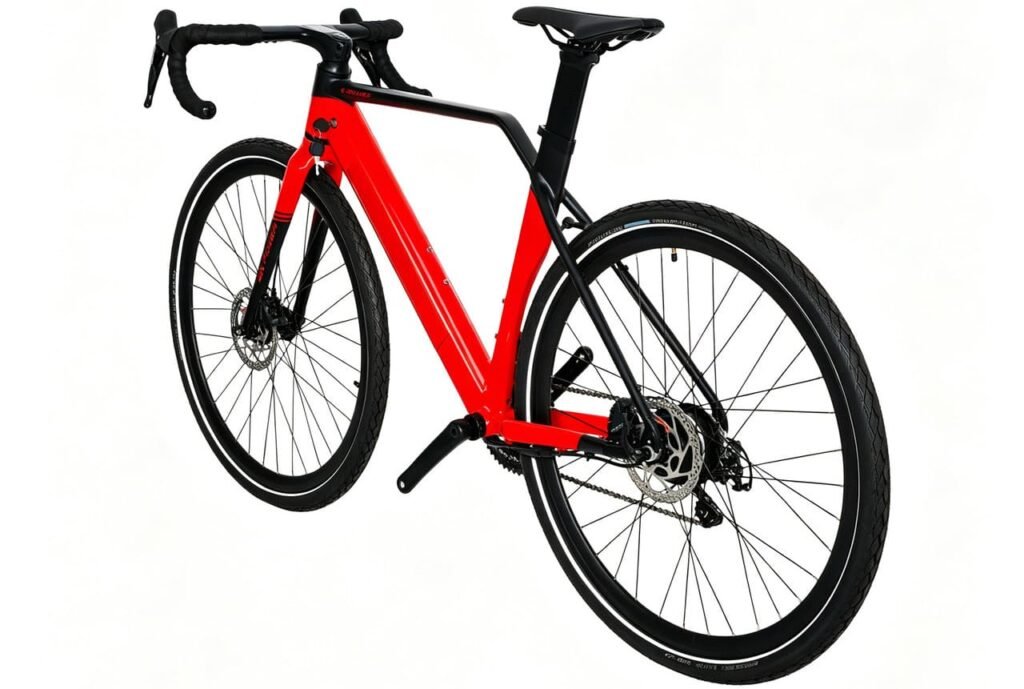

700C Aluminum alloy road eBike, Shimano 20 Speed, 36V250W, Rear-hub motor, 36V10Ah, Lithium ion battery
- ■ OEM/ODM customization available
- ■ EN 15194 / UL 2849 / JIS certified options
- ■ Wholesale & private-label programs available
annie@zotec-ev.com
+86 15000722592
Technical Data
Product Specifications
Detailed technical parameters for engineering and procurement reference.
| Parameter | Value |
|---|---|
| Model No. | ER700C-02 |
| Frame | Alu 700C, integrated battery, custom tubing, internal routing |
| Fork | Alu 700C rigid fork, disc brake mount |
| Headset | FSA NO.69, semi-integrated, 1-1/8"/1.5" |
| Stem | Mogubro M16 integrated w/handlebar and display |

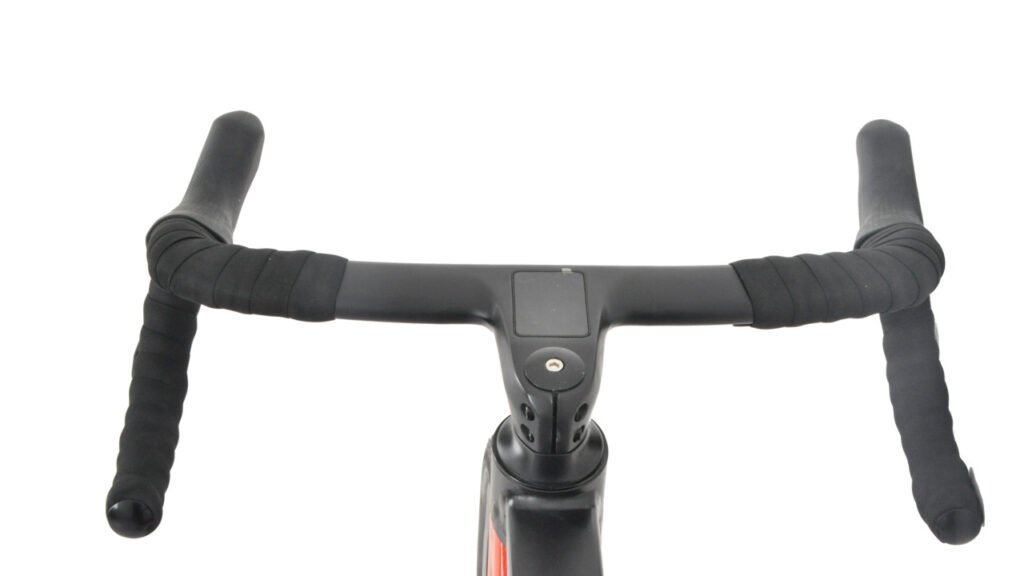

| Handle Bars | Mogubro M16 integrated w/stem and display |
| Grips | Velo VLT-7116, wrap grips, comply w/PAHS Std |

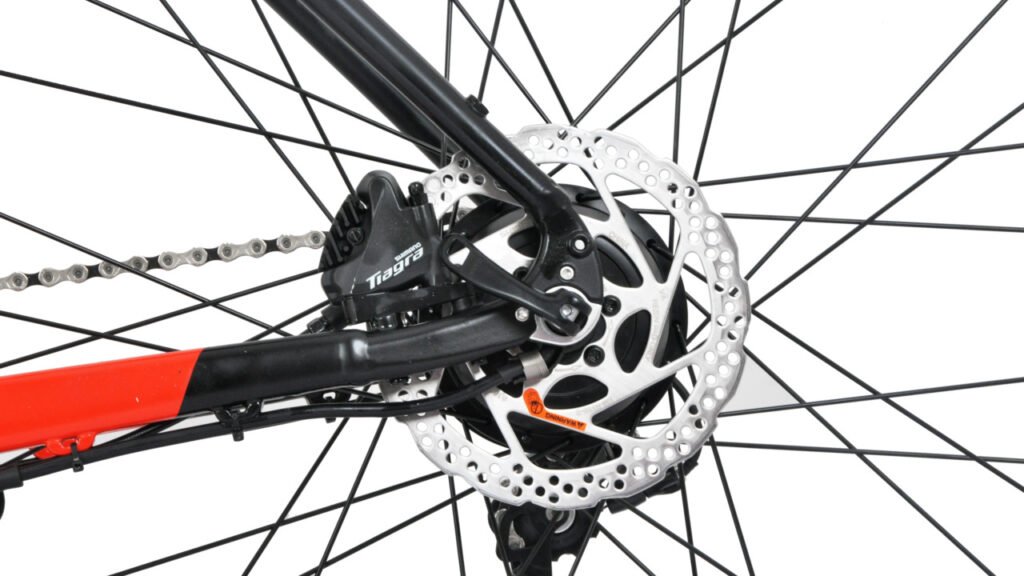

| Brakes | Shimano Tiagra BR-4770(F) integrated ST-4720(L), Disc Brake, Rotor 160/160 |
| Shift Levers | Shimano Tiagra ST-4720(L)/ BR-4770(F); R: Tiagra ST-4720(R)/ BR-4770(R) |

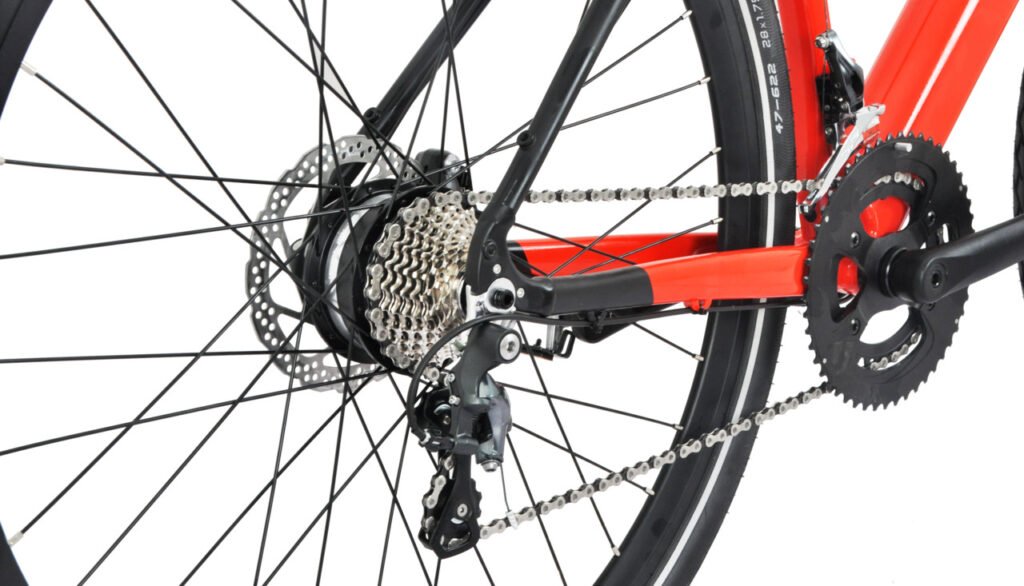

| Derailleur | Shimano Tiagra F: FD-4700, 2s; R: RD-4700, 10s |
| Hubs | Kunteng KT-SR6F/ R: Shengyi Hub Motor |
| Cassette | Shimano CS-HG500-10, 10s, 11-25T |
| Chain | KMC X10 106L 10s |
| Crankset | Prowheel OUNCE-621C-N, 2s 34T*50T Alloy crank |
| Pedals | Wellgo R296RB, Cr-Mo axle 9/16", Alu Ed black w/BS reflector |
| Rims | Stars J14DB, 29''/13G*36H/ A/V |
| Tyres | Schwalbe HS 476, Smart Sam, 28"X1.75" black tyre w/reflective sidewall |
| Saddle | S.R. SETA-1286HRN, 278x144mm black, Ergonomic, comply w/RoHs Std |
| Seat Post | Mogubro C11 alu, 27.2x360mm, integrated w/Taillight, comply w/EN Std |
| Parameter | Value |
|---|---|
| Battery | Lithium Ion 360WH 36V10Ah Samsung 5E 5000mah cell, 2P10S 21700 |
| Motor | Shengyi Rear-Hub Motor DGW100 36V 250Watt, 40N.m (Max) |
| Sensor | LDS BBTS1PSD Torque |
| Display | Mogubro M16 integrated w/handlebar and stem LCD 36V PA 0-5, speed limit 25km/h |
| Controller | Lishui 36V14A |
| Throttle | NIL |
| Max Assisted Speed | 25km/h |
| Charging time | 5 hrs |
| Battery Distance | 45-50 KM |
