Electric Bike
Model No. ER700C-01
ER700C-01

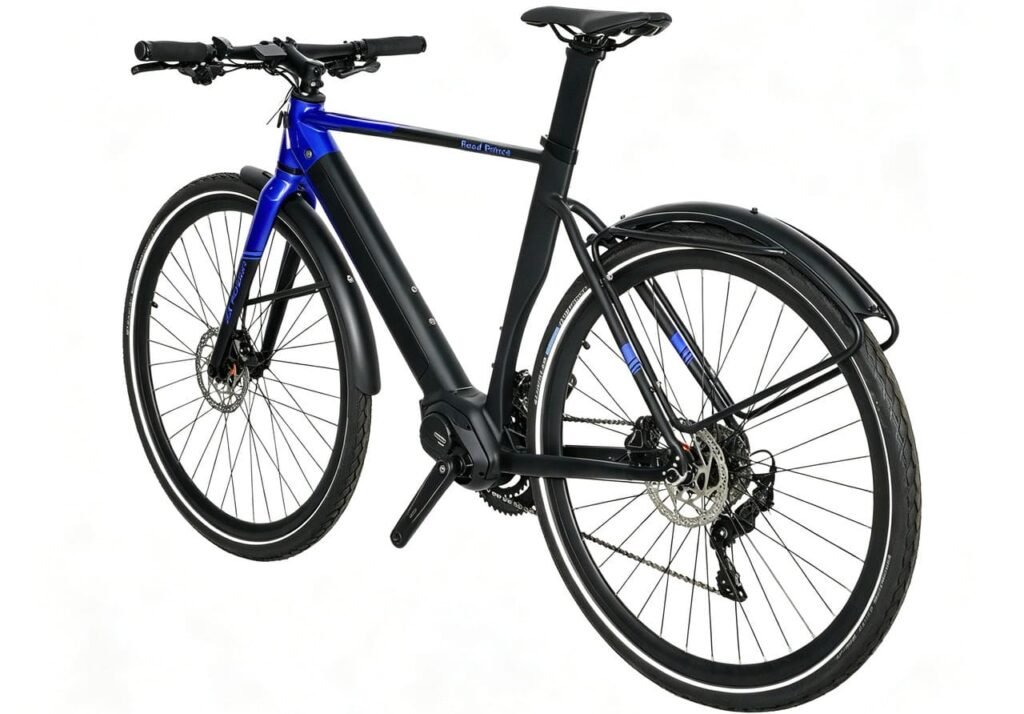

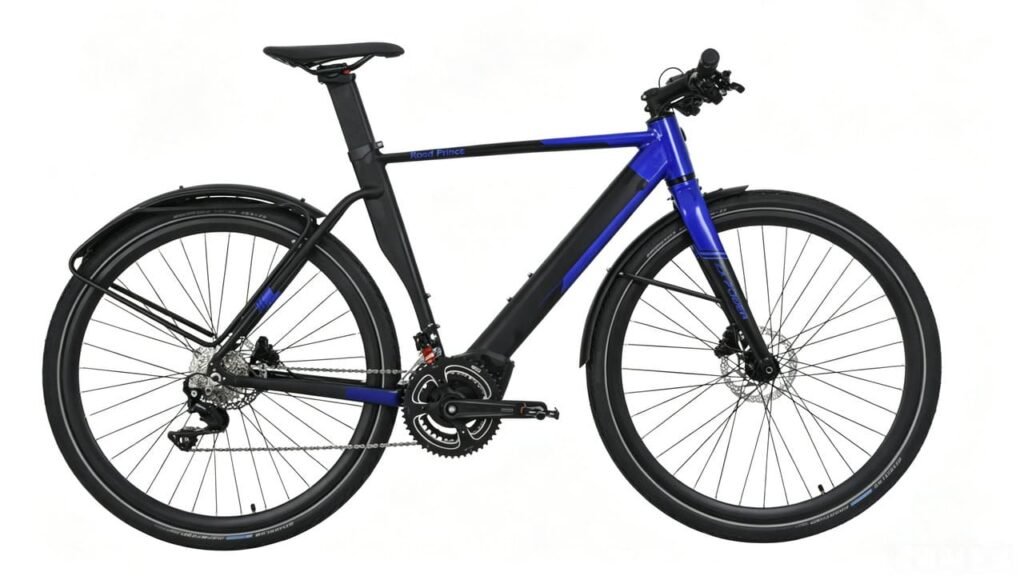

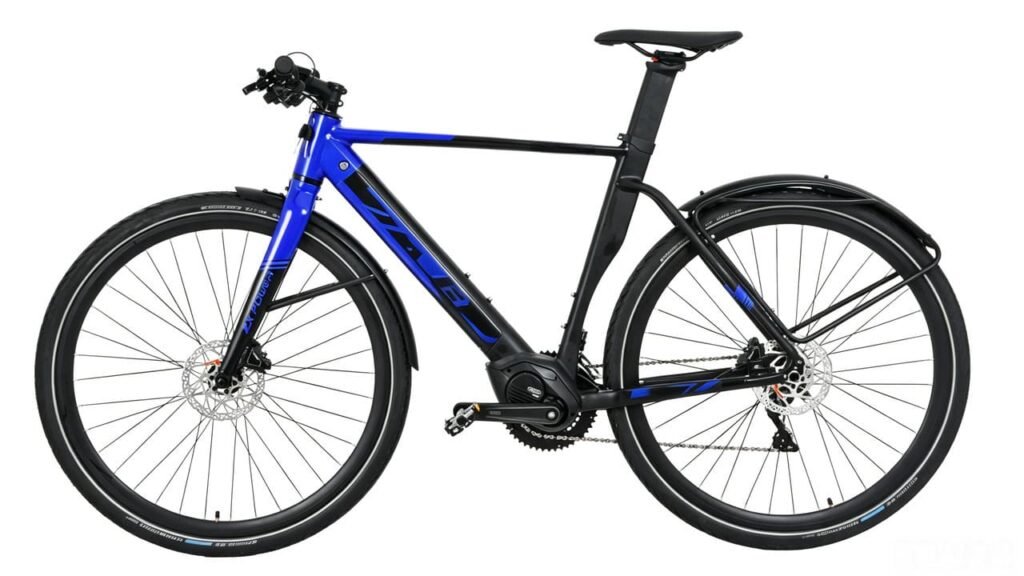

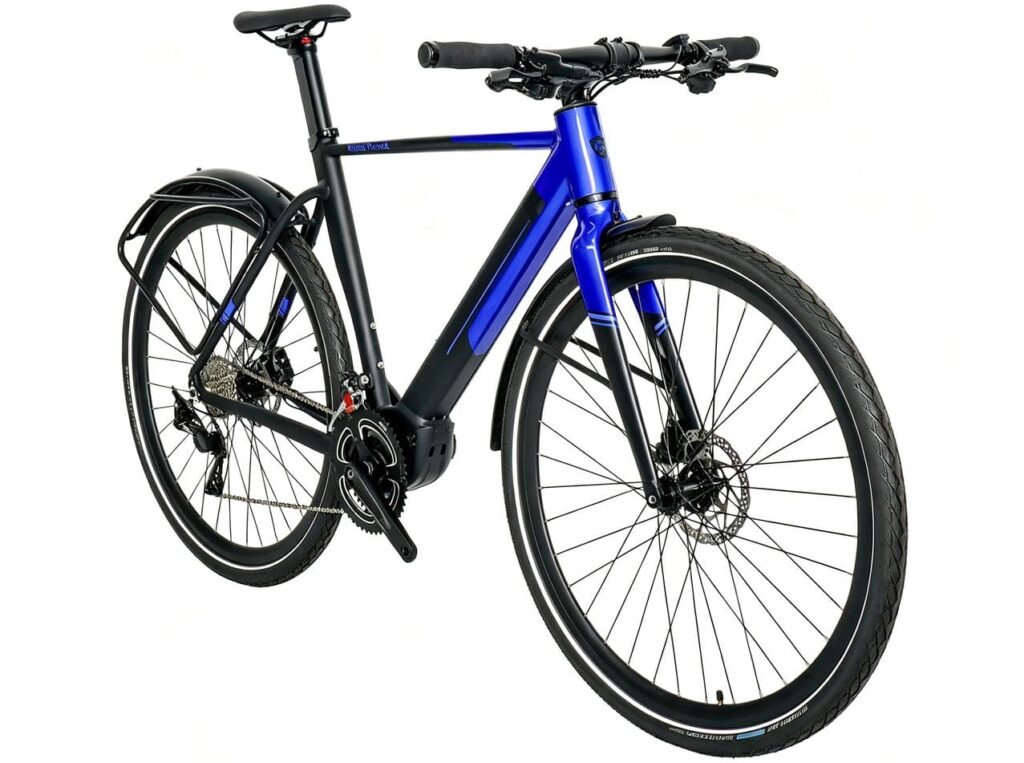

700C Aluminum alloy road eBike, Shimano 22 Speed, 36V200W, Bafang M820 mid-motor, 36V10Ah, Lithium ion battery
- ■ OEM/ODM customization available
- ■ EN 15194 / UL 2849 / JIS certified options
- ■ Wholesale & private-label programs available
annie@zotec-ev.com
+86 15000722592
Technical Data
Product Specifications
Detailed technical parameters for engineering and procurement reference.
| Parameter | Value |
|---|---|
| Model No. | ER700C-01 |
| Frame | Alu 700C, integrated battery, custom tubing, internal routing |
| Fork | Alu 700C rigid fork, disc brake mount |
| Headset | FSA NO.69, semi-integrated, 1-1/8"/1.5" |
| Stem | Promax Alu RA-204 ext 90mm -10°, 38H |

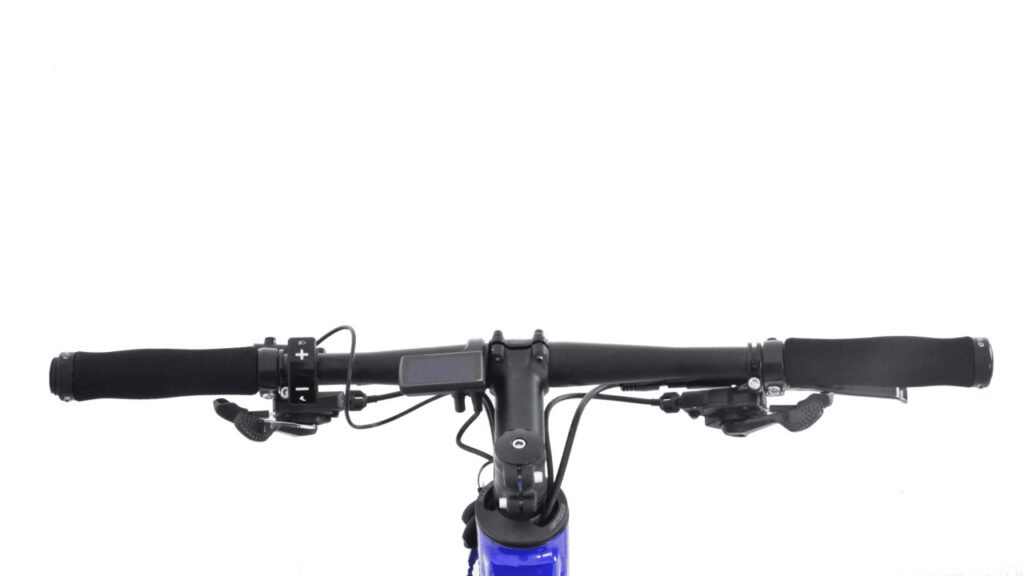

| Handle Bars | Promax HB-3018, rise 22.2mm, 0°, 620mm, comply w/EN Std |
| Grips | Velo VLG-1721, 131mm, Hard plastic/ Gel black (A25), comply w/PAHS Std |

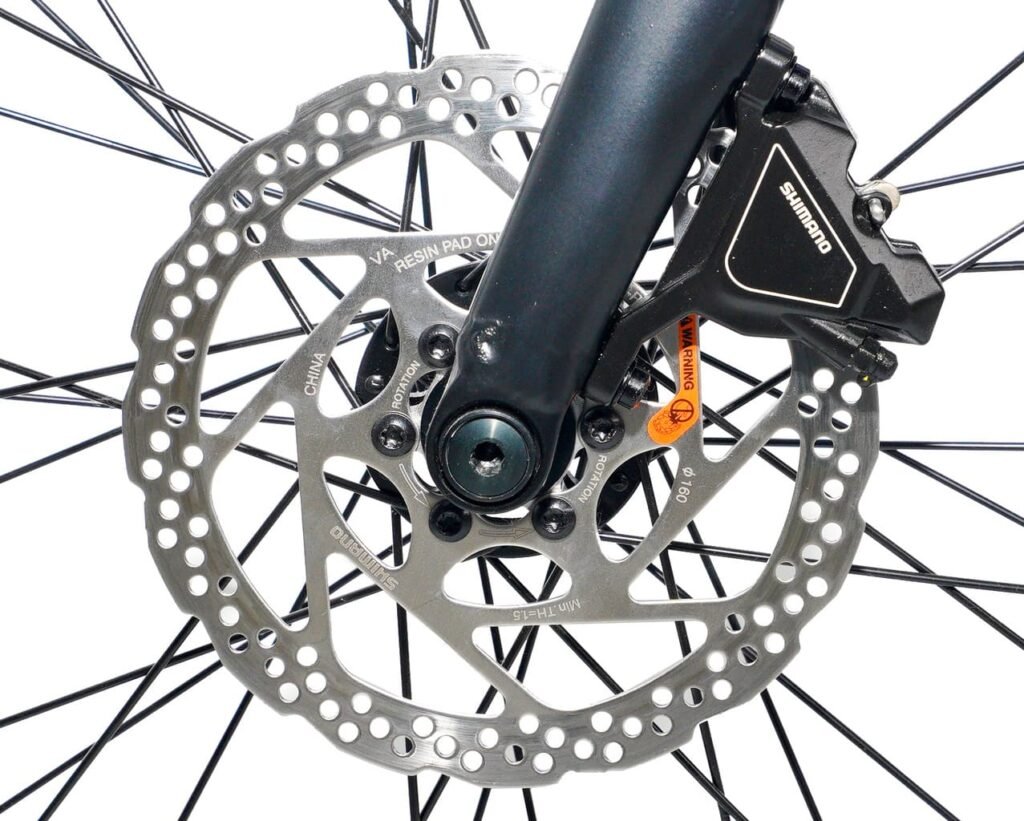

| Brakes | Shimano MT200, Hydraulic Disc Brake, 2 Pistons, Rotor 160/160 |
| Shift Levers | Shimano F: SL-RS700-L, 2s Rapidfire plus; R: SL-RS700-R, 11s Rapidfire plus |

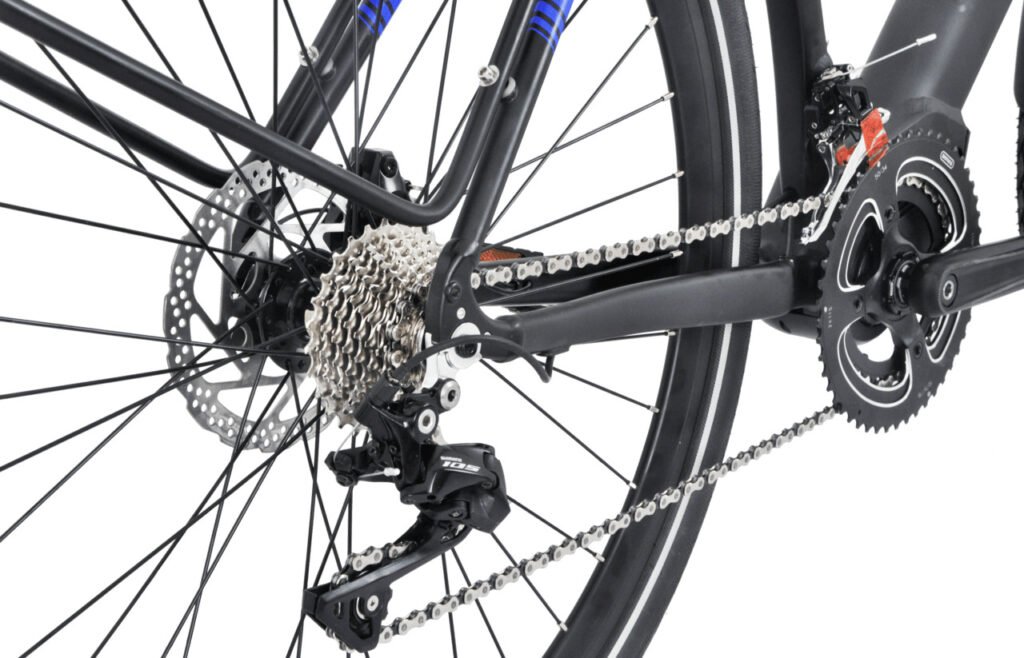

| Derailleurs | Shimano 105 F: FD-R7000-L105, 2s; R: RD-R7000 105, 11s |
| Hub | Kunteng KT-XF1F/ KT-XF4R 2 bearings, 36H |

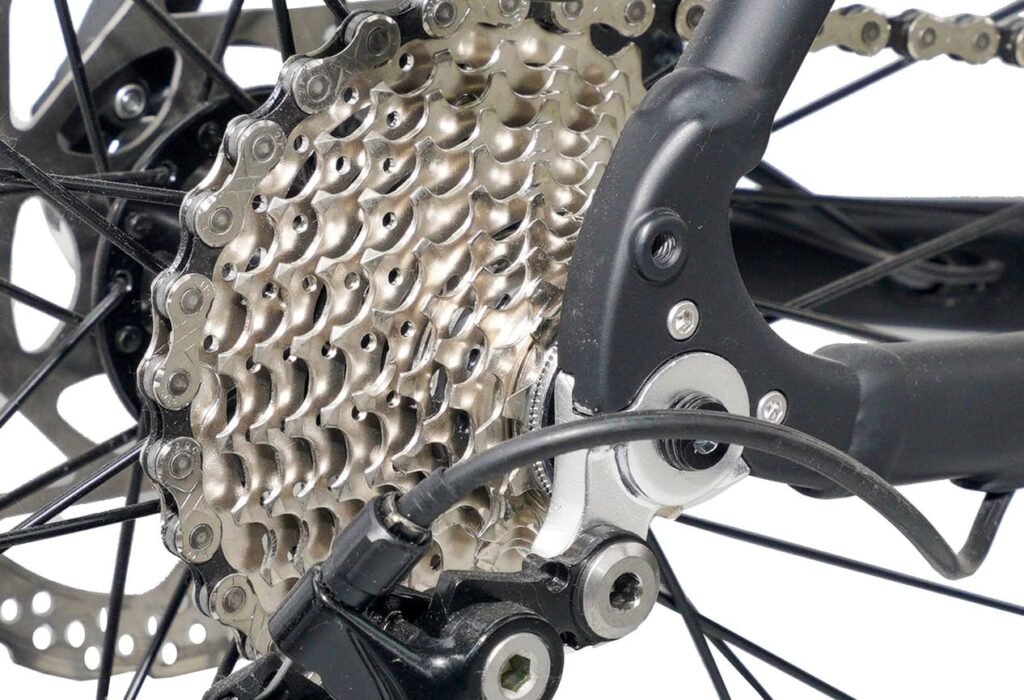

| Cassette | Shimano 105 CS-R7000, 11s, 11-28T |
| Chain | KMC E11 Turbo 120L 11s |
| Crankset | Bafang CW G532.2A, 2s 34T*50T Alloy crank |
| Pedals | Wellgo R296RB, Cr-Mo axle 9/16", Alu Ed black w/BS reflector |
| Rims | Stars, double wall rim, 29''/13G*36H/ A/V |
| Tyres | Schwalbe HS 476, Smart Sam, 28"X1.75" black tyre w/reflective sidewall |
| Saddle | S.R. SETA-1286HRN, 278x144mm black, Ergonomic, comply w/RoHs Std |
| Seat Post | Mogubro C11 alu, 27.2x360mm, integrated w/Taillight, comply w/EN Std |
| Mudguard | Powercir P60NP-S 28"*60W |
| Carrier | Alu, without brackets |
| Parameter | Value |
|---|---|
| Battery | Lithium Ion 360WH 36V10Ah Samsung 5E 5000mah cell, 2P10S 21700 |

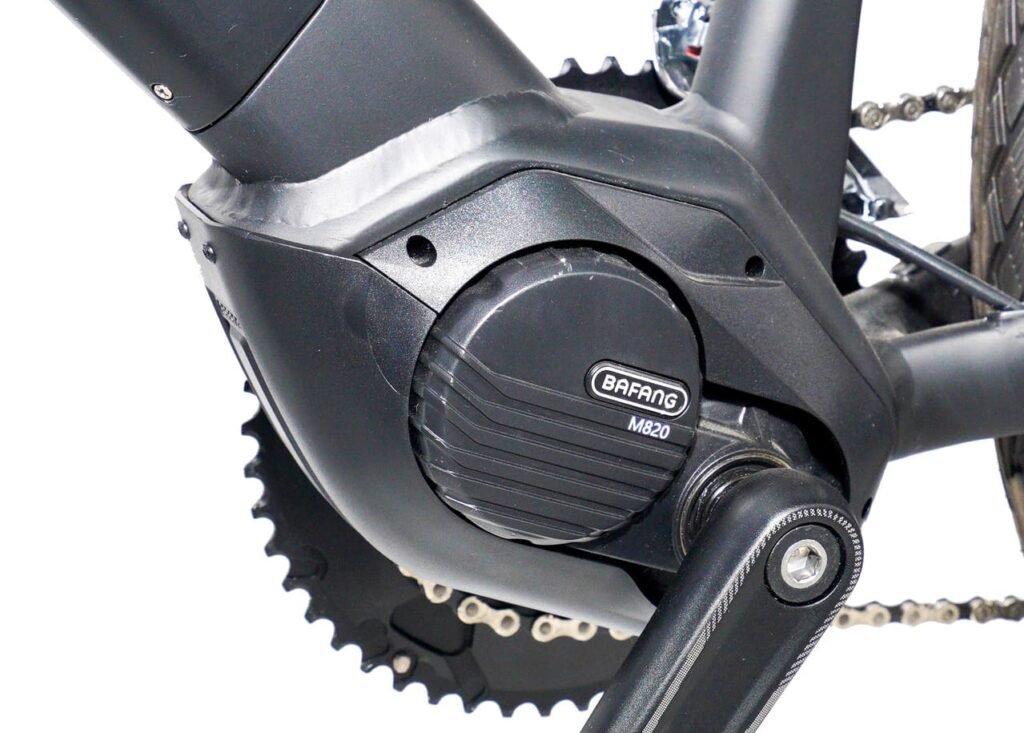

| Motor | Bafang M820 36V 200Watt, 75N.m (Max) |
| Sensor | Bafang Cadence & Torque |
| Display | Bafang DP C263.CAN LCD 36V PA 0-5, speed limit 25km/h |
| Controller | Bafang groupset |
| Throttle | NIL |
| Lights | Spanninga F: AXENDO 30+ led 30 lux; R: Tailight integrated w/seat post |
| Max Assisted Speed | 25km/h |
| Charging time | 5 hrs |
| Battery Distance | 45-50 KM |
