Electric Bike
Model No. EM29-05
EM29-05
29 inch alloy dual suspension mountain eBike, Shimano 10 speed, 36V250W Bafang mid-drive motor, 36V25Ah Lithium ion battery
- ■ OEM/ODM customization available
- ■ EN 15194 / UL 2849 / JIS certified options
- ■ Wholesale & private-label programs available
annie@zotec-ev.com
+86 15000722592
Technical Data
Product Specifications
Detailed technical parameters for engineering and procurement reference.
| Parameter | Value |
|---|---|
| Model No. | EM29-05 |
| Frame | Alu 29, integrated battery, custom tubing, internal routing |
| Fork | Suntour SF21-MOBIE-A32, 63mm, through axle, Mechanical Lockout |

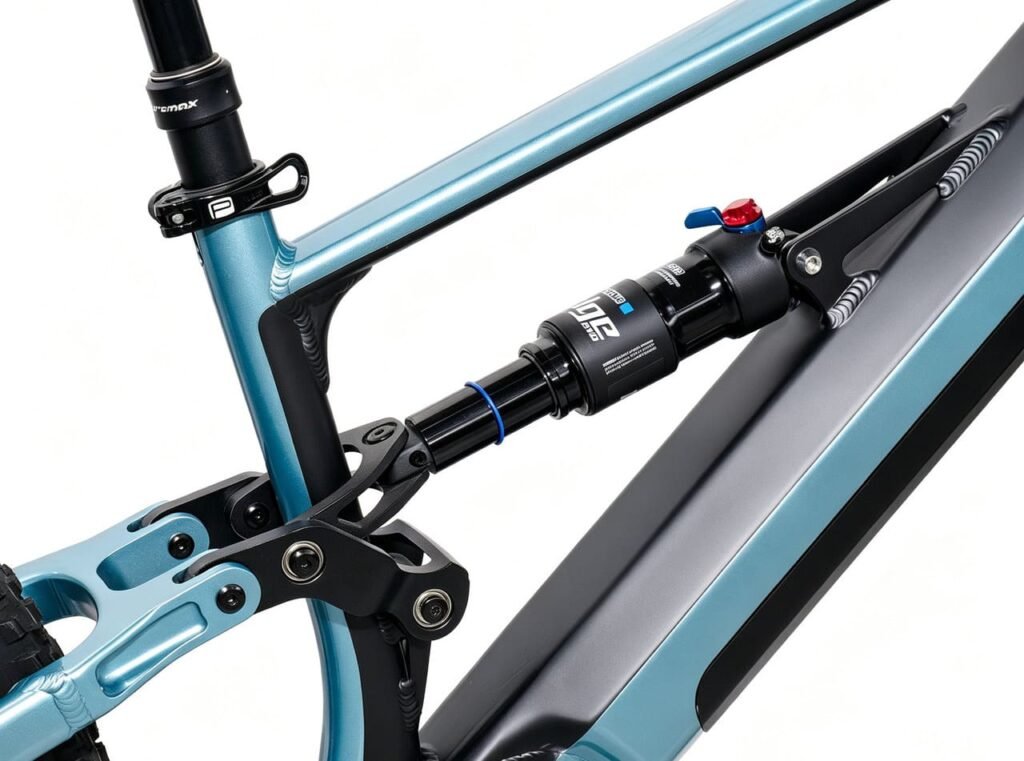

| Rear Shock | Exaform KS291-KS, coil spring hydraulic, 190*x50mm |
| Headset | FSA NO.69, semi-integrated, 1-1/8"/1.5" |
| Stem | Integrated w/ Handlebars |
| Handle Bars | Mogubro M13 integrated w/LCD display, ext 80mm, 9°, 720mm, comply w/EN Std |
| Grips | Velo VLG-1745AD3, 130mm, Hard plastic/ Gel black (A25), comply w/PAHS Std |
| Brakes | Shimano MT200, Hydraulic Disc Brake, 2 Pistons, Rotor 180/180 |
| Shift Lever | Shimano Deore SL-M4100, Papidfire-plus 10s |
| Rear Derailleur | Shimano Deore RD-M4120, SGS, Shadow 10s |
| Hubs | Kunteng KT-MF1F/ KT-M4TR 2 bearings, thru-axle KT-204B, 36H |
| Cassette | Shimano CS-M4100-10, 10s 11/42 |
| Chain | KMC E10 TURBO-10, 124L 10s |

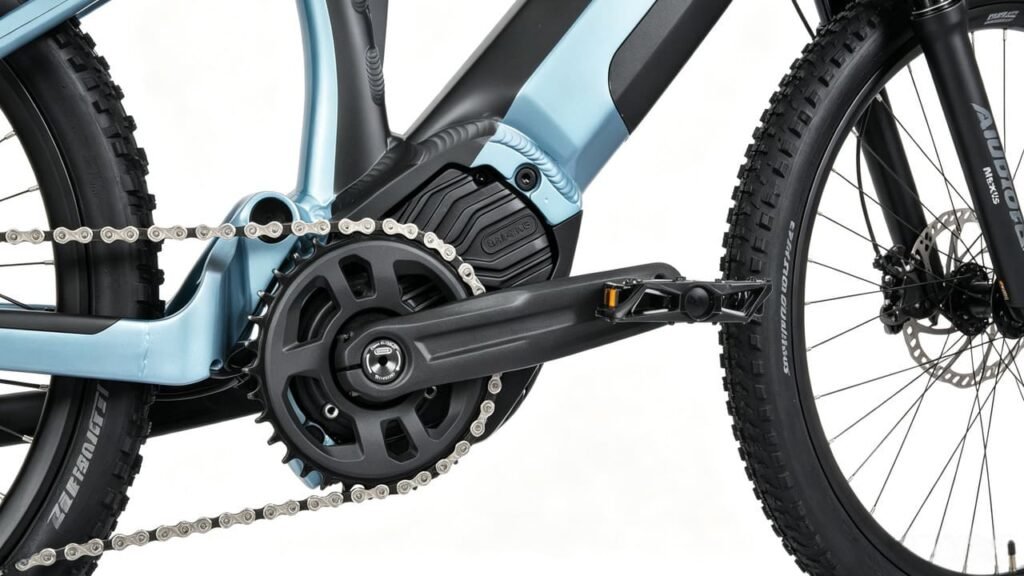

| Crankset | Bafang CW G522.1B, 38T Alloy crank |
| Pedals | Wellgo B249DU, Alloy, 9/16"100*86, Alu Ed black w/BS reflector |
| Rims | Stars J25D, 700C/13G*36H/ A/V |
| Tyres | Maxxis M362P 29"X2.4"WT(M362P) 61-622 black tyre |
| Saddle | S.R. MACH 2-A008URO, 264x140mm black, Ergonomic, comply w/RoHs Std |
| Seat Post | Promax SP-2059 alu, suspended 125mm, 30.9x360mm, comply w/EN Std |
| Parameter | Value |
|---|---|
| Battery | Lithium Ion 900WH 36V25Ah Samsung E5 5000mah cell, 5P10S 21700 |

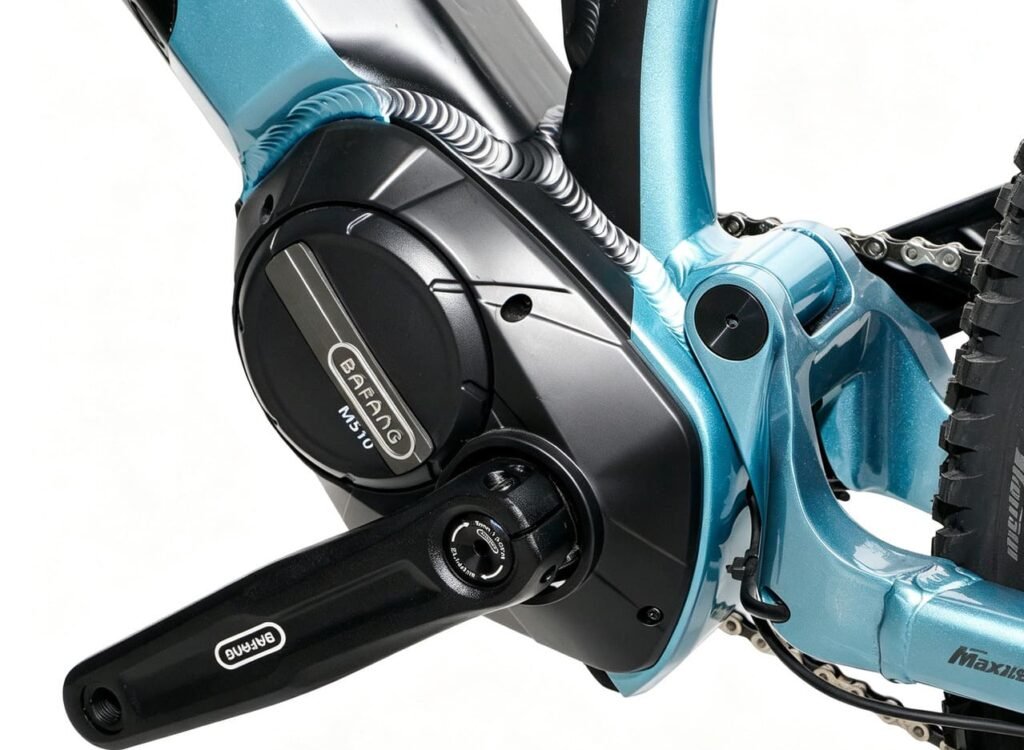

| Motor | Bafang M510 36V 250Watt, 95N.m (Max) |
| Sensor | Bafang Cadence & Torque |

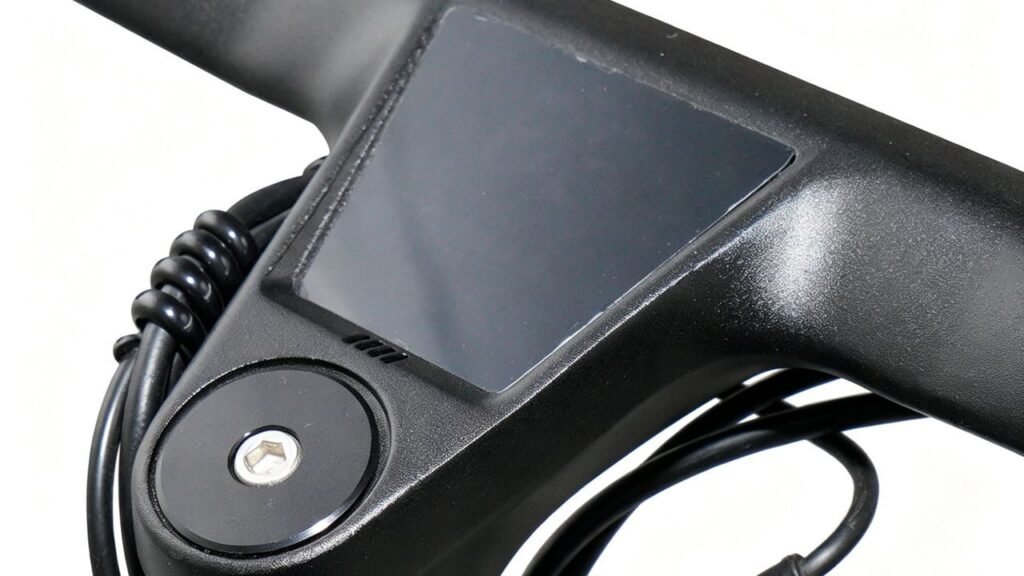

| Display | Mogubro M13 handlebar integrated display, LCD 36V PA 0-5, speed limit 25km/h |
| Controller | Bafang groupset |
| Throttle | NIL |
| Lights | Mogubro M13 handlebar integrated headlight; |
| Max Assisted Speed | 25km/h |
| Charging time | 9 hrs |
| Battery Distance | 125 KM |
