Electric Bike
Model No. EM29-03
EM29-03

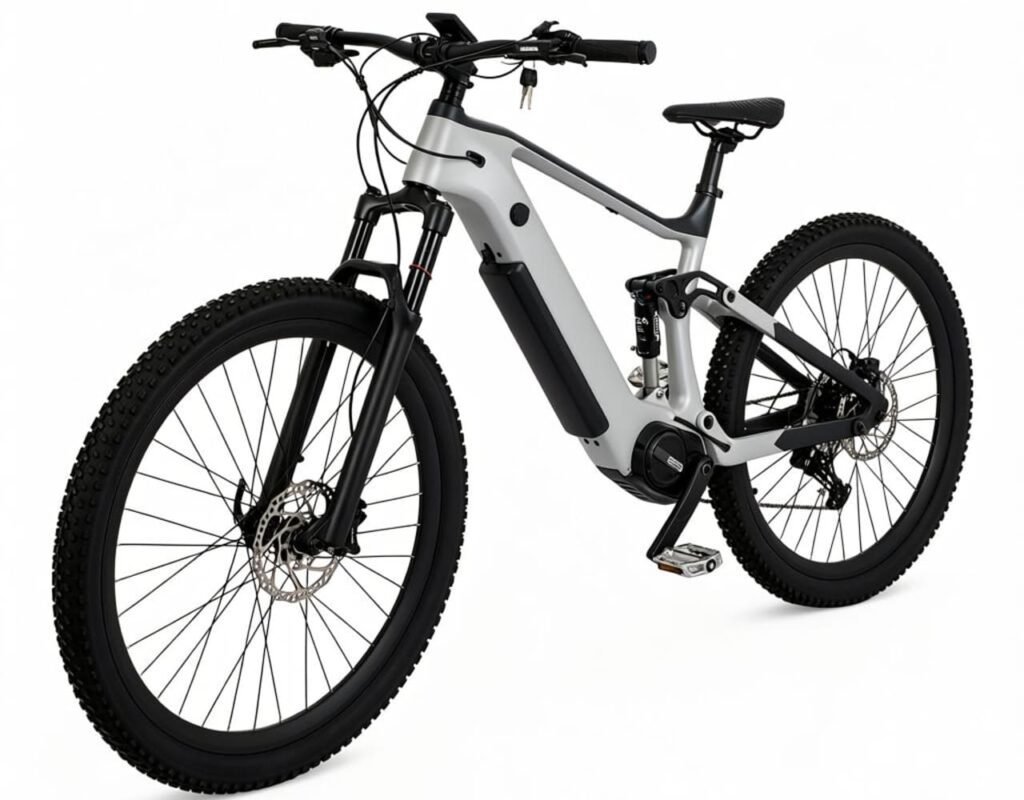

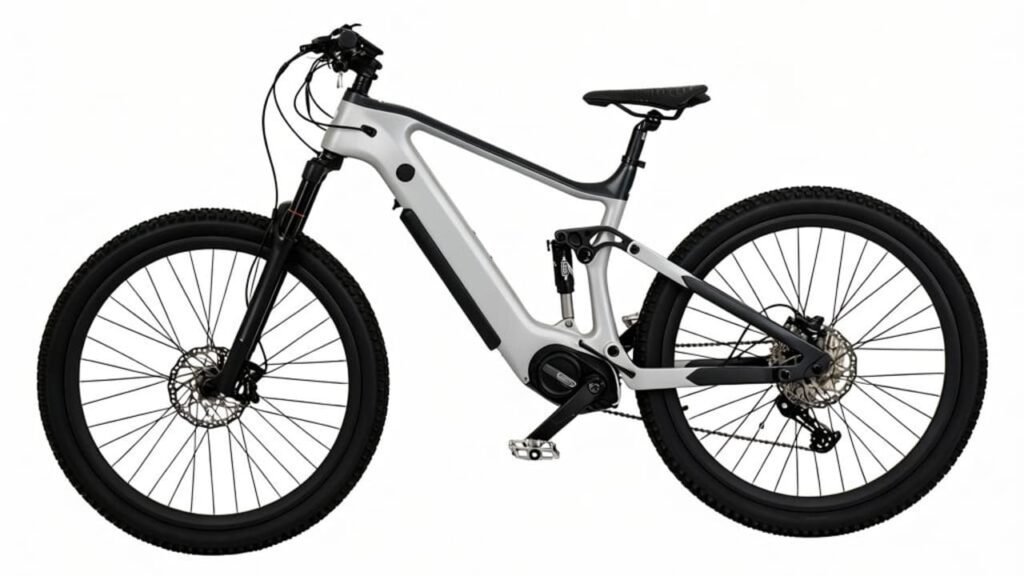

29 inch carbon dual suspension mountain eBike, 11 speed, 36V250W mid-drive motor, 43V14Ah Lithium ion battery
- ■ OEM/ODM customization available
- ■ EN 15194 / UL 2849 / JIS certified options
- ■ Wholesale & private-label programs available
annie@zotec-ev.com
+86 15000722592
Technical Data
Product Specifications
Detailed technical parameters for engineering and procurement reference.
| Parameter | Value |
|---|---|
| Model No. | EM29-03 |
| Frame material | Carbon fiber |
| Wheel size | 29'' |
| Fork | S.R. Suntour Air Suspension, 868AIR+RLO through axle, travel 120mm, 29''* 24.6*28.6*213 threadless, remote lockout |

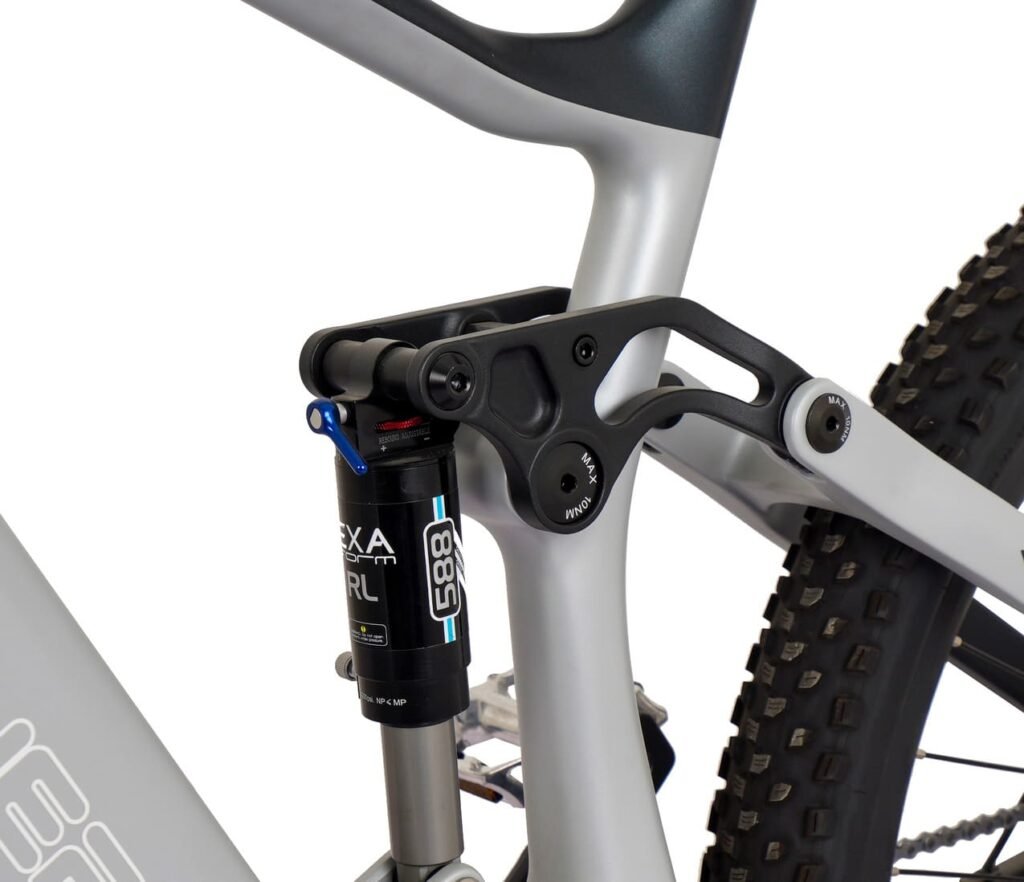

| Rear Suspension | KIND Exa Form 588RL dual-air rear shock, travel 48mm |
| Handle Bars | ZOOM Aluminum Alloy, MTB-AL-320BTFOV/ISO-M, 760mm comply w/ EN STD |
| Stem | ZOOM Aluminum Alloy, TDS-C301-8FOV/ISO-M, H=41mm/EXT=60MM, comply w/ EN STD |
| Rear Shift Levers | Shimano SL-M5100-R, DEORE, RIGHT, 11-SPEED RAPIDFIRE PLUS 2400MM INNER, W/ OPTICAL GEAR DISPLAY, BULK |

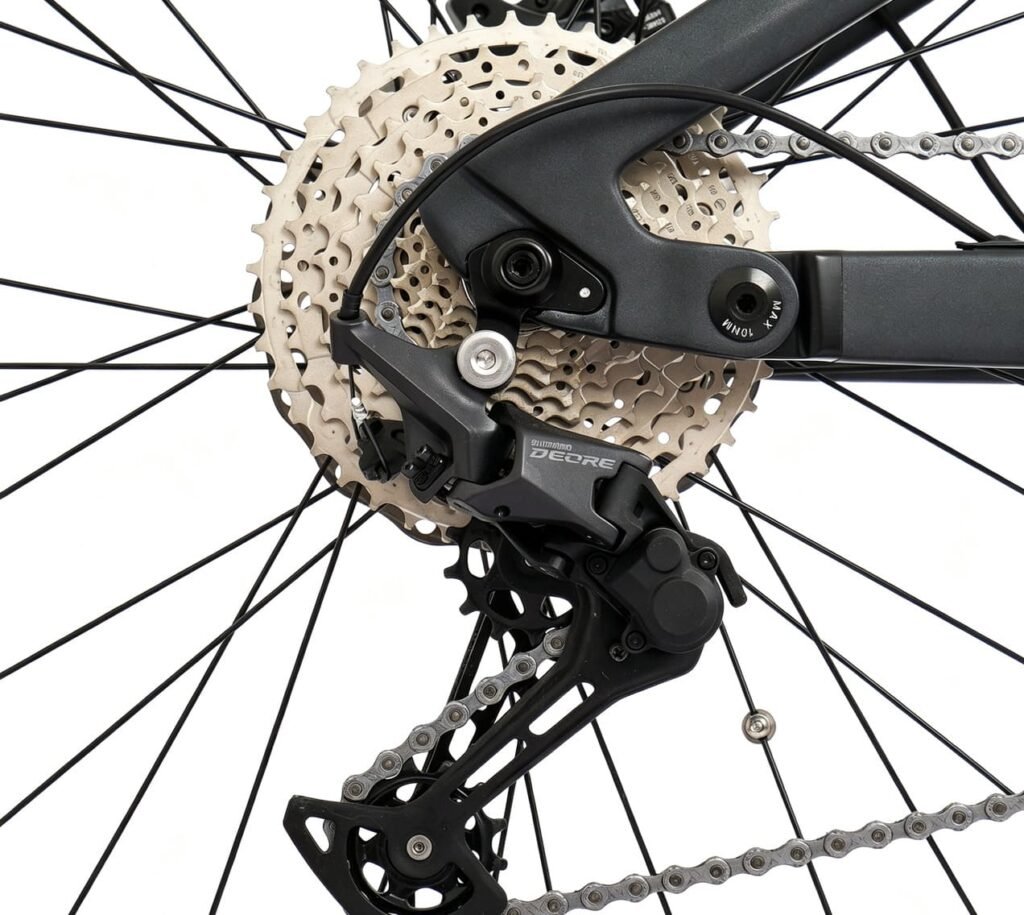

| Rear Derailleur | Shimano RD-M5100, DEORE, SGS 11-SPEED, TOP NORMAL, SHADOW PLUS DESIGN, DIRECT ATTACHMENT, BULK |
| Freewheel/ Cassette | Shimano Cassette Sprocket, CS-M5100-11, DEORE, 11-SPEED, 11-13-15-17-19-21-24-28-32-37-42T, BULK |
| Chainwheel/Crank | Bafang MM G522.250.C groupset 1/2"*11/128"*32T, crank 170, Steel/Alloy |
| Chain | KMC E11 Sport/ EPT, 1/2"*11/128"*116L 11 speed, Mid-drive motor specialized chain |
| Wheel | Aluminium double wall rim 29"*H30mm/13G*36H A/V nozzle |
| Front Hub | Joytech D041SB-B15, M15*13G*36H*110MM, 2 bearing /disc brake, alloy |
| Rear Hub | Joytech D442SB-S4S-B12, M12*13G*36H*148MM, 4 bearing, 11S cassette /disc brake, alloy |
| Tyre | 29*2.35, black tyre |

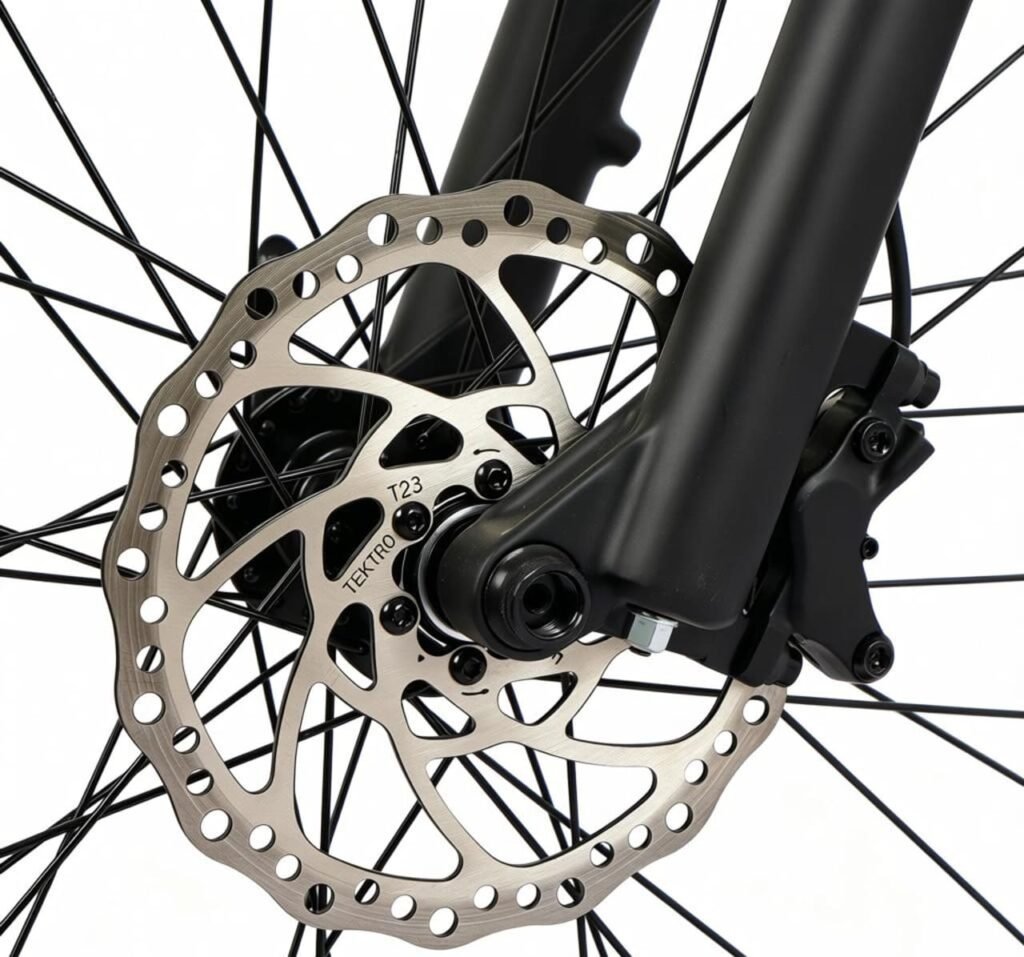

| Front Brake | Tektro HD-M530, Hydraulic disc brake 2-pistons |
| Rear Brake | Tektro HD-M530, Hydraulic disc brake 2-pistons |
| Grips | HL HL G-308 130MM/130MM black |
| Saddle | Ergonomic, comply w/ROSH STD |
| Seat post | ZOOM SP-C207/ISO-M aluminum alloy, φ31.6*300 w/Minimum Insertion Mark, comply w/EN Std |
| Pedals | FPD NWL-219 Flat pedals, aluminum alloy, w/BS Reflector |
| Reflectors | Front- white/ rear- red / wheel -yellow reflectors, comply w/AS BS CPSC Std |
| Parameter | Value |
|---|---|

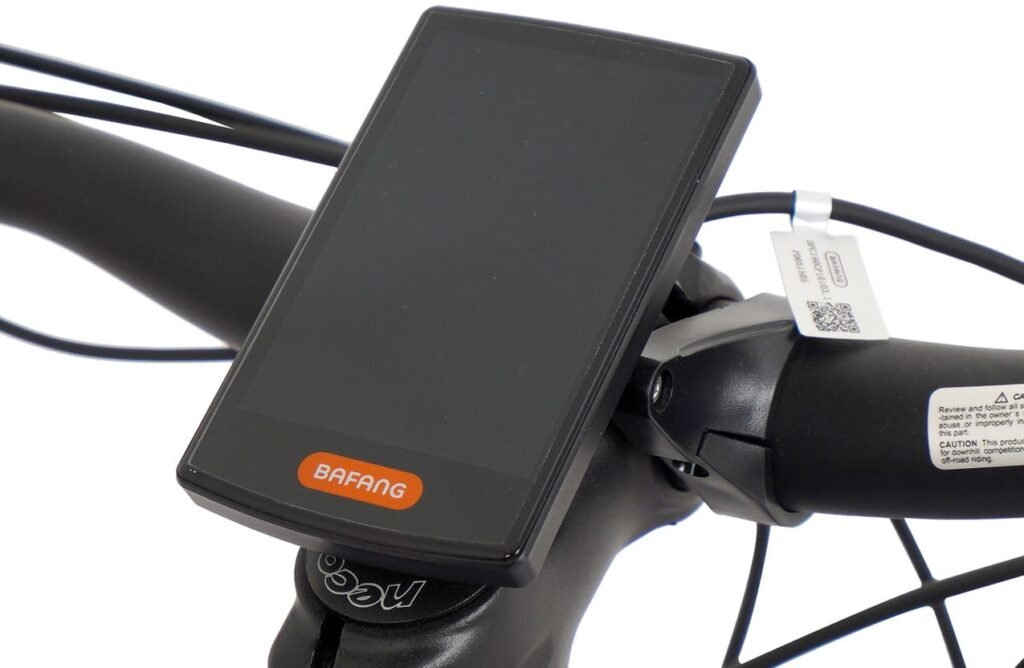

| Display | LCD Screen/ Bafang DP C190.CAN display, digital, 0-5 Modes |

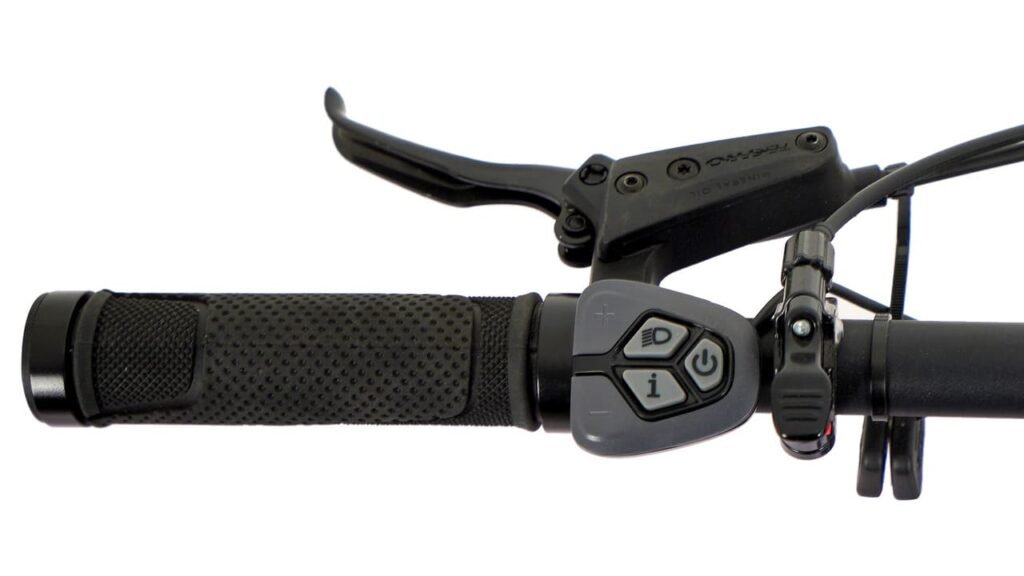

| Assistance Management | 5 levels of assistance |
| Walking Assist | Yes, 6km/h |
| Engine Brand | Bafang Mid-Drive MM G522.250.C |
| Engine Type | Central Engine |
| Power | 250 W |
| Max Torque | 95 Nm 130 N.m (Peak 100N.m) |
| Battery | Bafang groupset BT F04.600.CAN DC 43V/14Ah |
| Battery Type | Integrated battery |
| Battery Distance | 80 - 90KM |
| Battery Charger | CHG C02.3A.EN, DC43V/3A, comply w/EN Std |
| Charging Time | 5 hours |
| Battery Lifetime | >500 cycles |
| Controller | Bafang Mid-Drive MM G522.250.C groupset |
| Pedal Sensor | Torque+Cadence |
| Front Light | Ext. battery powered, XC122, LED light w/USB charging portal, comply w/EN std |
| Rear Light | Ext. battery powered, XC142, LED light w/USB charging portal, comply w/EN std |
