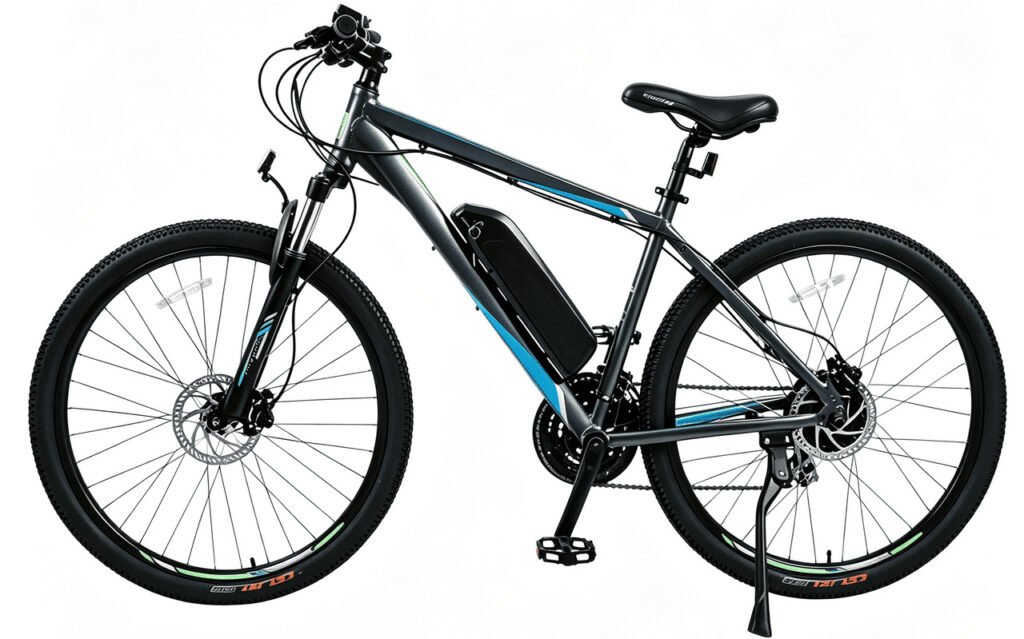

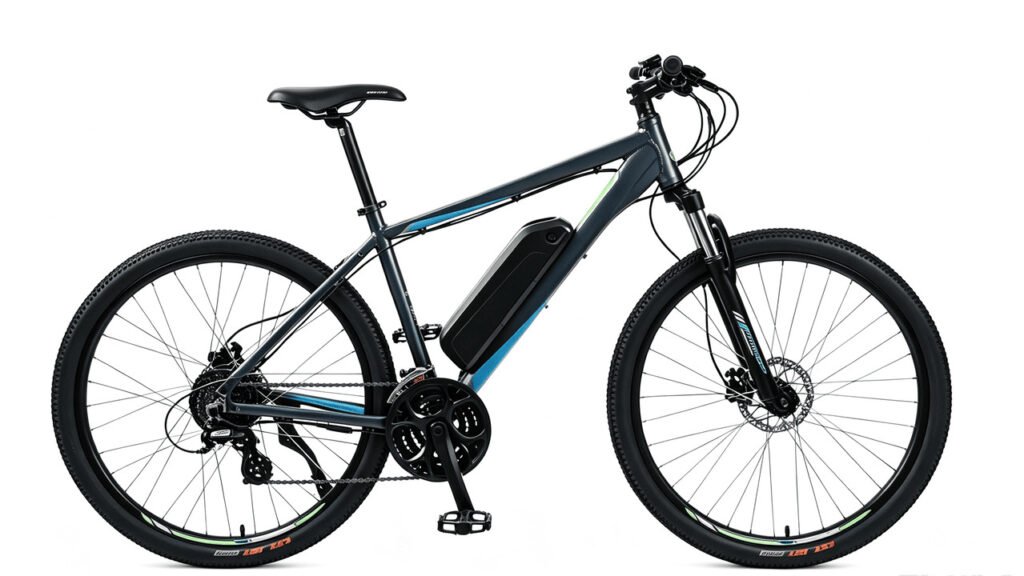

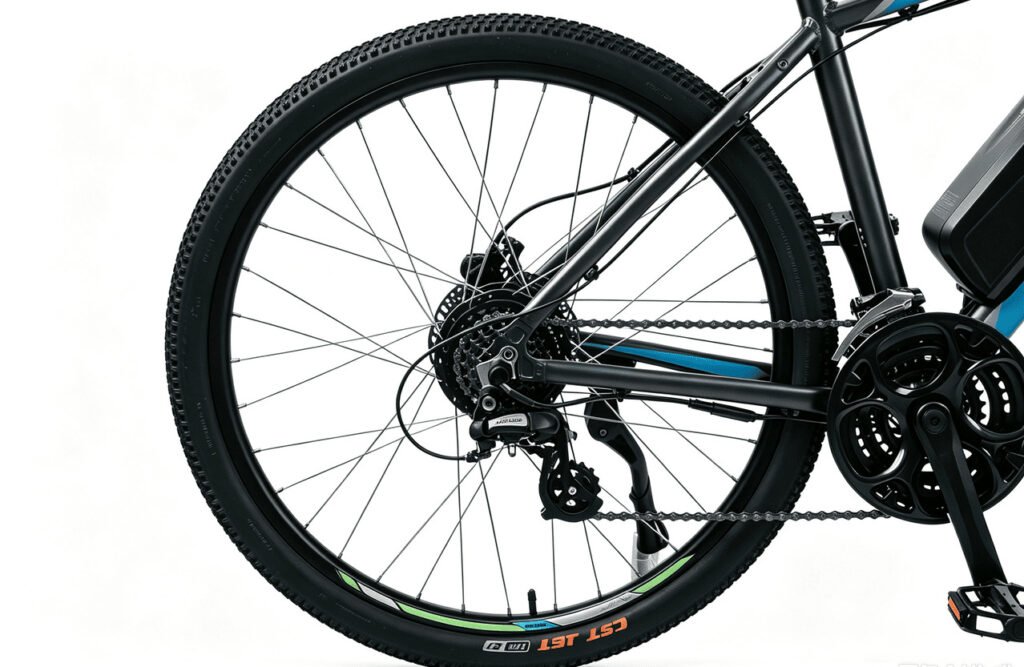

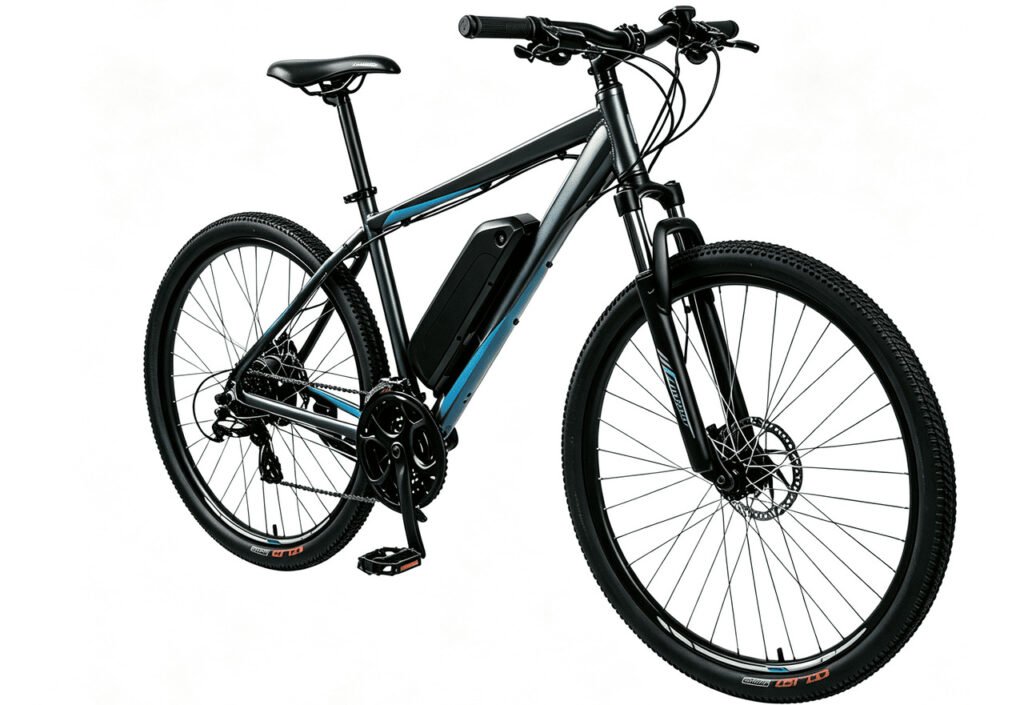

Model No. EM275-07
27.5 inch alloy mountain eBike, Tektro Hydraulic Disc Brake, Shimano 21 Speed, 36V250W rear-hub motor, 36V10Ah downtube Lithium ion battery
Detailed technical parameters for engineering and procurement reference.
| Parameter | Value |
|---|---|
| MODEL NO. | EM275-07 |
| FRAME | Aluminum Alloy, 27.5'' |
| FORK | Suspension Fork, 27.5''*28.6*25.4*210L, Alloy Crown |
| HANDLEBAR | Aluminum Alloy, comply w/ EN STD |
| STEM | Aluminum Alloy, comply w/ EN STD |
| FRONT SHIFTER | SHIMANO SL-M315-L, LEFT, 3-SPEED RAPIDFIRE PLUS 1800MM INNER, W/ OPTICAL GEAR DISPLAY, BULK |
| FRONT DERAILLEUR | SHIMANO AFDM310M6C, 3 Speed |
| REAR SHIFTER | SHIMANO ASLM3157RA, 7 SPEED, Acera thumb shifter casing 2050mm |

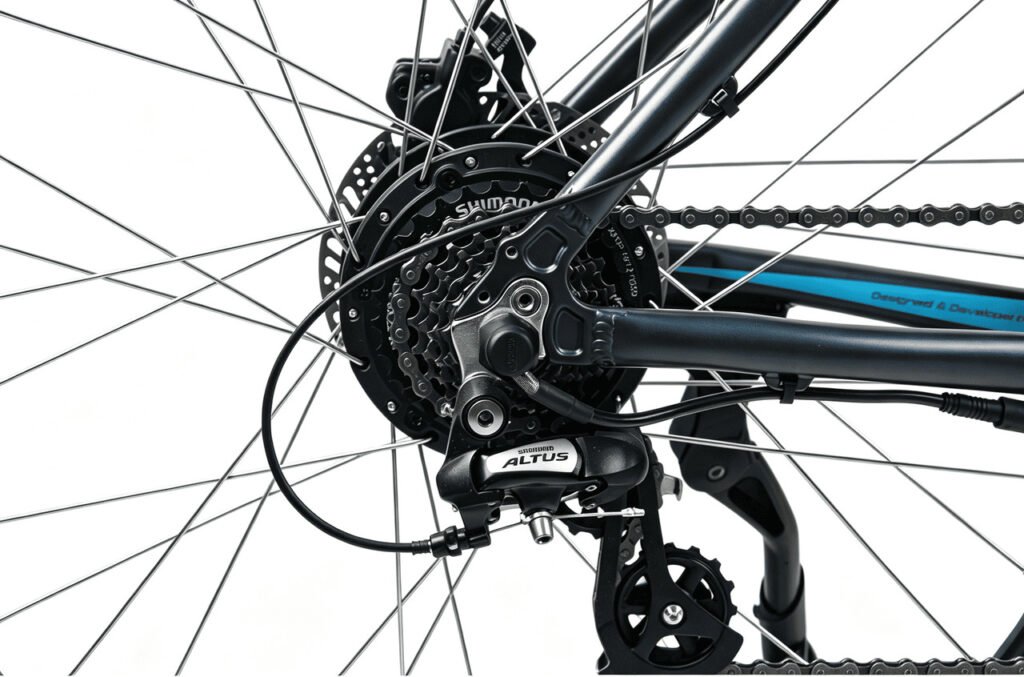

| REAR DERAILLEUR | SHIMANO RD-M310-L, ALTUS, 7-SPEED DIRECT ATTACHMENT, BLACK, BULK |
| FREEWHEEL | SHIMANO AMFTZ5007428 7S 14-28T |

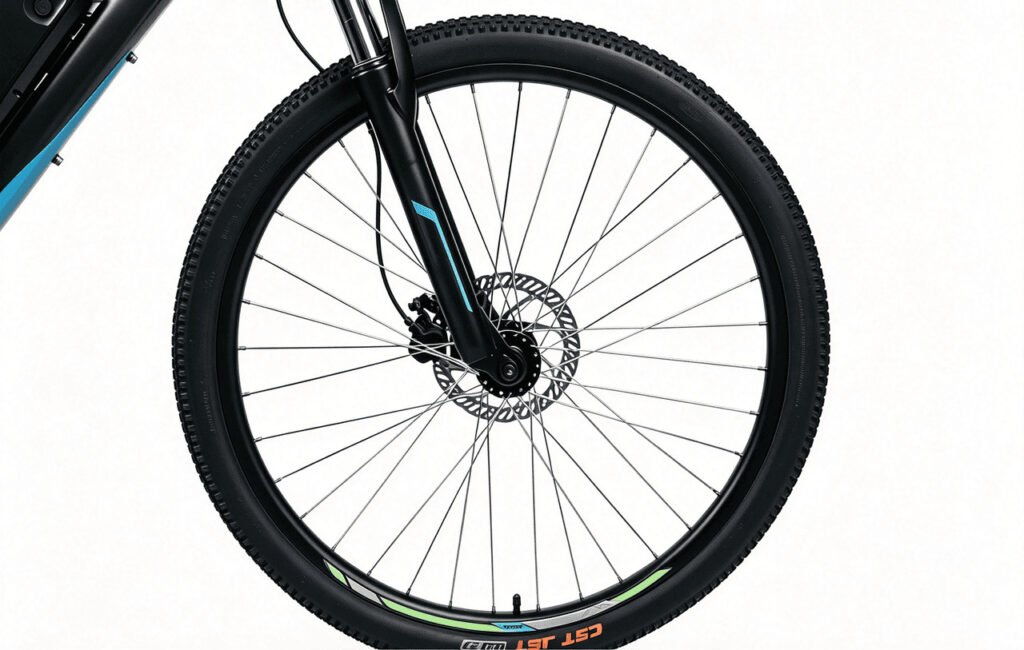

| RIM | Aluminum Alloy, Double-Wall Rim, 27.5“*1.75-2.125*H20.5mm*W19mm/13G*36H, A/V |
| CHAINWHEEL/CRANK | PROWHEEL, 1/2*3/32" 28T*38T*48T, Steel/Alloy |
| CHAIN | KMC Z7GY/BR 1/2''*3/32''*112L |
| TYRE& TUBE | CST C-1820 27.5*1.95, black tyre |

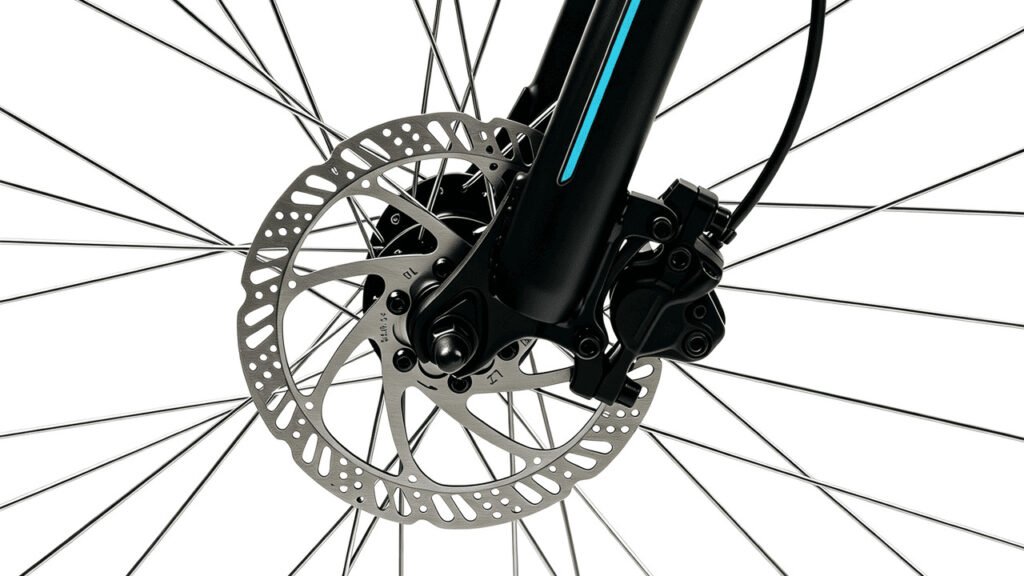

| FRONT BRAKE | Tektro HD-M275R Hydraulic Disc Brake, casing 1400mm，w/TR160-24 φ160mm rotor |
| REAR BRAKE | Tektro HD-M275R Hydraulic Disc Brake, casing 850mm，w/TR160-24 φ160mm rotor |

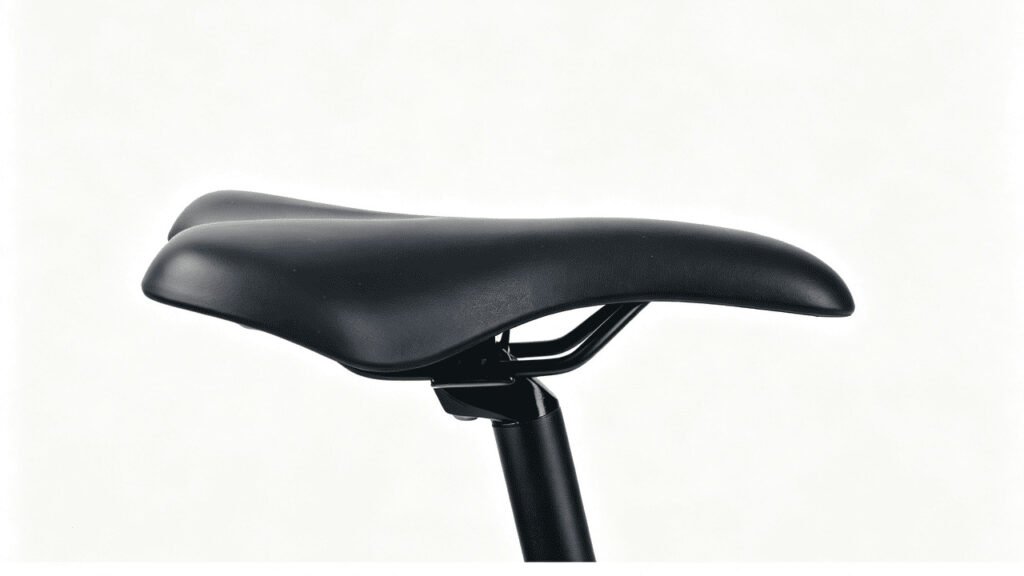

| SADDLE | Ergonomic, comply w/ROSH STD |
| SEAT POST | Aluminum Alloy, φ27.2*350*2.3T w/Minimum Insertion Mark |
| PEDAL | Aluminum Alloy, w/BS Reflector |
| REFLECTOR | F/R/W Reflectors, comply w/BS/CPSC Standard |
| Parameter | Value |
|---|---|

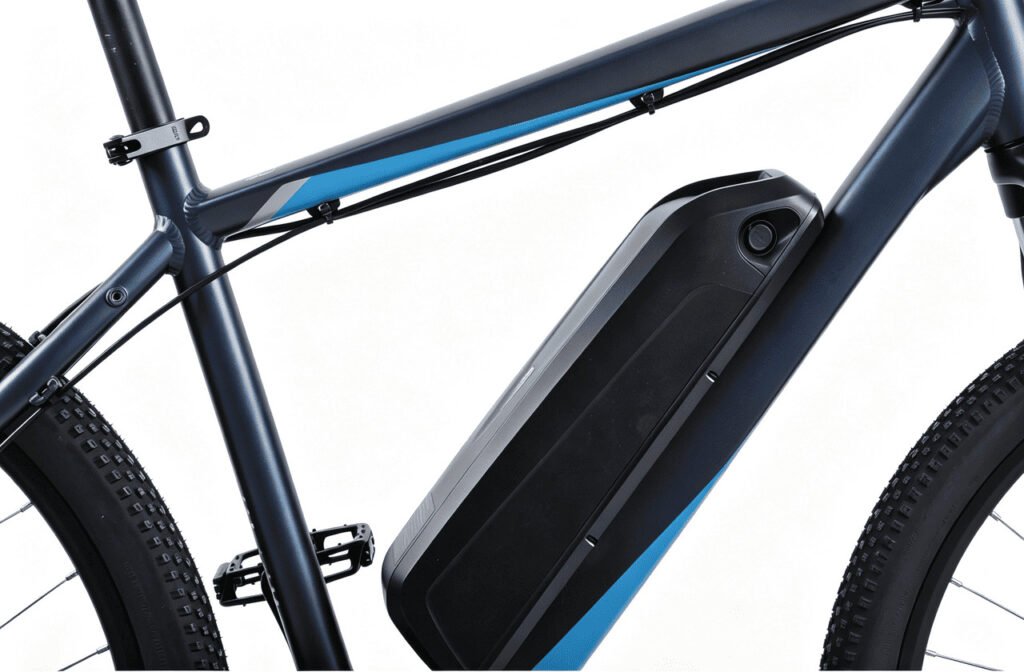

| BATTERY | Lithium Ion 36V10AH (2500mah Cell) |
| MOTOR | MXUS High Speed Brushless Rear-Hub Motor, 36V250W |
| CONTROLLER | Santrol, PAS 1:1, Max Current: 12A |

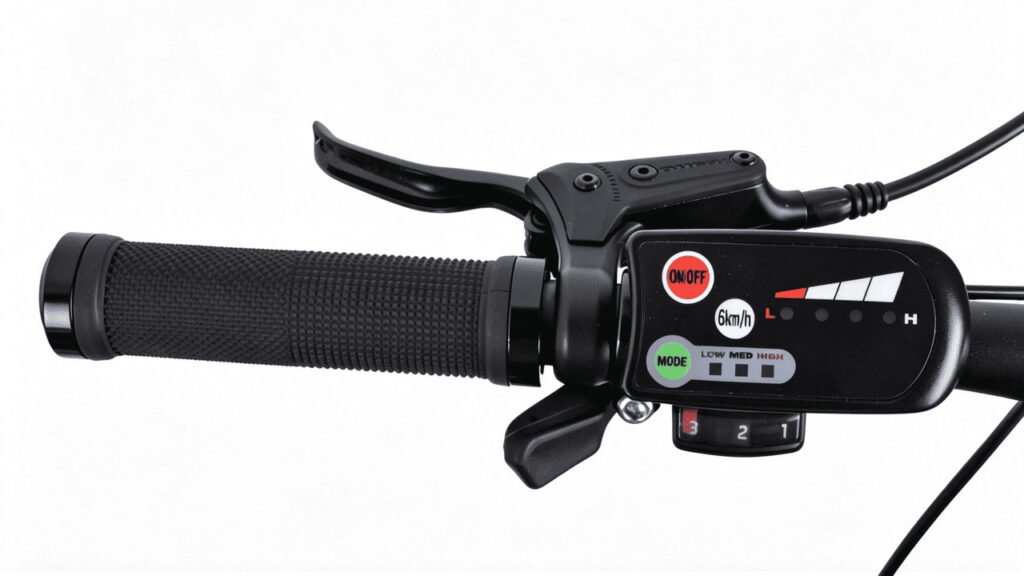

| DISPLAY | KINGMETER, 36V LED Display |
| SENSOR | BIGSTONE, 12 Point Magnetic Steel |
| MAX SPEED | 25KM/H |
| CHARGE TIME | 5 Hours |
| ESTIMATED RANGE | 45 - 50 KM |
