Electric Bike
Model No. EM275-04
EM275-04

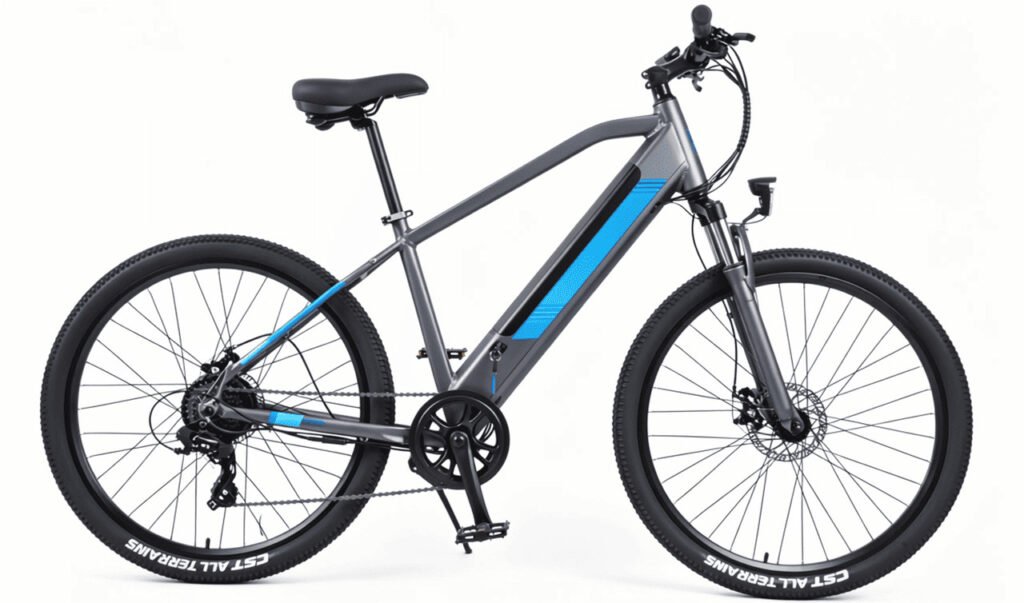

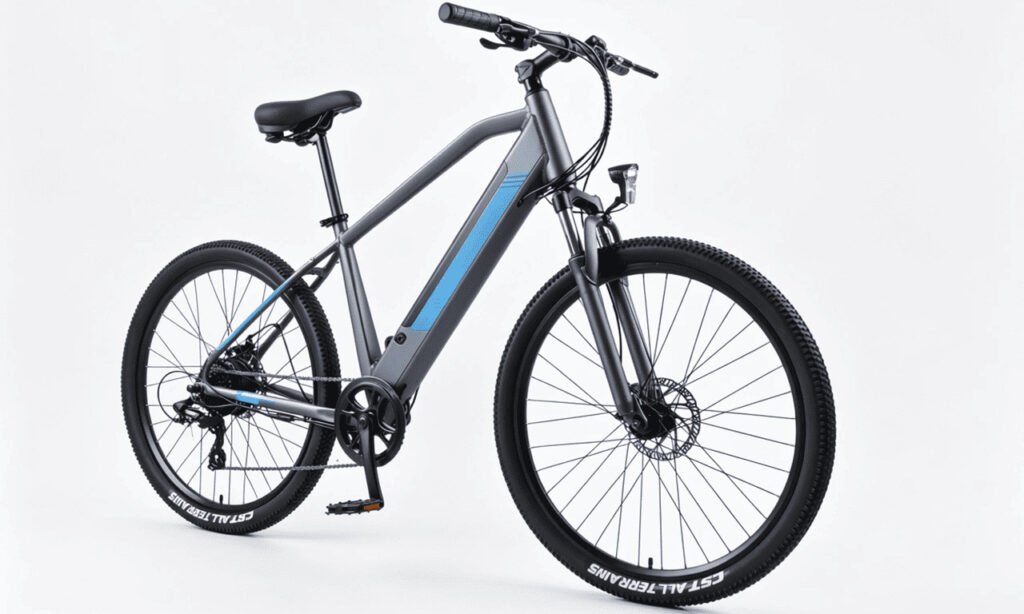

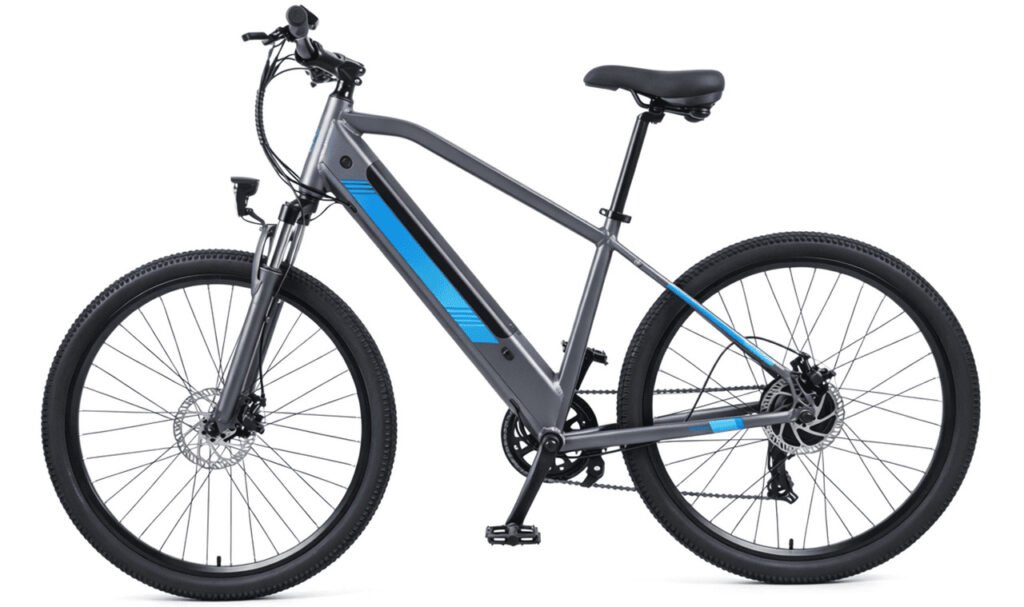

27.5 inch mountain eBike, Shimano 8 Speed, 36V250W rear-hub motor, 36V10.4Ah Lithium ion battery
- ■ OEM/ODM customization available
- ■ EN 15194 / UL 2849 / JIS certified options
- ■ Wholesale & private-label programs available
annie@zotec-ev.com
+86 15000722592
Technical Data
Product Specifications
Detailed technical parameters for engineering and procurement reference.
| Parameter | Value |
|---|---|
| MODEL NO. | EM275-04 |
| FRAME | Aluminium Alloy, 27.5'' Mountain Bike Style eBike Frame |

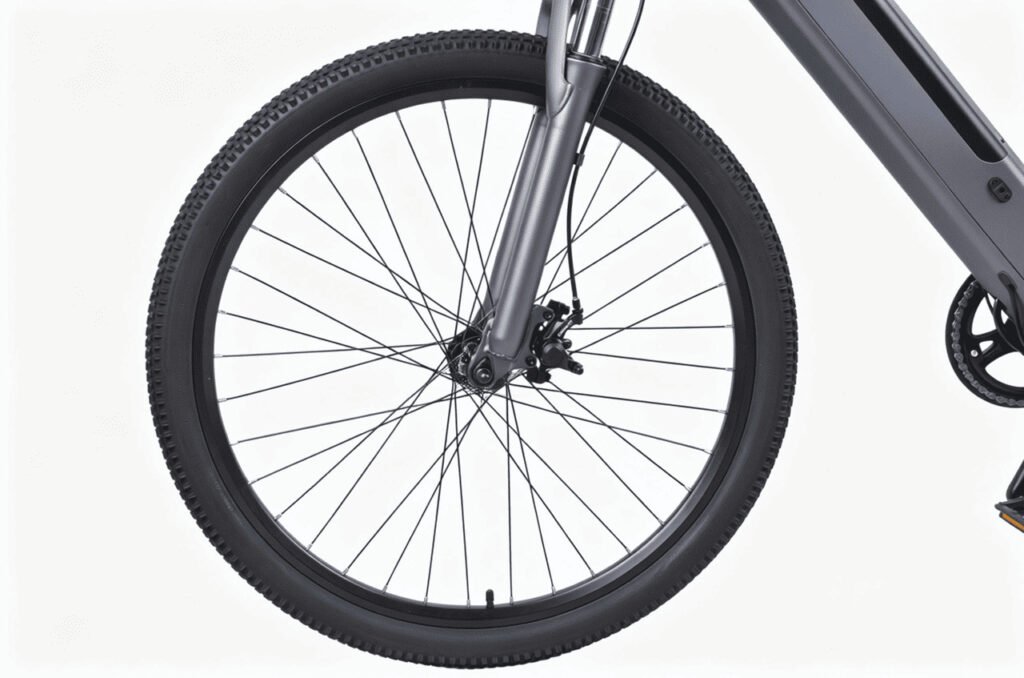

| FORK | HENGMENG Suspension Fork, 27.5'', disc brake |
| HANDLEBAR | PROMAX, Aluminum Alloy, ￠22.2*￠31.8*9 degree*width 680mm |
| STEM | PROMAX,￠31.8*90mm*8 degree**28.6*37H, Aluminium Alloy, EN STD |
| R. SHIFTER | SHIMANO ASLM310R8C 8 Speed, Right |

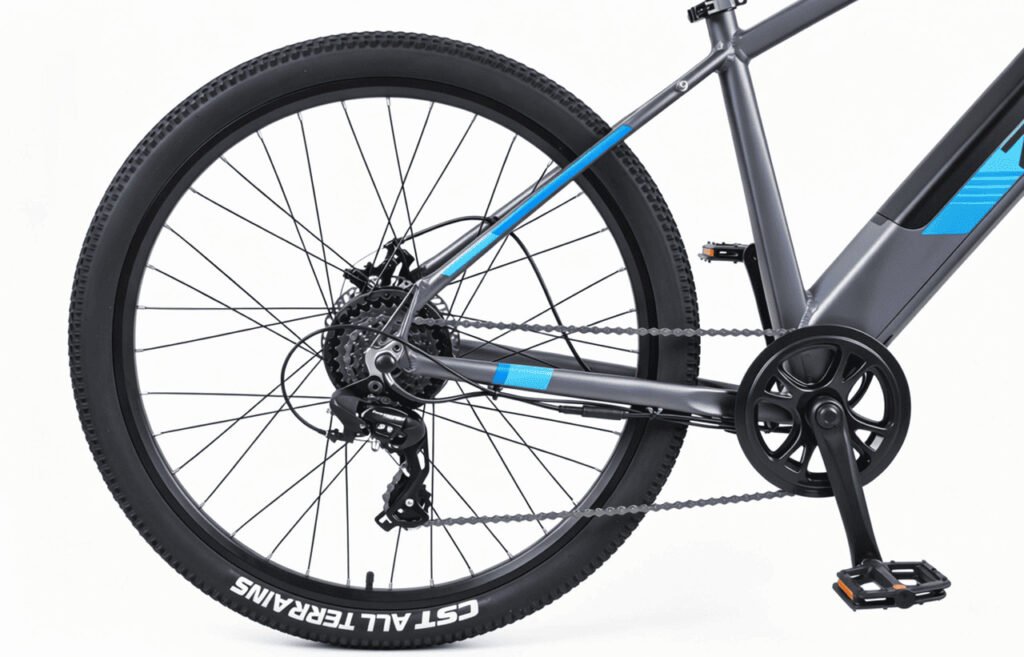

| REAR HUB DERAILLEUR | SHIMANO ARDTX800SGSL, RD-TX800, TOURNEY TX, 8-SPEED |
| FREEWHEEL | TRI-DIAMOND FW-238B, 8 Speed, 13-32T |
| RIM | Aluminum alloy 27.5* 13G*36, Alloy Double-Wall Rim |
| CHAINWHEEL/CRANK | 1/2"*3/32"*44T*170L, Alloy Crank |
| CHAIN | KMC, Z8.1RB, 1/2"*3/32"*120L, anti-rust silver |
| TYRE | CST C-1820, 27.5*2.10 Tyre, Black |

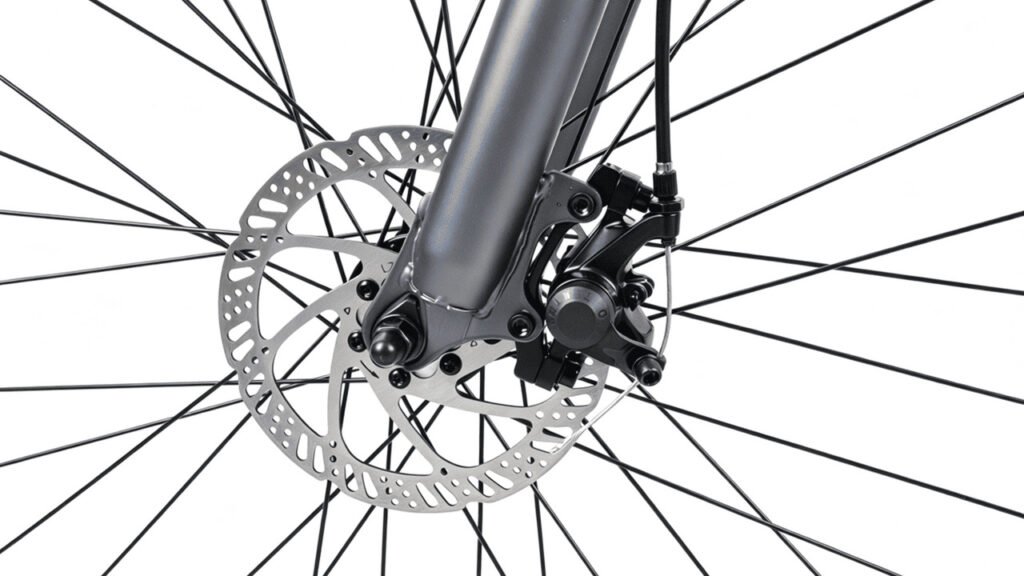

| FRONT BRAKE | TEKTRO MD-M280, Aluminum Alloy, Mechanical Disc Brake |

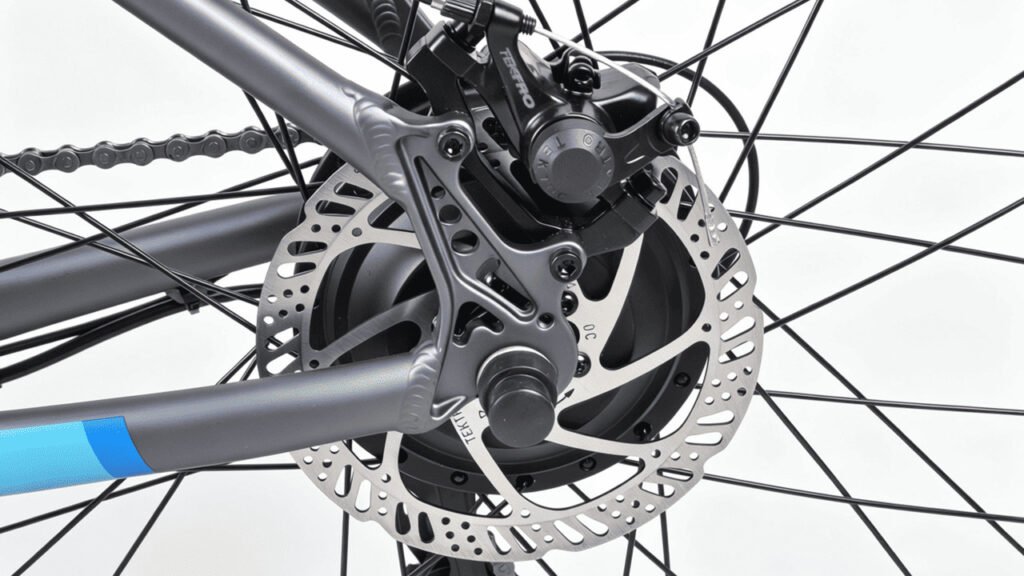

| REAR BRAKE | TEKTRO MD-M280, Aluminum Alloy, Mechanical Disc Brake |

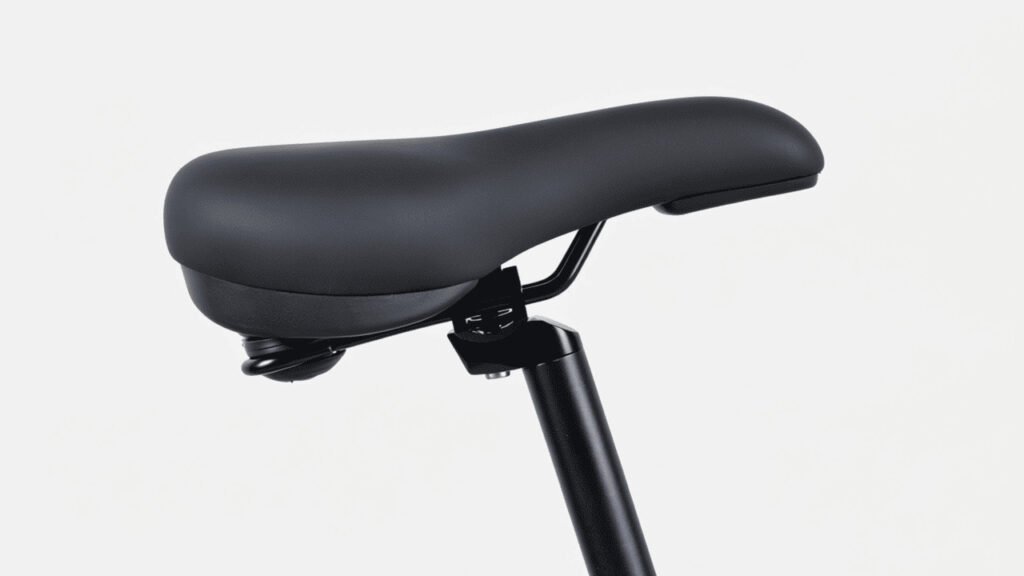

| SADDLE | HL, Ergonomic, comply w/ROHS STD |
| SEAT POST | ZOOM, 27.2*350 w/Minimium Insertion Mark, EN STD |
| PEDAL | Plastic, AS/BS reflector, w/L and R marks |
| GRIP | HL 135MM/92MM comply w/ PAHS standard |
| Parameter | Value |
|---|---|
| BATTERY | Lithium Ion 36V10.4AH (2600mah Chinese Cell) |
| MOTOR | High Speed Brushless Rear-Hub Motor, 27.5''36V250W |
| CONTROLLER | LISHUI, PAS 1:1, Max Current: 15A, 36V |
| CHARGER | 36V2A DC2.1 Plug |

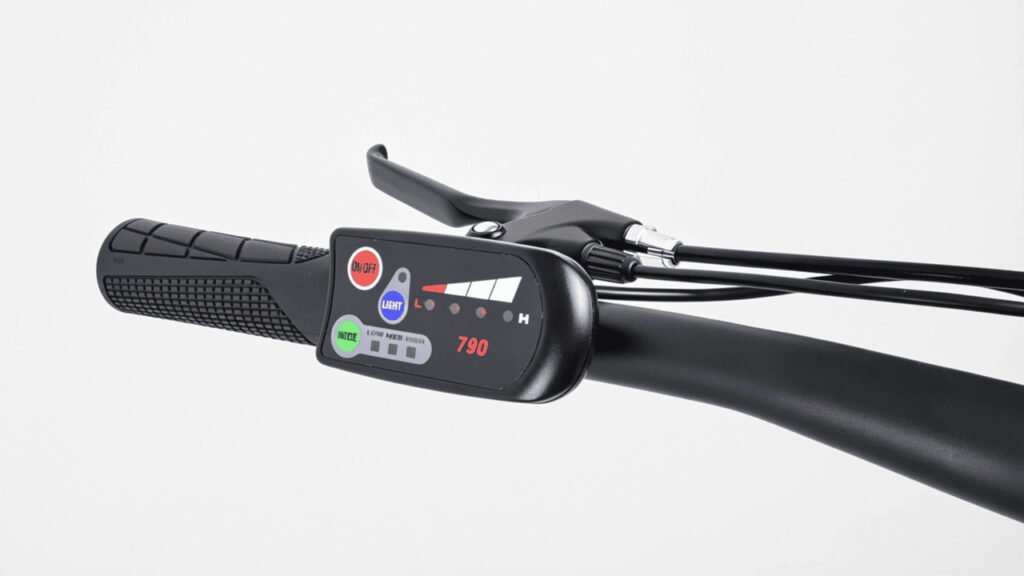

| DISPLAY | KINGMETER, 36V LED Display |
| SENSOR | BIGSTONE, P24L 12 Point Magnetic Steel |

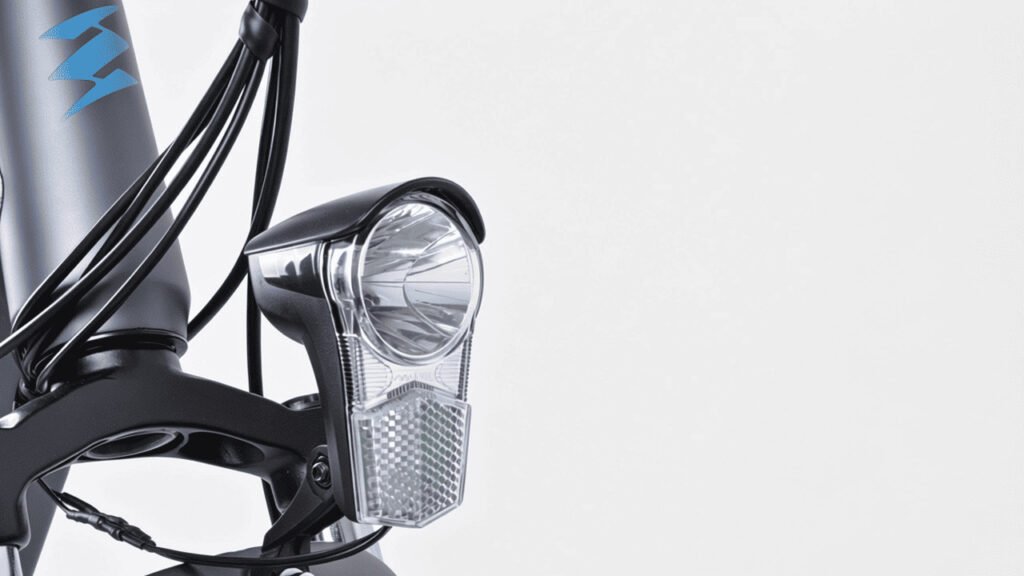

| FRONT LIGHT | BUCHEL Uni LED/15LUX, connecting w/lithium battery |
| REFLECTOR | Rear/Wheel Reflector comply w/BS/CPSC Standard |
| MAX SPEED | 25KM/H |
| CHARGE TIME | 5 - 6 Hours |
| ESTIMATED RANGE | 40 -50 KM |
