Electric Bike
Model No. EFAT20-02
EFAT20-02

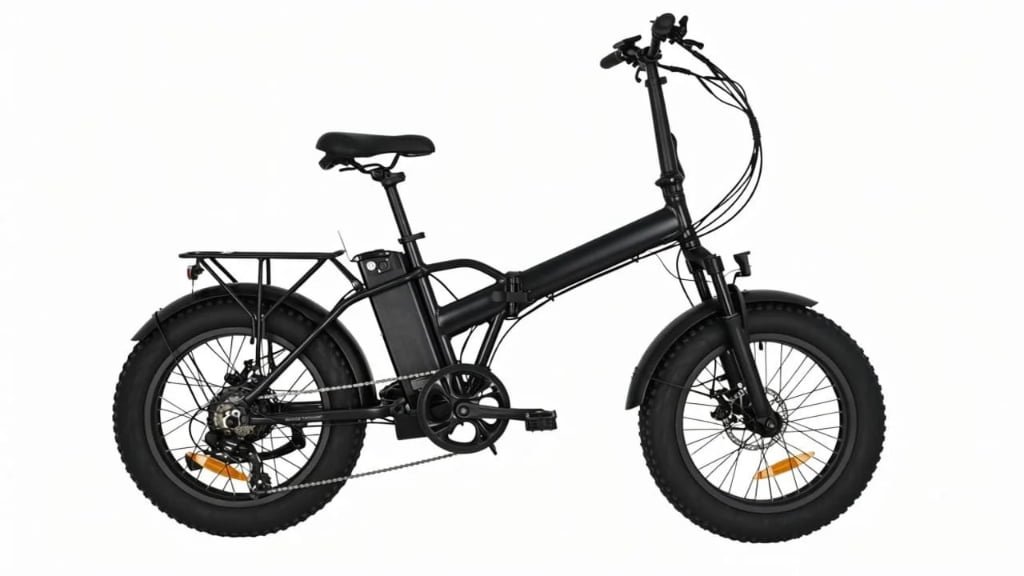

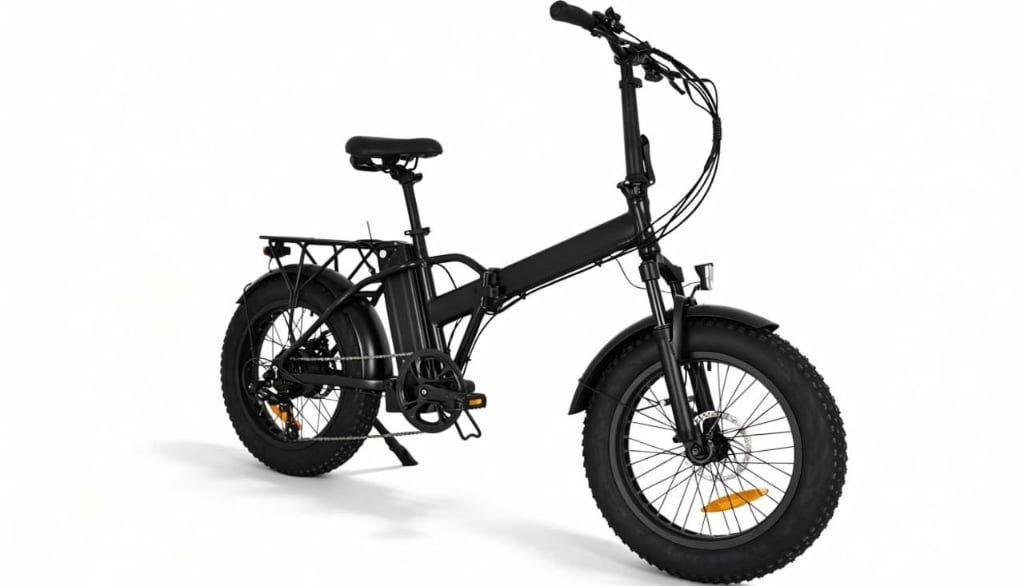

20 inch alloy folding eBike 36V250W rear hub motor, 36V12.5Ah Lithium ion battery
- ■ OEM/ODM customization available
- ■ EN 15194 / UL 2849 / JIS certified options
- ■ Wholesale & private-label programs available
annie@zotec-ev.com
+86 15000722592
Technical Data
Product Specifications
Detailed technical parameters for engineering and procurement reference.
| Parameter | Value |
|---|---|
| Model No. | EFAT20-02 |
| Frame material | Aluminium alloy, |
| Wheel size | 20'' |
| Fork | Aluminium alloy, Suspension rigid fork |
| Handle Bars | φ22.2*φ25.4*620W/B=10°/H=30/ comply w/EN Std |
| Stem | Fuhou FH05W+FH10 LCD foldable stem, comply w/EN Std |

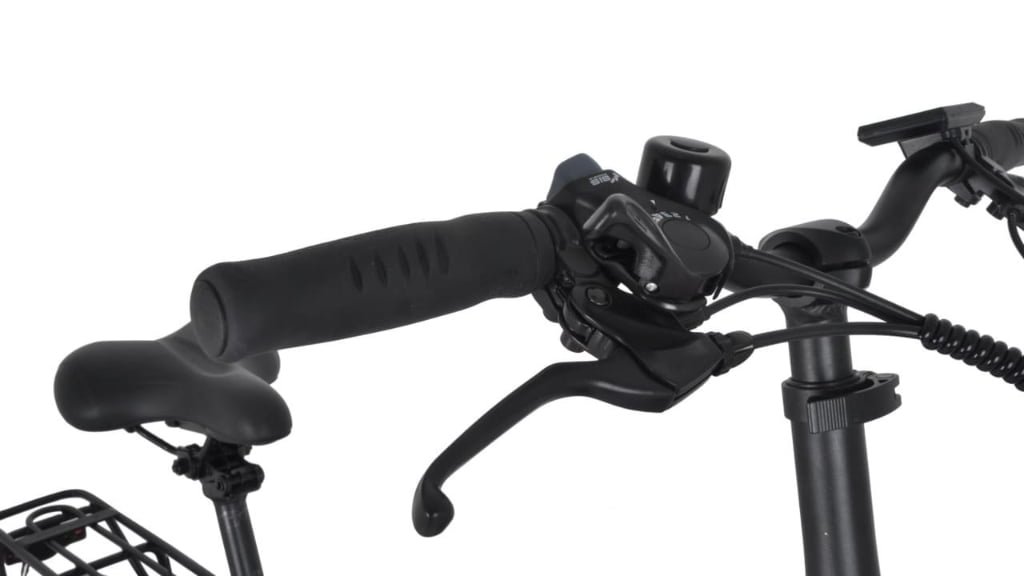

| Rear Shift Levers | Shimano ASLTX30R7AT 7 speed thumb shifter |
| Rear Derailleur | Shimano ARD-TY300D 7 speed w/long cage |
| Freewheel/ Cassette | Shimano AMFTZ5007428 7S 14-28T |
| Chainwheel/Crank | 1/2*3/32*48T*170mm alloy crank |
| Chain | KMC Z7GY/BR 1/2"*3/32"*126L |
| Wheel | Aluminium alloy double-wall rim 20*4.0*H23*W80.5/36H*13G/A/V nozzle |
| Front Hub | Aoyang GL-B47F-DS 3/8*135*175/13G*36H/ disc brake |

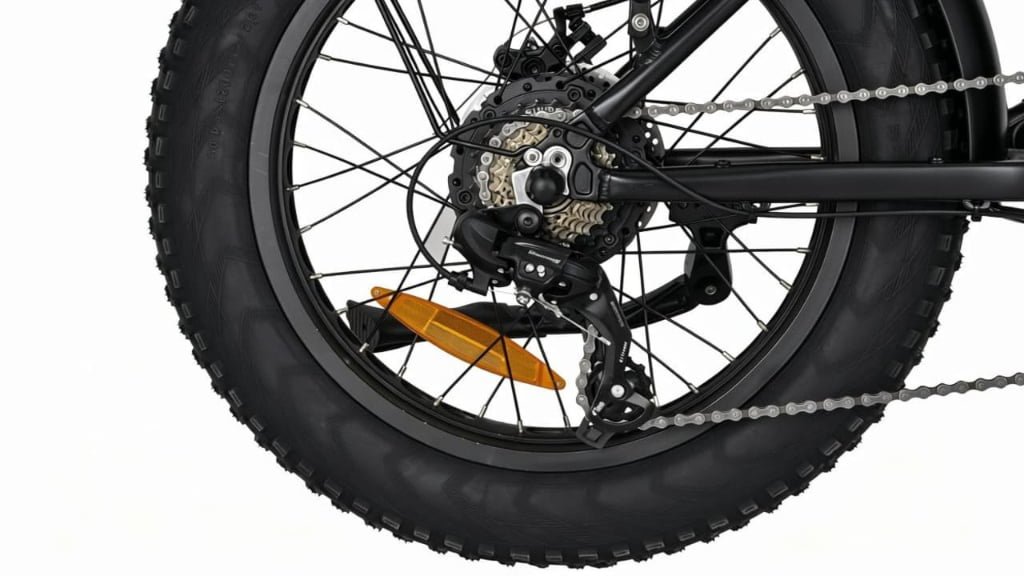

| Rear Hub | Shengyi Rear-Hub Motor |
| Tyre | CST C-1752, 20*4.0/black tyre w/ white CST BFT logo, comply w/CPSC Std |
| Front Brakes | Logan LB-DX2016 Disc Brake |
| Rear Brake | Logan LB-DX2016 Disc Brake |
| Grips | HL G-302 135MM/135MM , comply w/PAHS Std |

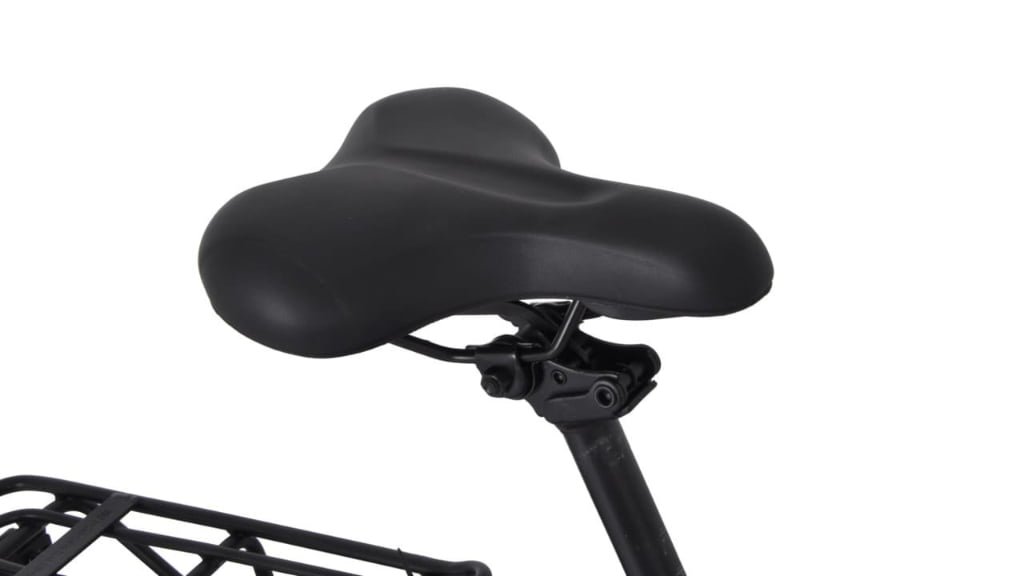

| Saddle | HL TH-XD236-3, 270*200mm/CP arc, comply w/ROSH Std |
| Seat post | Steel φ27.2*300mm*1.35T flip & flop saddle w/Minimum Insertion Mark, comply w/EN Std |
| Pedals | Plastic/steel foldable pedal, 9/16" axle comply w/ AS/BS/Std |
| Fender | Steel 20'' 105-20, black |
| Rear Carrier | Alloy single-layer carrier mark w/ ISO11243-2016 MAX25KG logo |
| Reflectors | wheel -yellow reflectors, comply w/AS BS CPSC Std |
| Kickstand | Alloy Chainstay kickstand, adjustable |
| Parameter | Value |
|---|---|

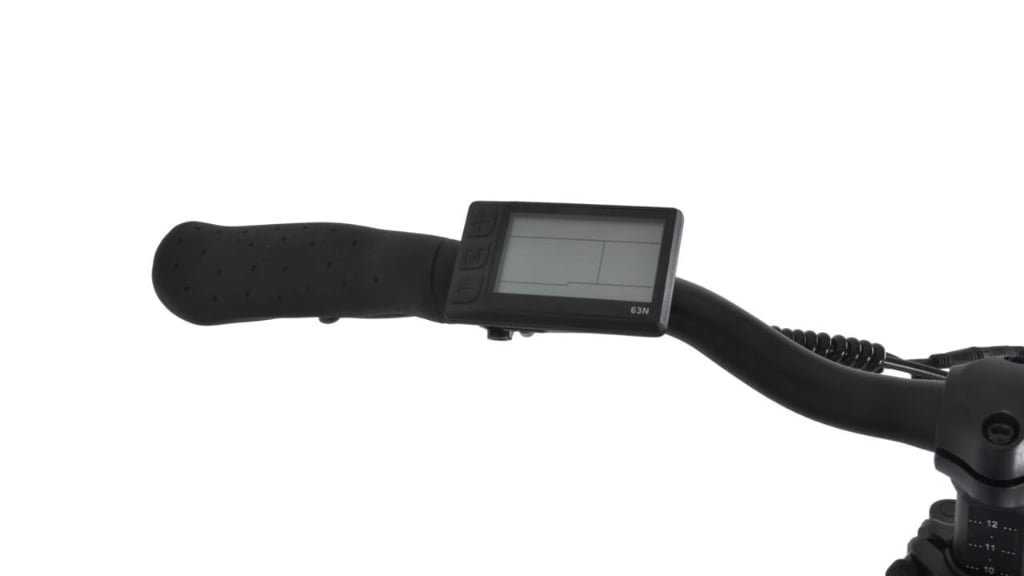

| Display | LED Screen/ JR 63N /SGS 0-5 Modes |
| Assistance Management | 5 levels of assistance |
| Walking Assist | Yes, 6km/h |
| Engine Brand | Shengyi |
| Engine Type | Rear-Hub Motor |
| Power | 250 W |
| Max Torque | 40Nm |
| Battery | 36V*12.5Ah /450Wh (Chinese 2500mah) |
| Battery Distance | 50 - 55KM |
| Battery Charger | 36V2Ah DC2.1, comply w/EN Std |
| Charging Time | 6-7 hours |
| Battery Lifetime | >500 cycles |
| Controller | Santroll 36V 15±1A |
| Sensor | Speed Sensor |

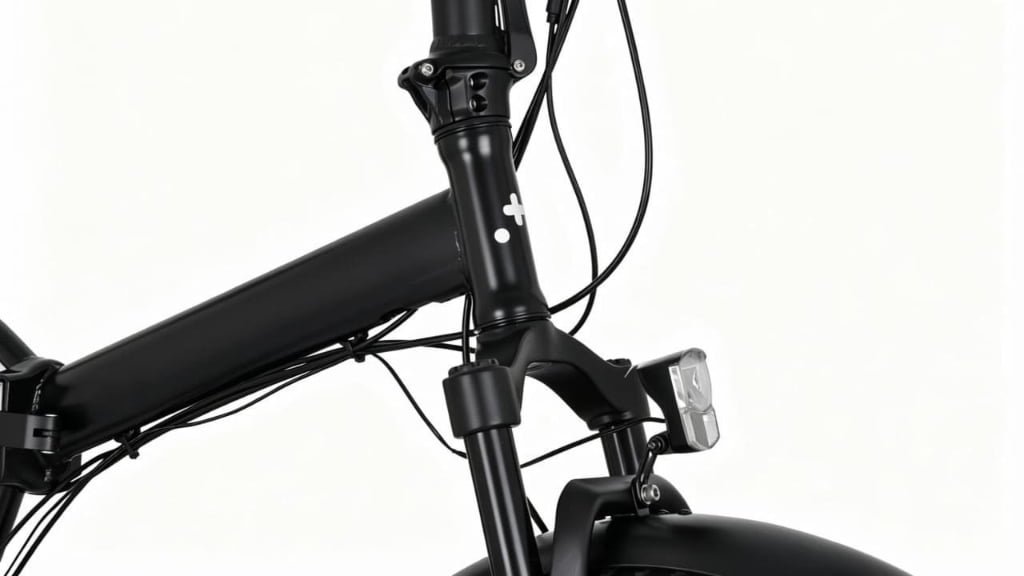

| Front Light | Int. battery powered, XC-295E, LED light E-Bike/6-48VDC, 90 lux, comly w/EN std |
| Rear Light | Ext. battery powered, XC-172E, LED light E-Bike/6-48VDC, 6 lux, comly w/EN std |
