Model No. EC700C-16

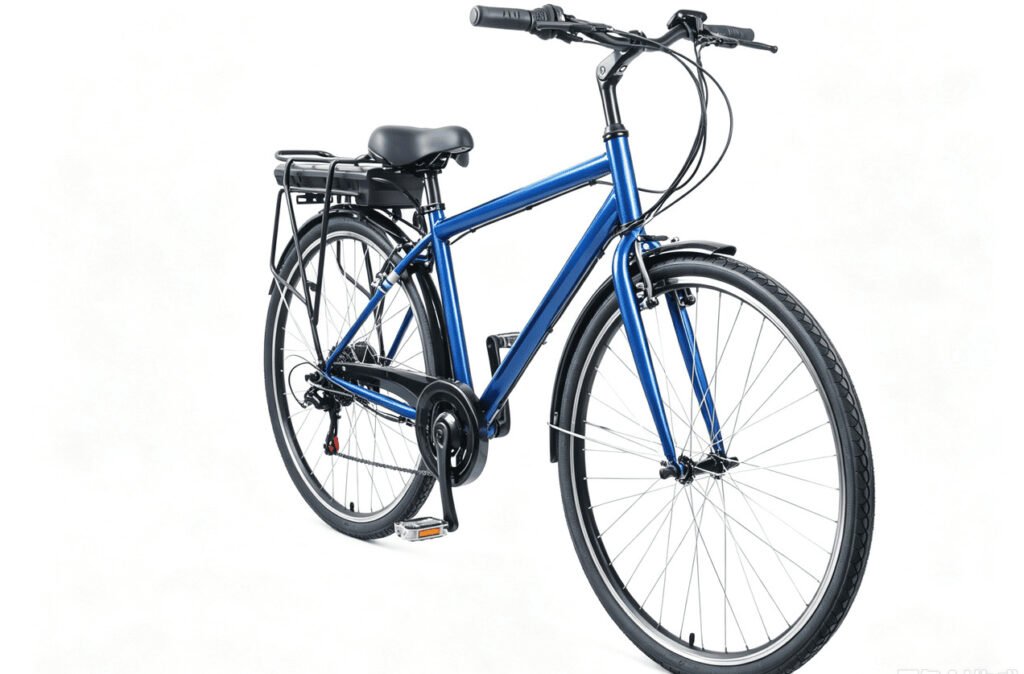

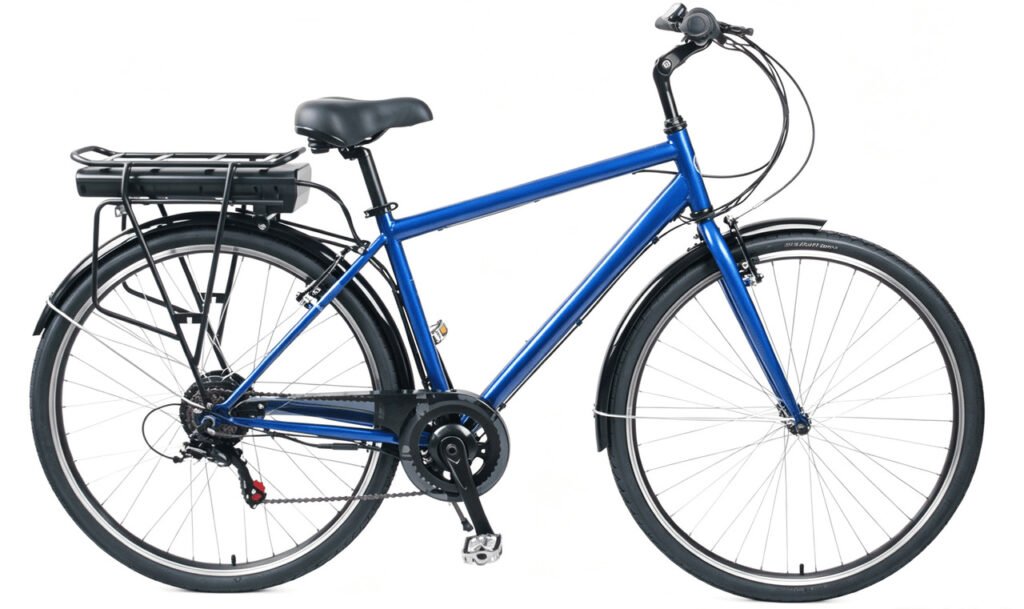

700C Alloy City eBike, Shimano 6 Speed, 24V250W front motor, 24V8.8Ah rear rack lithium ion battery
Detailed technical parameters for engineering and procurement reference.
| Parameter | Value |
|---|---|
| MODEL NO. | EC700C-16 |
| FRAME | Steel, 700C city frame |

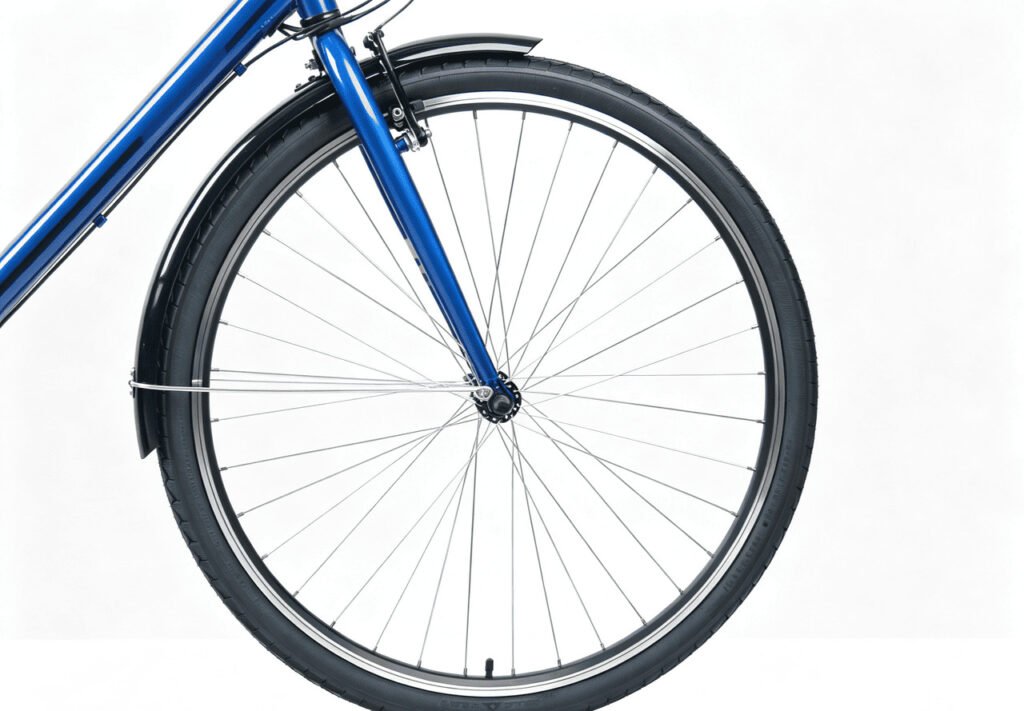

| FORK | Steel rigid fork, 700C |
| HANDLEBAR | Steel, comply w/ EN STD |
| STEM | Aluminum Alloy, comply w/ EN STD |
| REAR SHIFTER | SHIMANO ASLRS35R6CT 6 Speed, INDEX |

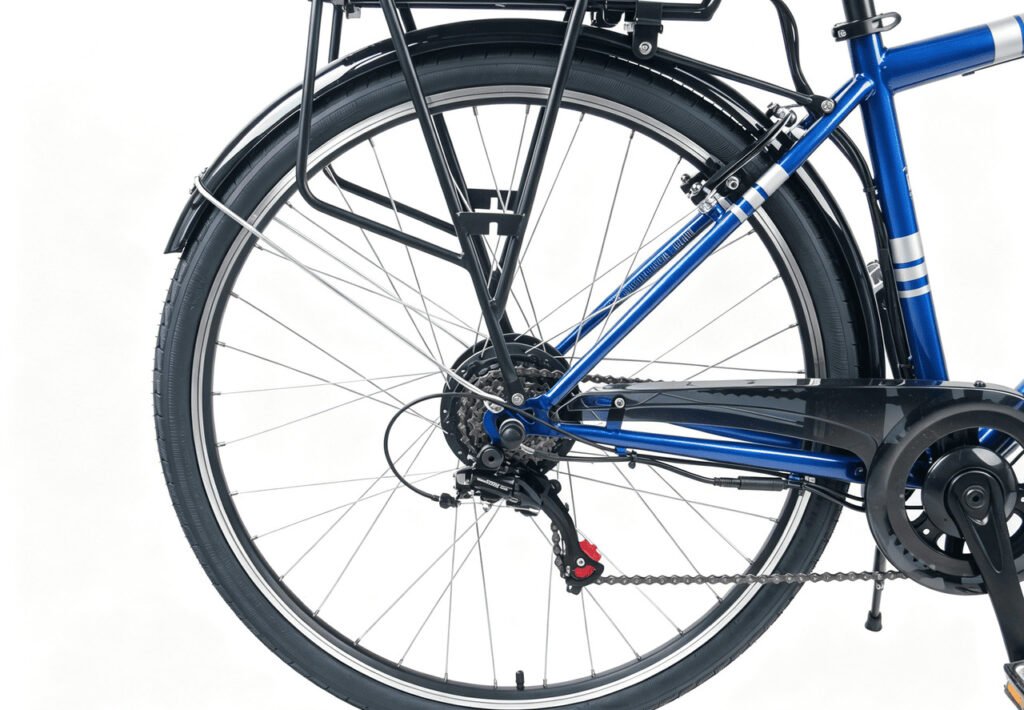

| REAR DERAILLEUR | SHIMANO ARDTZ500GSD 6 Speed |
| FREEWHEEL | SHIMANO AMFTZ5006428 |
| RIM | 700C Alloy Double-Wall Rim |

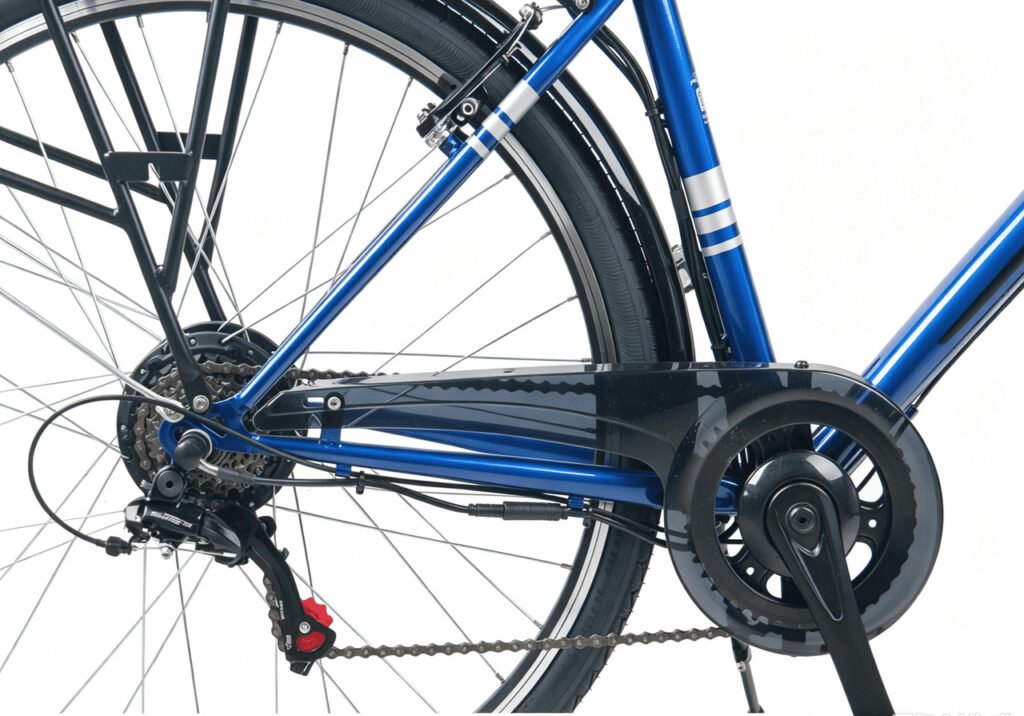

| CHAINWHEEL/CRANK | PROWHEEL 1/2"*3/32"*42T*170L, Steel |
| CHAIN | KMC Z7GY/BR 1/2''*3/32''*112L |
| TYRE & TUBE | CST, 700C*38C black tyre |
| FRONT BRAKE | Aluminum Alloy, PROMAX V Brake |
| REAR BRAKE | Aluminum Alloy, PROMAX V Brake |

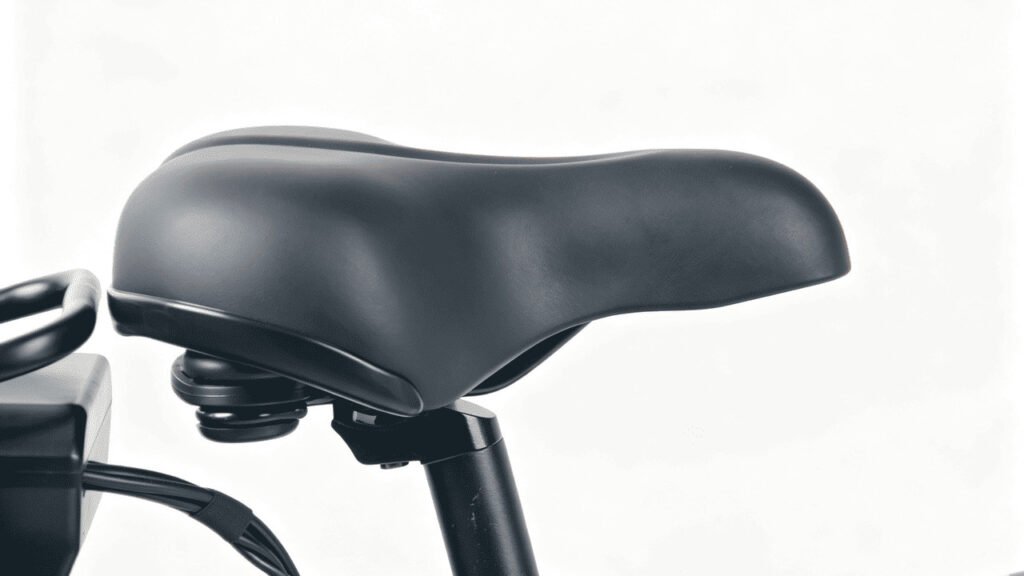

| SADDLE | Ergonomic, comply w/ROSH STD |
| SEAT POST | Steel, w/Minimum Insertion Mark |
| PEDAL | Plastic/Steel, w/BS Reflector |
| FENDER | Steel, F/R Fenders |
| CHAIN COVER | Plastic chain cover |
| REFLECTOR | F/R/W Reflectors, comply w/BS/CPSC Standard |
| Parameter | Value |
|---|---|

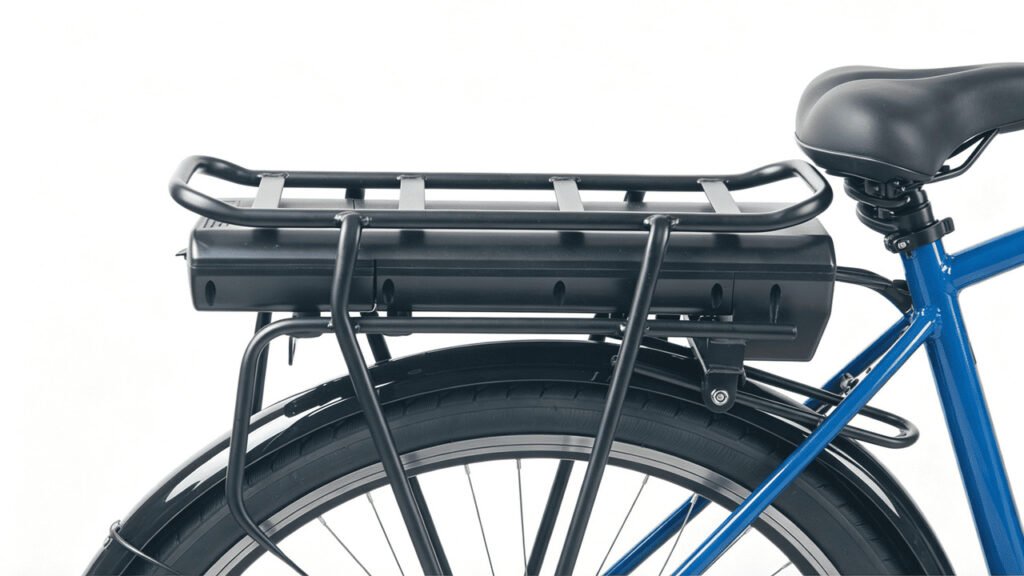

| BATTERY | Lithium Ion 24V8.8AH (2200mah Cell) |
| MOTOR | MXUS High Speed Brushless Rear-Hub Motor, 24V250W |
| CONTROLLER | PAS 1:1, Max Current: 12A |

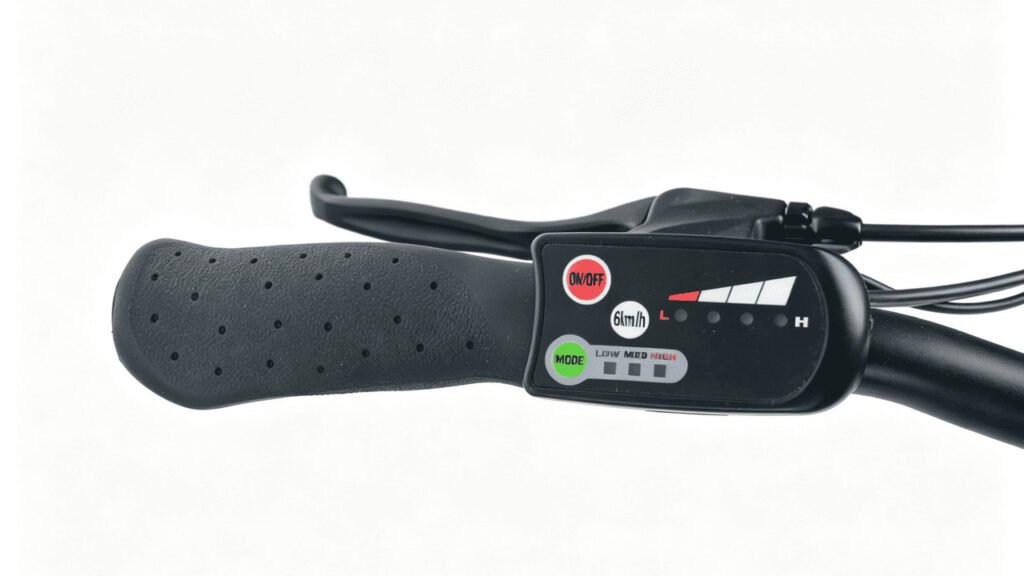

| DISPLAY | KINGMETER, 24V LED Display |
| SENSOR | BIGSTONE, 12 Point Magnetic Steel |
| MAX SPEED | 25KM/H |
| CHARGE TIME | 4 - 5 Hours |
| ESTIMATED RANGE | 35 -4 0 KM |
Fill in your requirements and our team will respond within 24 hours with pricing, MOQ, and lead time details.
