Model No. EC700C-14

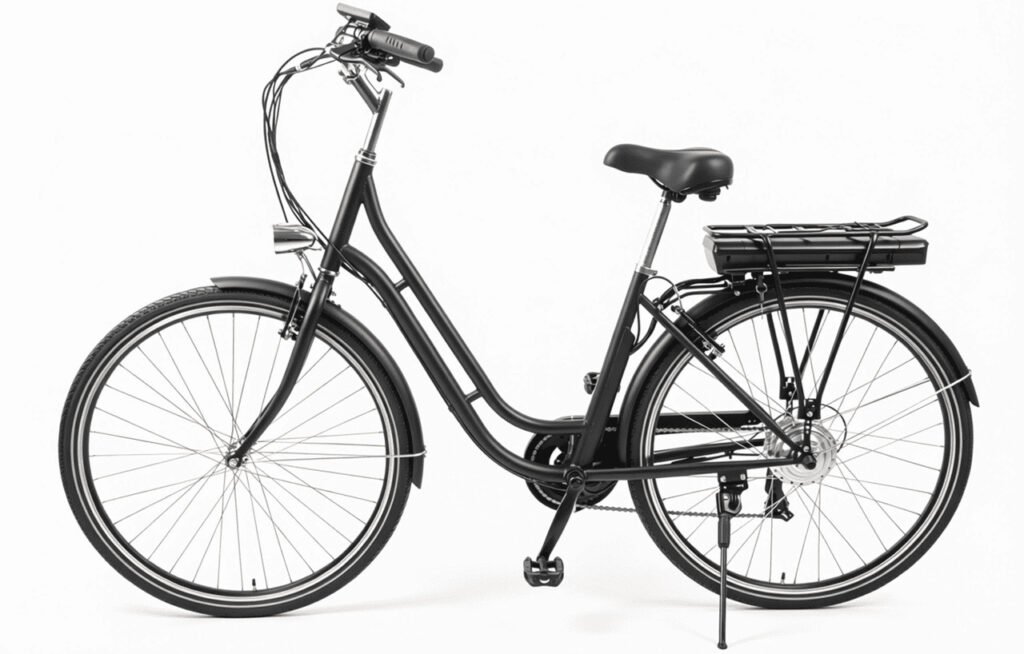

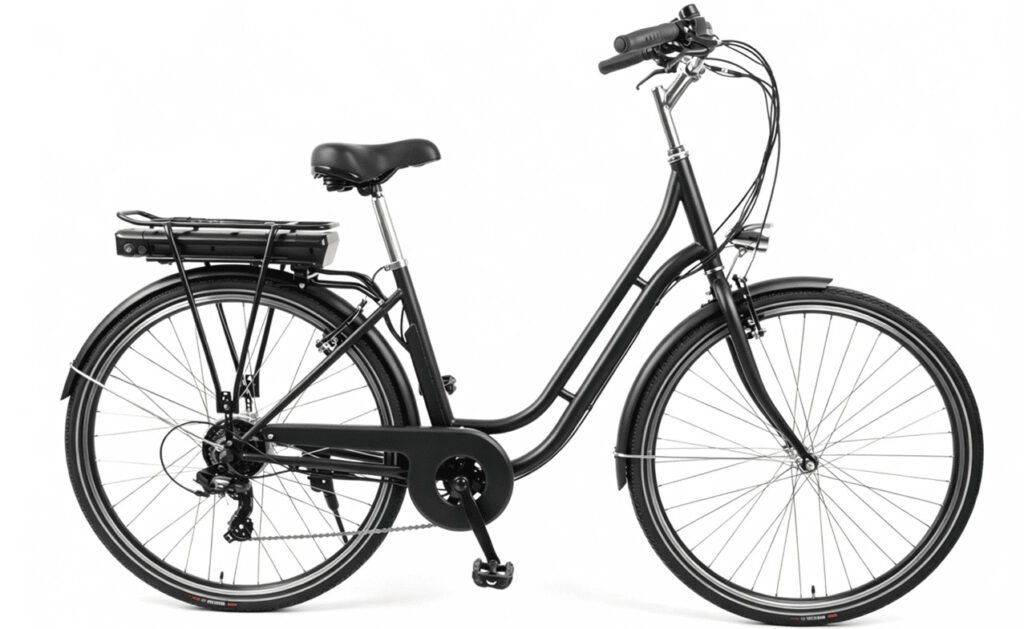

700C Steel City eBike, Shimano Nexus 7 Speed, Coaster Brake, 36V250W front motor, 36V11.6Ah rear rack lithium ion battery
Detailed technical parameters for engineering and procurement reference.
| Parameter | Value |
|---|---|
| MODEL NO. | EC700C-14 |
| FRAME | Steel, 700C City Style eBike Frame |
| FORK | 700C steel rigid fork v brake mount |
| HANDLEBAR | Steel, φ22.2*φ25.4*640W*1.6T/L=175mm, comply w/EN STD |
| STEM | Aluminium Alloy, φ25.4*180mm, rise 80mm, adjustable, comply w/EN STD |
| F/R. SHIFTER | SHIMANO SL-C3000-7, NEXUS, REVO SHIFTER |
| INTERNAL HUB | SHIMANO 7-SPEED INTERNAL HUB, NEXUS, SG-C3000-7C, COASTER BRAKE |
| FREEWHEEL | SPROCKET FOR INTERNAL HUB 16T |
| RIM | Alloy Double-Wall Rim,700C″*36H*13G, A/V nozzle |
| CHAINWHEEL/CRANK | 1/2"*3/32"*38T*170L Chainring ED, w/water-proof cap |
| CHAIN | KMC S1RB, Anti-rust Silver, 1/2"*1/8"*100L |
| CHAIN COVER | Steel 40T |
| TYRE | CST 28*1.75*2/ Black tyre w/reflective sidewall, AL puncture resistance |
| FRONT BRAKE | Promax TX-117, V Brake |
| REAR BRAKE | Promax TX-117, V Brake |
| SADDLE | Ergonomic, comply w/ROHS STD |
| SEAT POST | Steel, φ28.6*350*1.6T w/Minimium Insertion Mark, EN STD |
| PEDAL | Wellgo plastic/steel pedals, 9/16 axle, AS/BS reflector, w/L and R marks |
| FENDER | F/R 700C*50mm 235mm/ 1150mm steel fender |
| GRIP | HL 135MM/92MM comply w/ PAHS standard |
| Parameter | Value |
|---|---|
| BATTERY | Lithium Ion 36V*11.6Ah (2900mah Chinese Cell) |
| MOTOR | High Speed Brushless Front-Hub Motor, 700C, 36V250W |
| CONTROLLER | Lishui, Max Current: 15A, 36V |
| CHARGER | 36V2A DC2.1 Plug |

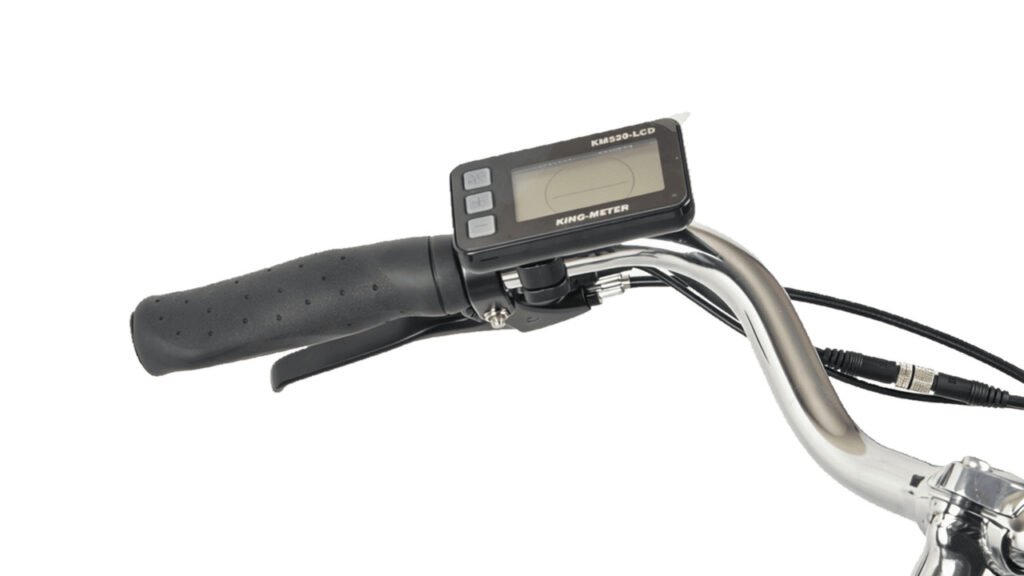

| DISPLAY | KINGMETER 529, 36V LCD Display |
| SENSOR | BIGSTONE, P24L 12 Point Magnetic Steel |
| FRONT LIGHT | BUCHEL Retro Sport E-Bike/12-48VDC, 30LUX, connecting w/lithium battery |
| MAX SPEED | 25KM/H |
| CHARGE TIME | 6 Hours |
| ESTIMATED RANGE | 40 -50 KM |
