Electric Bike
Model No. EC700C-11
EC700C-11

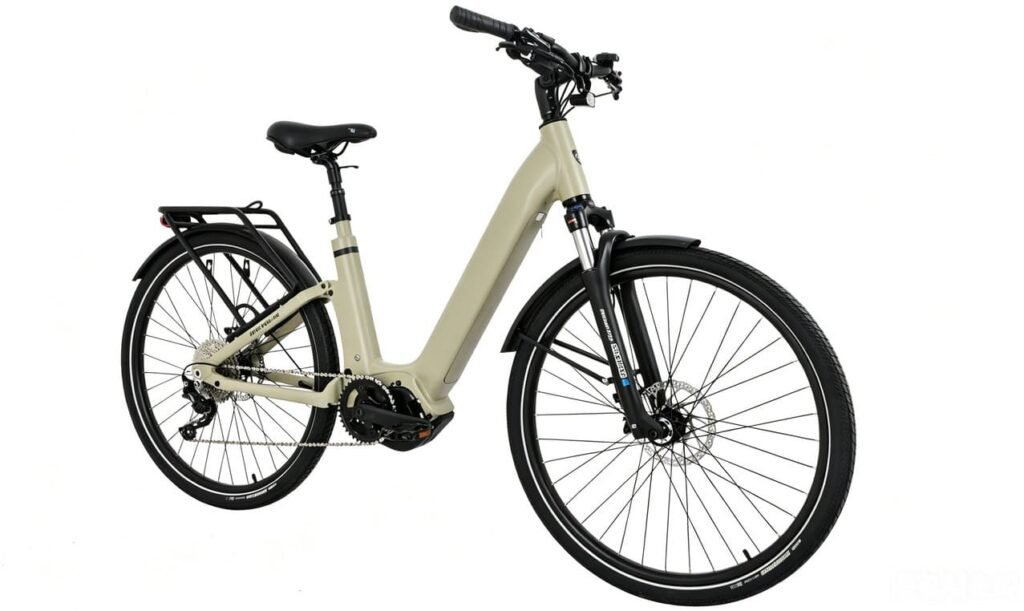

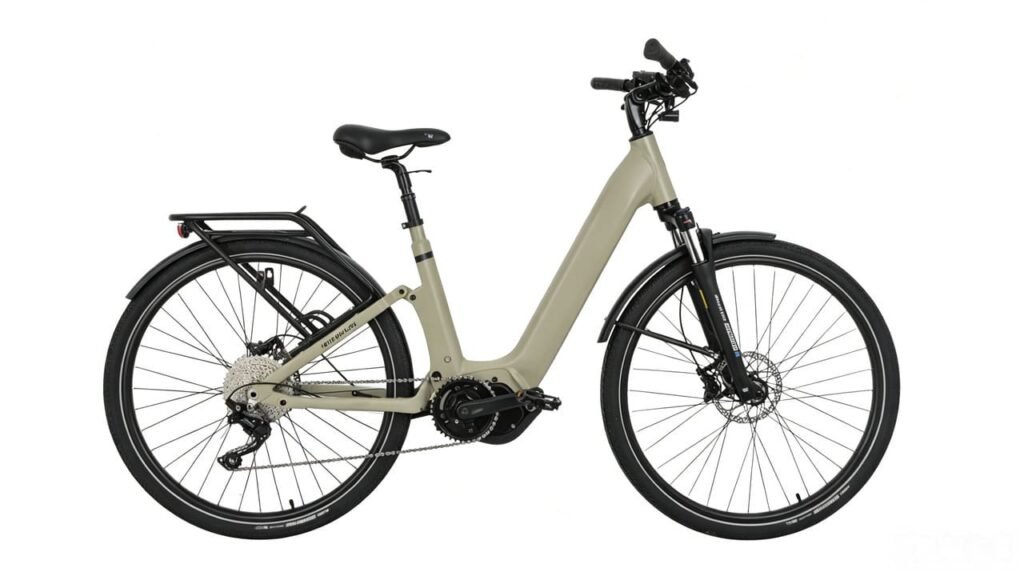

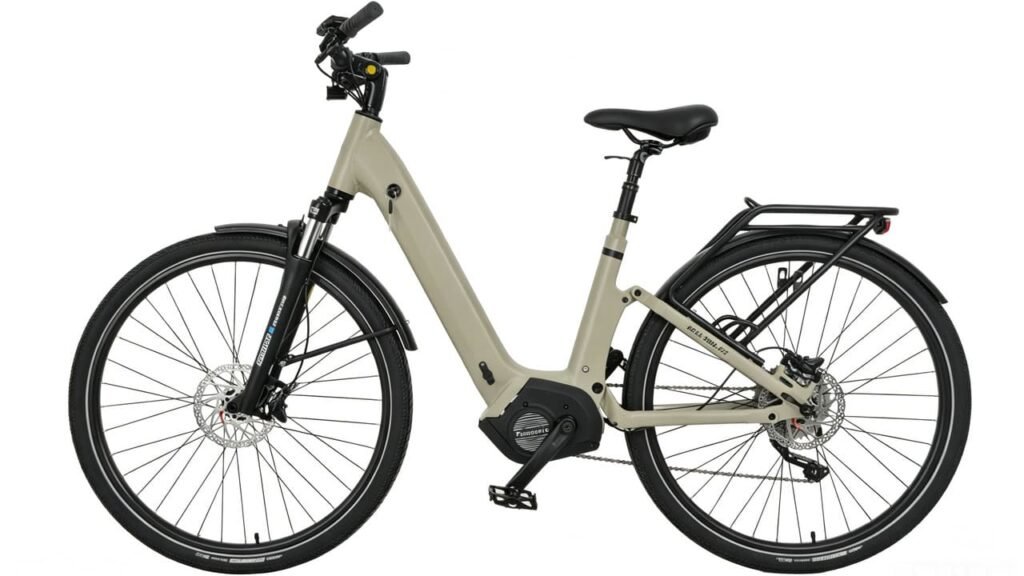

700C City Dual Suspension eBike, Shimano 10 Speed, 36V250W Panasonic GX Ultimate Mid-Drive motor, 36V20Ah Lithium ion battery
- ■ OEM/ODM customization available
- ■ EN 15194 / UL 2849 / JIS certified options
- ■ Wholesale & private-label programs available
annie@zotec-ev.com
+86 15000722592
Technical Data
Product Specifications
Detailed technical parameters for engineering and procurement reference.
| Parameter | Value |
|---|---|
| Model No. | EC700C-11 |
| Frame | Alu 700C, integrated battery, custom tubing, internal routing |
| Rear Shock | Exaform KS291-KS, coil spring hydraulic, 190*x50mm |
| Headset | FSA NO.69, semi-integrated, 1-1/8"/1.5" |
| Stem | Promax MA-544S, rise 40, ext 90mm, barbore 31.8mm, comply w/EN Std |

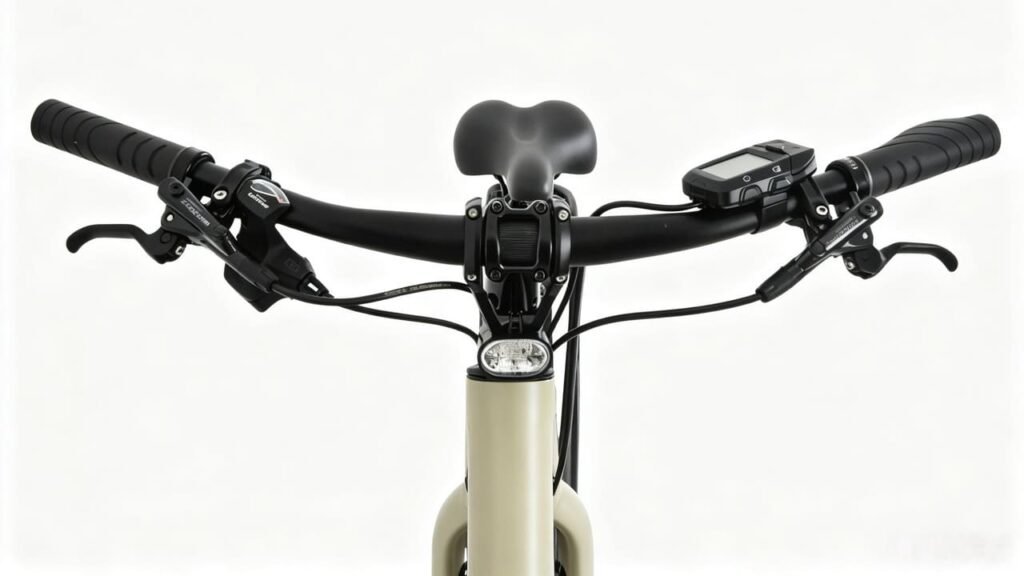

| Handle Bars | Promax HB-T319TP, rise 16mm, 30°, 640mm, comply w/EN Std |
| Grips | Velo VLG-1389D3(S), 133mm, Hard plastic/ Gel black (A25), comply w/PAHS Std |
| Brakes | Shimano M6100, Hydraulic Disc Brake, 4 Pistons, Rotor 180/180 |
| Shift Levers | Shimano Deore SL-M6000, Papidfire-plus 10s |

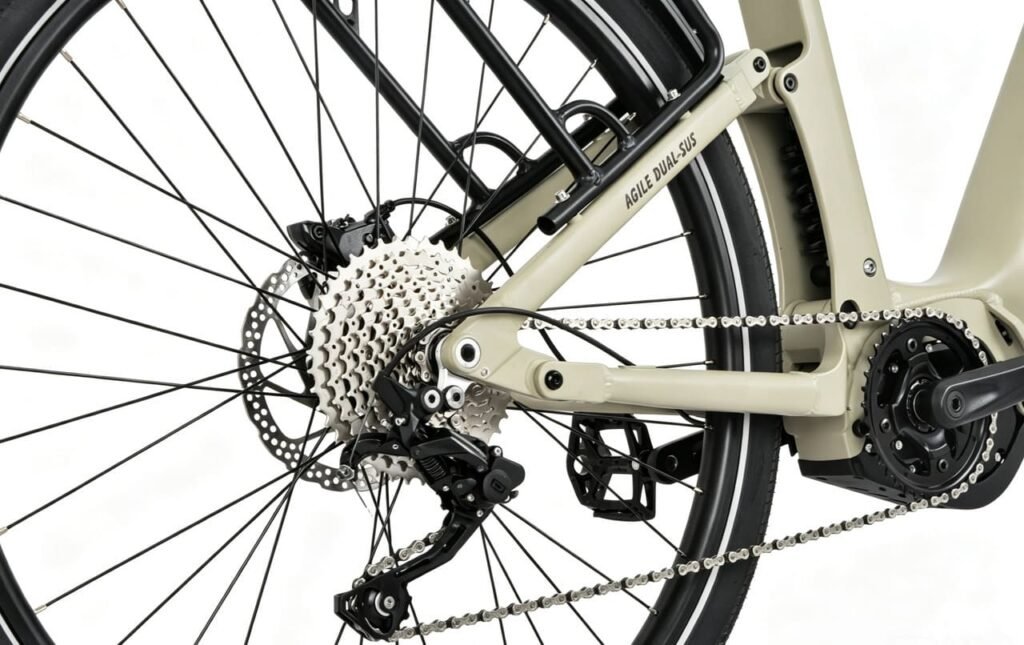

| Rear Derailleur | Shimano Deore RD-M6000, SGS, Shadow plus 10s |
| Hubs | Kunteng KT-MF1F/ KT-M4TR 2 bearings, thru-axle KT-204B, 36H |

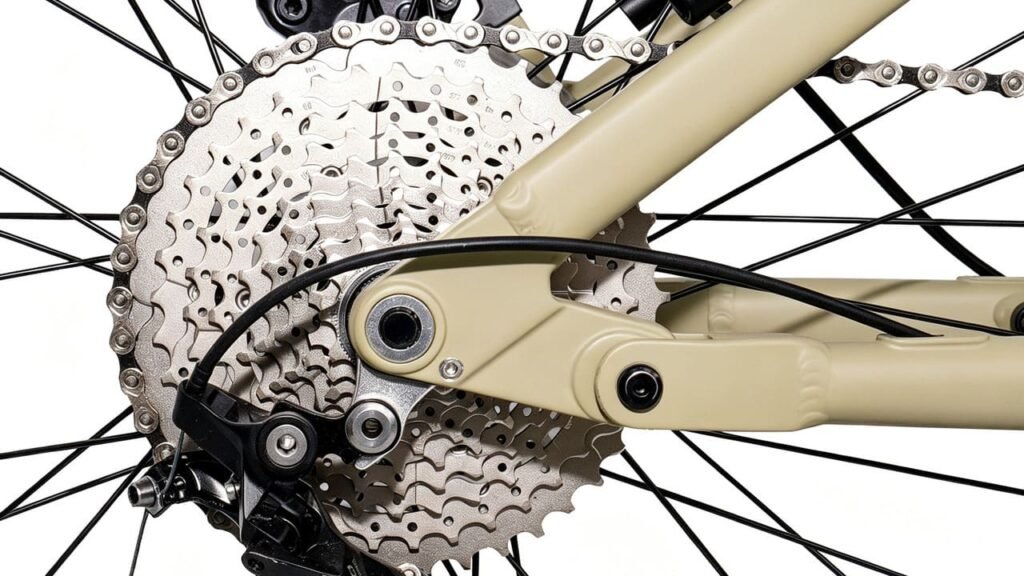

| Cassette | Shimano CS-M4100-10, 10s 11/42 |
| Chain | KMC E10 TURBO-10, 124L 10s |
| Crankset | Panasonic GX 38T Alloy crank |
| Pedals | Wellgo M224G, Alloy, 9/16" cr-mo axle, Alu Ed black w/BS reflector |
| Rims | Stars R24-3R, 700C/13G*36H/A/V |
| Tyres | Schwalbe HS 476 Smart Sam, 28"X1.75" black tyre w/reflective sidewall |
| Saddle | S.R. Freeway-A094HRO, 255x220mm black, Ergonomic, comply w/RoHs Std |
| Seat Post | Promax SP-2026(30.9) alu, suspended 100mm, 30.9x360mm, comply w/EN Std |
| Mudguard | Powercir P60NP-S 28"*60W |
| Chain Cover | NIL |
| Carrier | Alu, without brackets |
| Parameter | Value |
|---|---|
| Battery | Lithium Ion 720WH 36V20Ah Chinese 5000mah Cell, 4P10S 21700 |
| Motor | Panasonic GX Ultimate 36V 250Watt, 95N.m (Max) |
| Sensor | Panasonic Cadence & Torque |

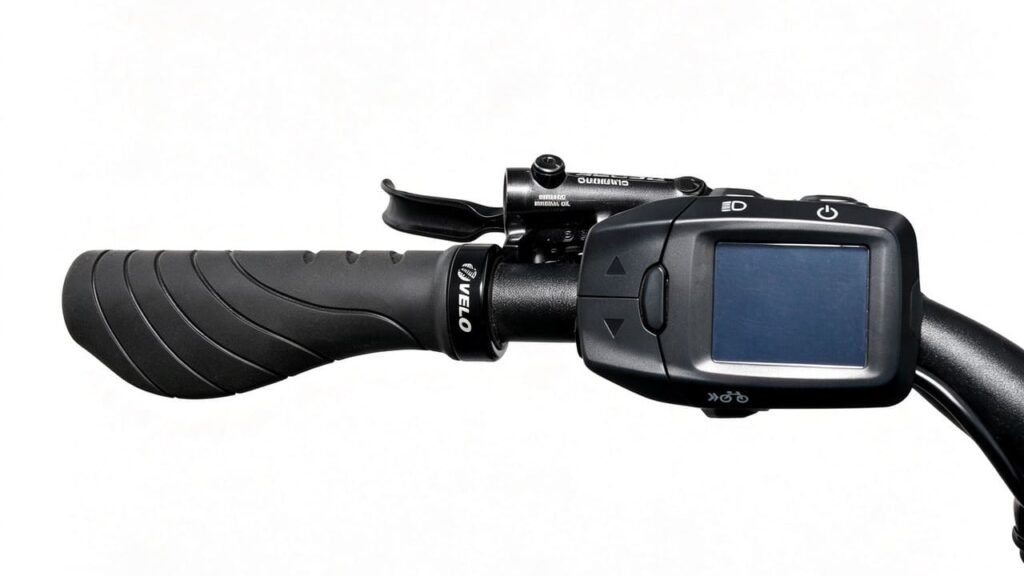

| Display | Panasonic Side Color Display LCD 36V Eco/Std/Auto/High, speed limit 25km/h |
| Controller | Panasonic GX Ultimate groupset |
| Throttle | NIL |
| Lights | Spanninga F: AXENDO 30+ led 30 lux - R: Elips LED lightguide |
| Max Assisted Speed | 25km/h |
| Charging time | 7 hrs |
| Battery Distance | 100 KM |
