Electric Bike
Model No. EC700C-04
EC700C-04
700C City/Road eBike 36V250W rear hub motor, 36V13Ah Lithium ion battery
- ■ OEM/ODM customization available
- ■ EN 15194 / UL 2849 / JIS certified options
- ■ Wholesale & private-label programs available
annie@zotec-ev.com
+86 15000722592
Technical Data
Product Specifications
Detailed technical parameters for engineering and procurement reference.
| Parameter | Value |
|---|---|
| Model No. | EC700C-04 |
| Frame material | Aluminium alloy |
| Wheel size | 700C |
| Fork | Zoom Suspension Fork, 730P, threadless, 700C* 28.6*25.4*245mm, w/mechanical lock-out |
| Handle Bars | ZOOM Aluminum Alloy, MTB-AL-320BTFOV/ISO-M, 700mm comply w/ EN STD |
| Stem | ZOOM Aluminum Alloy, TDS-D299N-8/FOV/EN-C, Adjustable, H41/EXT=105MM, comply w/ EN STD |
| Front Shift Levers | Shimano SL-M315-L, LEFT, 3-SPEED RAPIDFIRE PLUS |
| Front Derailleur | Shiamno FD-TZ510-DS6, FOR 3 (FRICTION)X7/6, DOWN-SWING, DOWN-PULL |
| Rear Shift Levers | Shimano SL-M315-8R, RIGHT, 8-SPEED RAPIDFIRE PLUS |
| Rear Derailleur | Shimano ARDM310DLC Altus, 8 Speed |

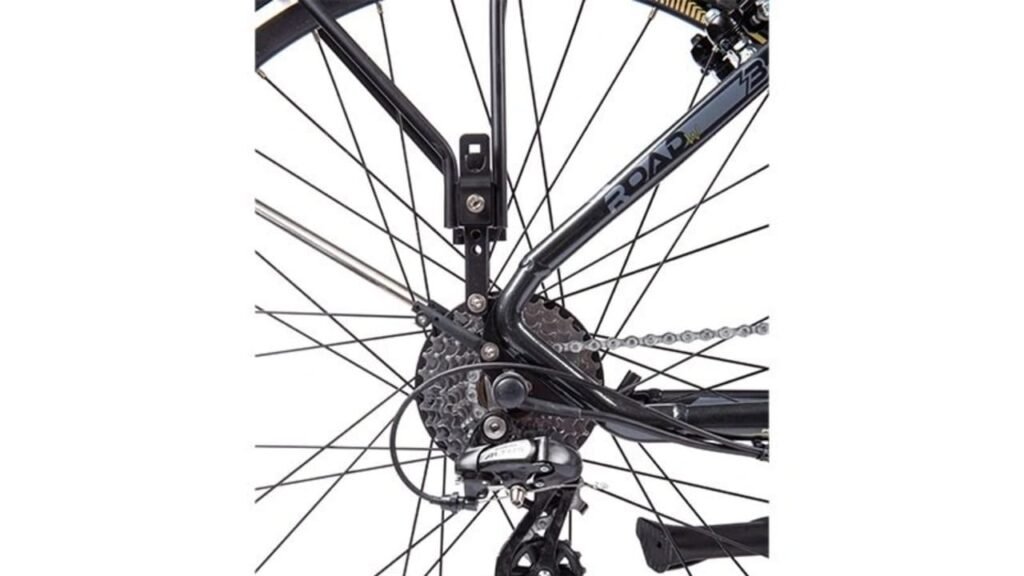

| Freewheel/ Cassette | Tri-diamond, FW-238CP 9 speed, 13-32T |
| Chainwheel/Crank | Wheeltop TCRF4-SMC(G4RE)(LFG), 1/2"*3/32"*28T*38T*48T*170L, Steel/Alloy |
| Chain | KMC Z8.1RB, 1/2"*3/32"*114L 8 Speed, anti-rust |
| Wheel | Aluminium double wall rim 700C"*H30mm/36H*13G/A/V nozzle |
| Front Hub | Joytech M9*100MM*108L/36H*13G/v brake, alloy |
| Rear Hub | w/Motor |
| Tyre | CST C-1446, 28*1.75*2, black tyre |
| Front Brakes | Promax C310 V brake |
| Rear Brake | Promax C310 V brake |
| Grips | HL 130MM/130MM black/pink color |

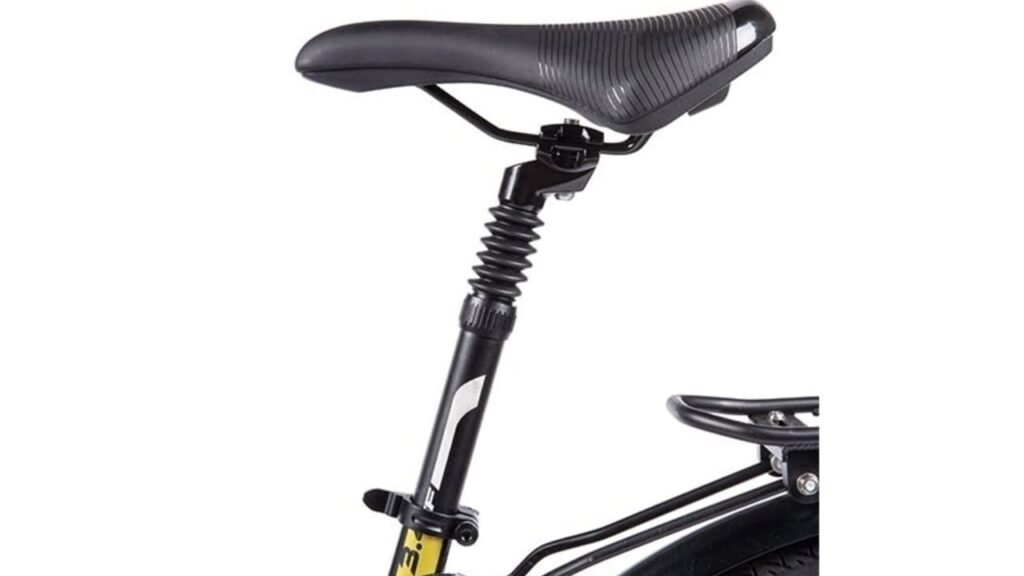

| Saddle | Ergonomic, comply w/ROSH STD |
| Seat post | ZOOM SP-C207/ISO-M, Aluminum Alloy, φ30.4*300 w/Minimum Insertion Mark, comply w/EN Std |
| Pedals | Wellgo C220DU Flat pedals, Plastic/Alloy, w/BS Reflector |
| Fender | DH-PC50, 700C*50MM, plastic fender, matt black |

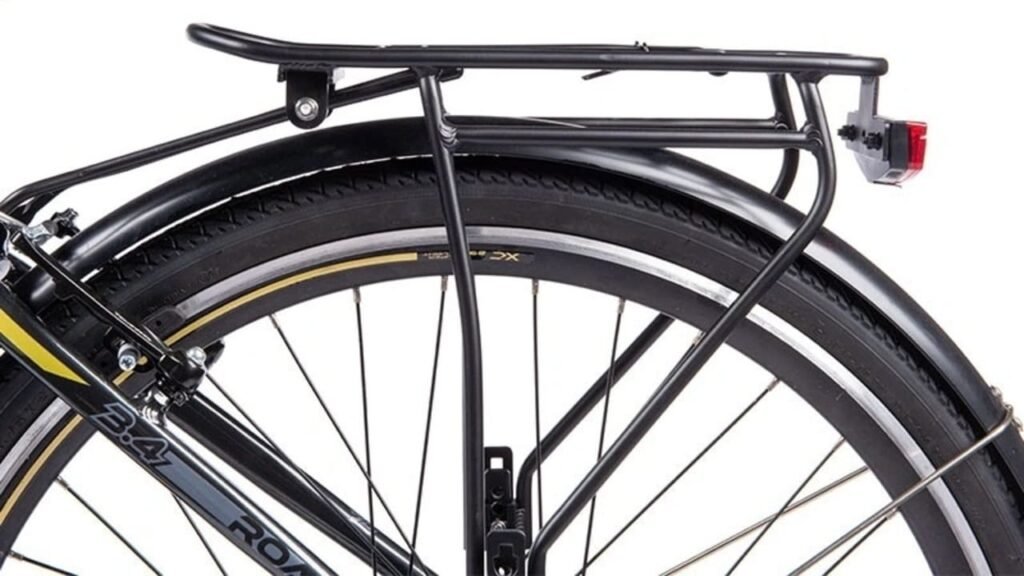

| Rear Carrier | Alloy, single-layer rear carrier, w/ISO11243:2016 MAX25KG, matt black |
| Reflectors | Front- white/ wheel -yellow reflectors, comply w/AS BS CPSC Std |

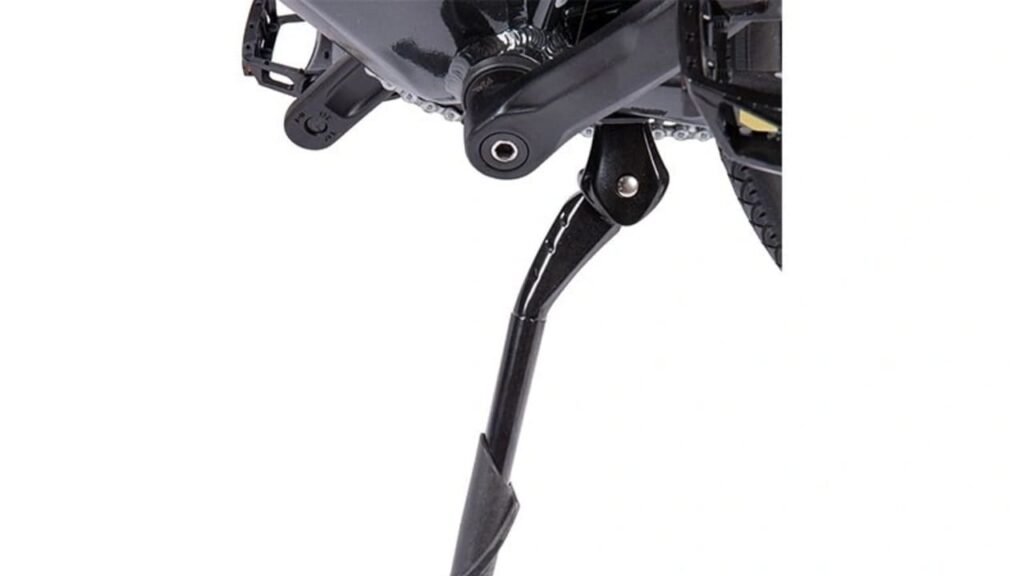

| Kickstand | Chainstay kickstand, adjustable/ L= 265-320mm, alloy |
| Parameter | Value |
|---|---|
| Display | LCD Screen/ Key-Disp, KD286 LCD digital, 0-5 Modes |
| Assistance Management | 5 levels of assistance |
| Walking Assist | Yes, 6km/h |
| Engine Brand | Bafang (SUTTO) |
| Engine Type | Rear-Hub Motor |
| Power | 250 W |
| Max Torque | 35 N.m |
| Battery | 36V13AH / 468Wh (Samsung 2600mah) |

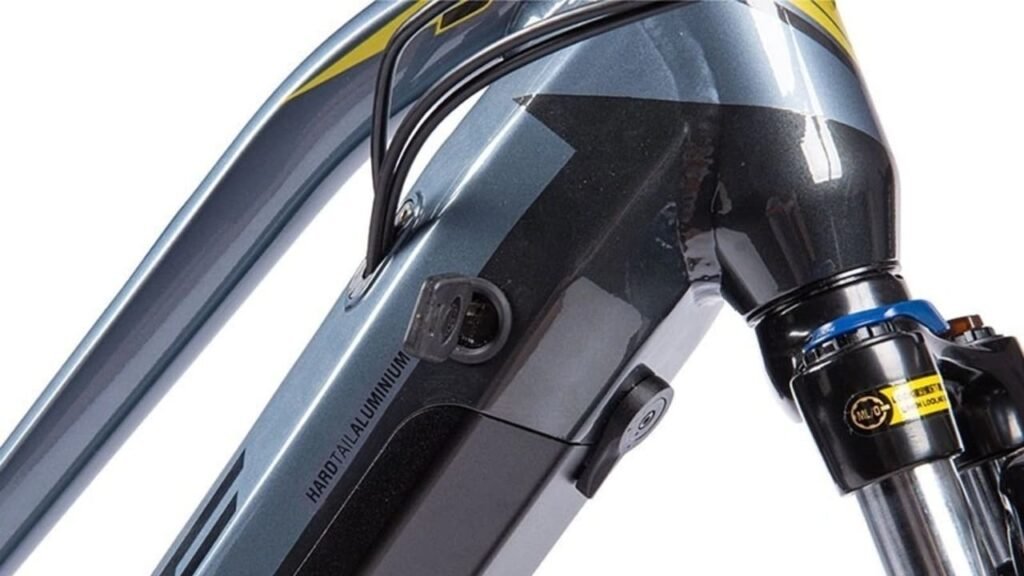

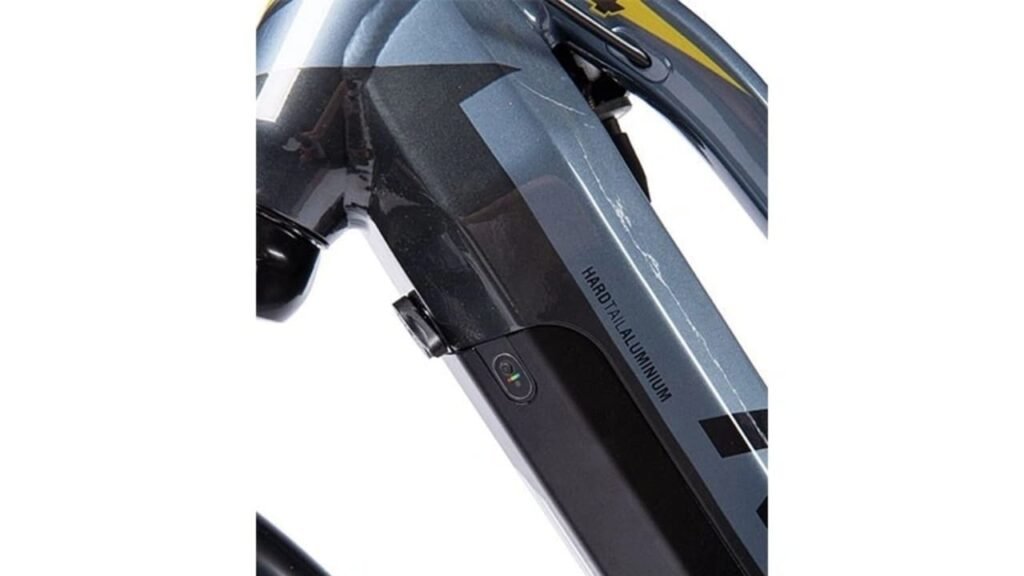

| Battery Type | Integrated battery |
| Battery Distance | 60 - 80KM |
| Battery Charger | 36V2Ah DC2.1, comply w/EN Std |
| Charging Time | 6 -7 hours |
| Battery Lifetime | >500 cycles |
| Controller | Lishui 36V15±1A |
| Pedal Sensor | Speed Sensor, Bigstone P24L 24 pulse |

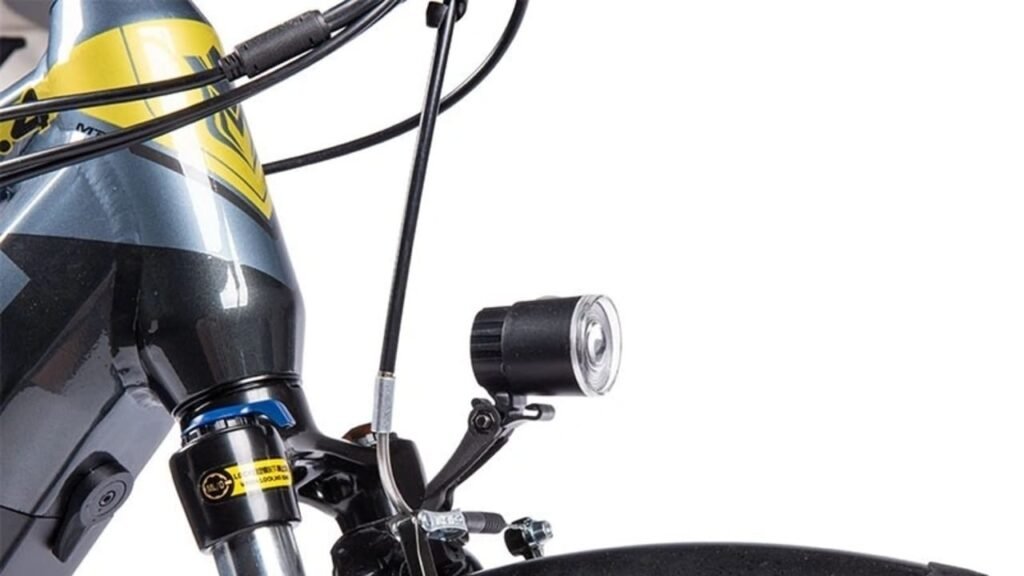

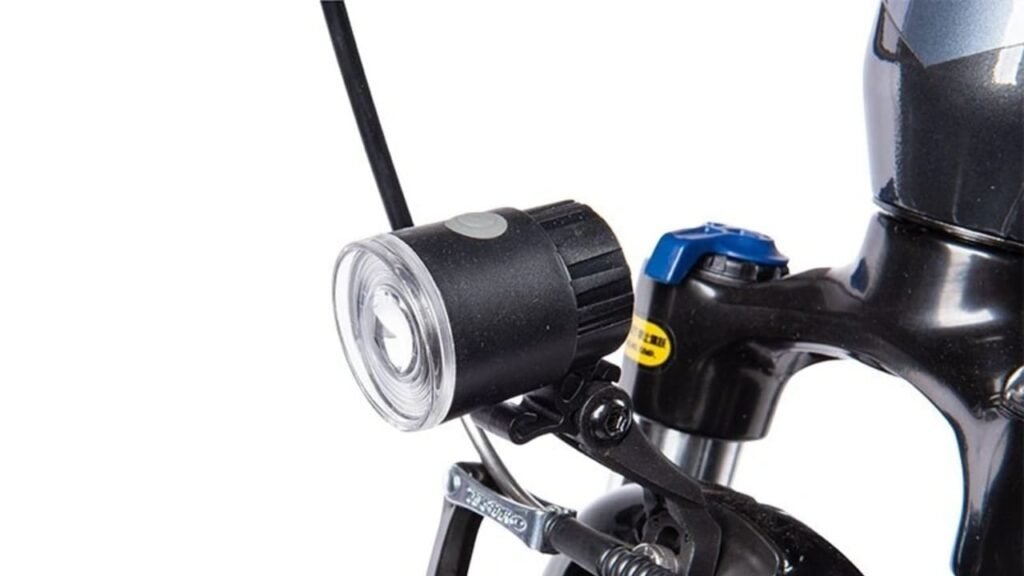

| Front Light | Ext. battery powered, XC-153W, LED light, comlpy w/EN std |
| Rear Light | Ext. battery powered, XC262, LED light, comly w/EN std |
