Electric Bike
Model No. EC700C-03

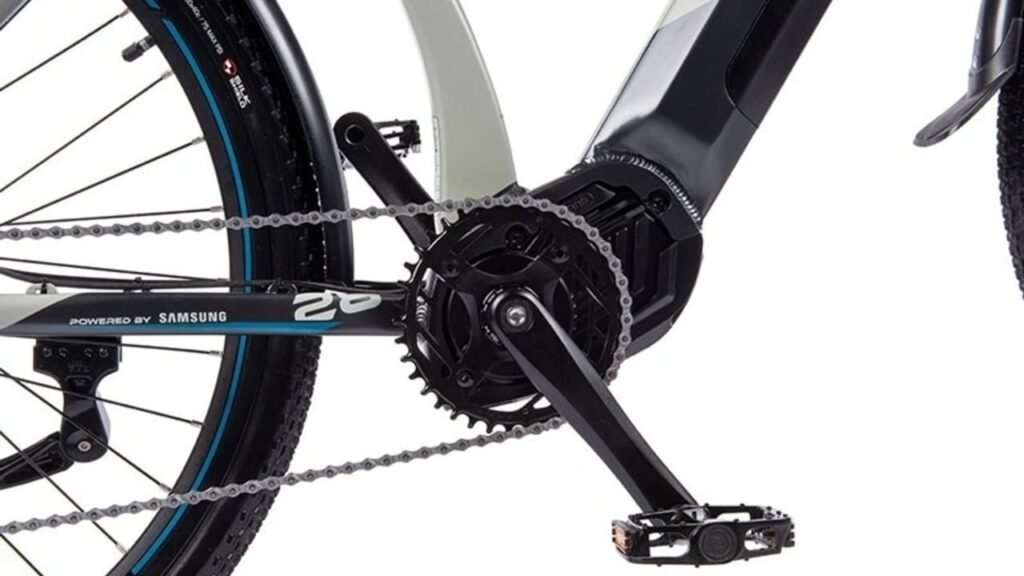

EC700C-03
700C City/Road eBike 36V250W mid-drive motor, 36V17.5Ah Lithium ion battery
- ■ OEM/ODM customization available
- ■ EN 15194 / UL 2849 / JIS certified options
- ■ Wholesale & private-label programs available
annie@zotec-ev.com
+86 15000722592
Technical Data
Product Specifications
Detailed technical parameters for engineering and procurement reference.
| Parameter | Value |
|---|---|
| Model No. | EC700C-03 |
| Frame material | Aluminium alloy |
| Wheel size | 700C |

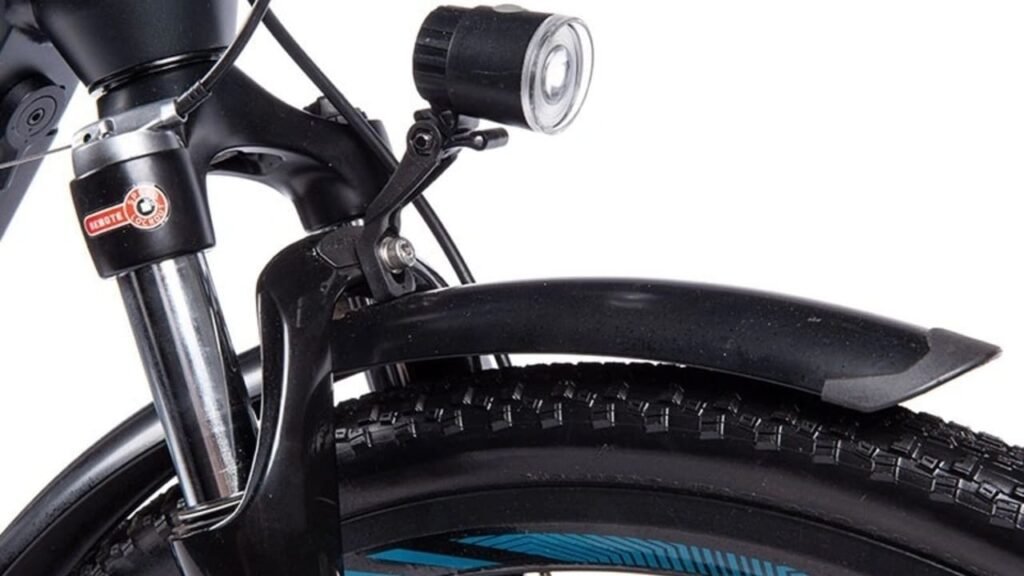

| Fork | S.R. Suntour Hydraulic Suspension Fork, SF16-NEX-RL-DS-700C-63, threaded, travel 63mm, w/Remote lockout |
| Handle Bars | ZOOM Aluminum Alloy, MTB-AL-320BTFOV/ISO-M, 700mm comply w/ EN STD |
| Stem | ZOOM Aluminum Alloy, TDS-D299N-8/FOV/EN-C, Adjustable, H=41mm/EXT=105MM, comply w/ EN STD |
| Rear Shift Levers | Shimano SL-M3100-R, ALIVIO, right 9-Speed Rapidfire Plus |

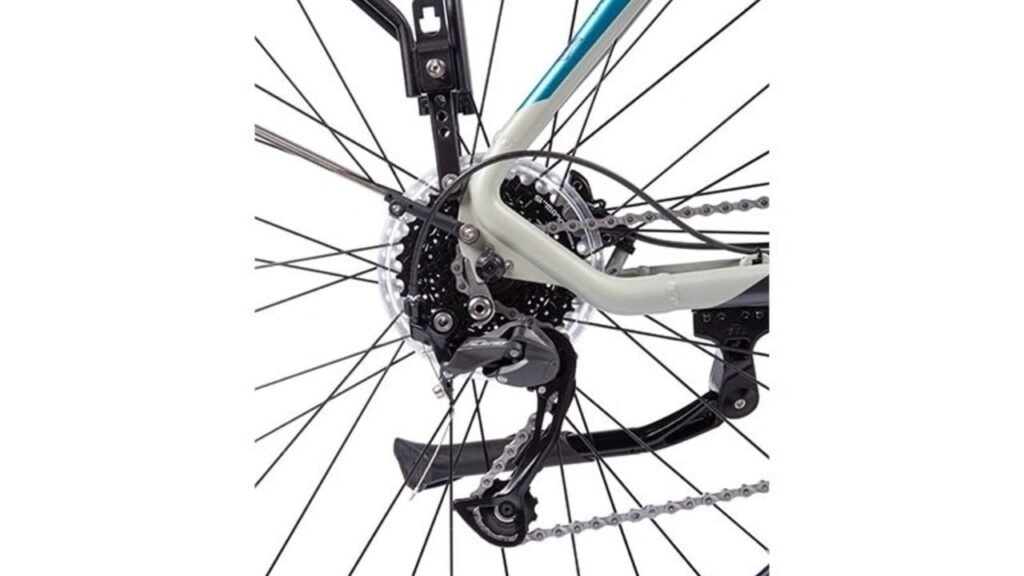

| Rear Derailleur | Shimano RD-M3100, ALIVIO, 9-Speed, Direct Attachment, Bulk |
| Freewheel/ Cassette | Shimano Cassette Sprocket, CS-HG200-9, 9-Speed |
| Chainwheel/Crank | Bafang MM G333.250.C groupset 38T, Steel/Alloy |
| Chain | KMC e9 Sport/ EPT 1/2"*11/128"*118L, 9 Speed, Mid-drive motor specialized chain |
| Wheel | Aluminium double wall rim 700C"*H30mm/36H *13G/A/V nozzle |
| Front Hub | Joytech M9*100MM*108L/36H*13G/disc brake, alloy |
| Rear Hub | Joytech M10*135*145mm/13G*36H/disc brake, 8-10 cassette specialized |
| Tyre | 700C*40C, black tyre |
| Front Brakes | Shimano MT200 Hydraulic disc brake |
| Rear Brake | Shimano MT200 Hydraulic disc brake |

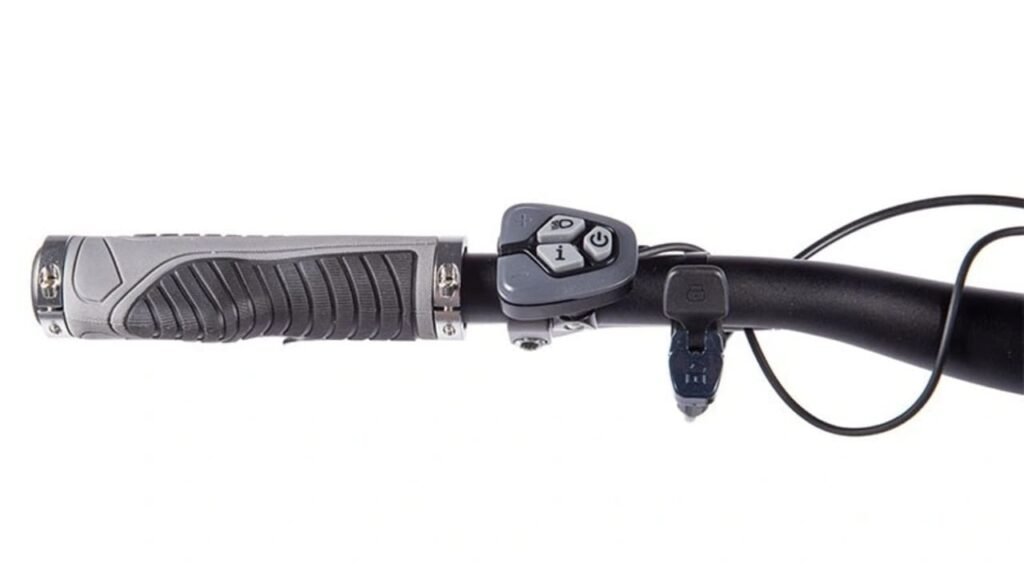

| Grips | HL 130MM/130MM black/grey color |
| Saddle | Ergonomic, comply w/ROSH STD |
| Seat post | ZOOM SP-C207/ISO-M, Aluminum Alloy, φ30.4*300 w/Minimum Insertion Mark, comply w/EN Std |
| Pedals | Flat pedals, Plastic/Alloy, w/BS Reflector |
| Fender | DH-PC50, 700C*50MM plastic fender, matt black |

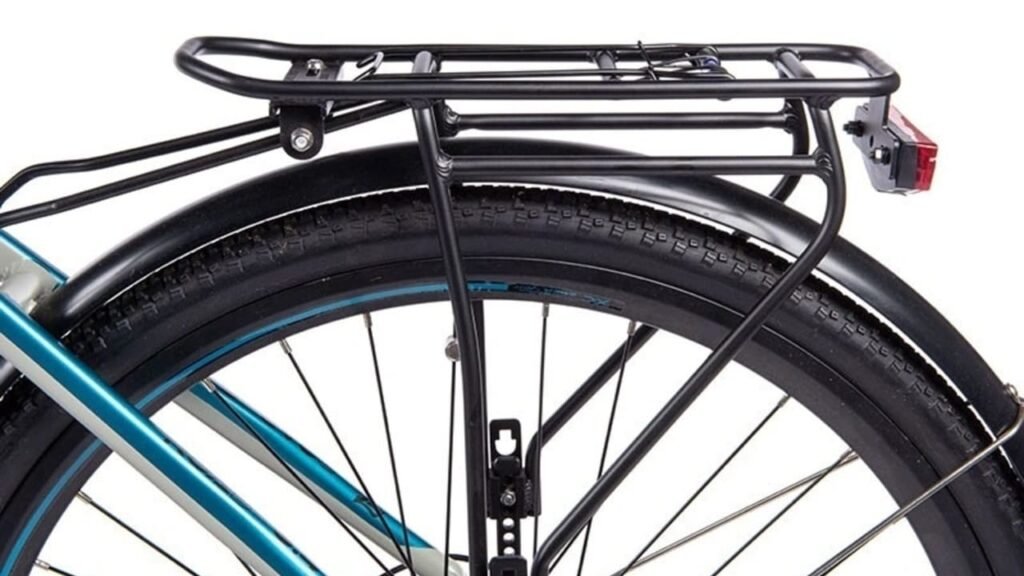

| Rear Carrier | Single-layer alloy rear carrier, w/ ISO 11243:2016 MAX25KG markings, matt black |
| Reflectors | Front- white/ wheel -yellow reflectors, comply w/AS BS CPSC Std |

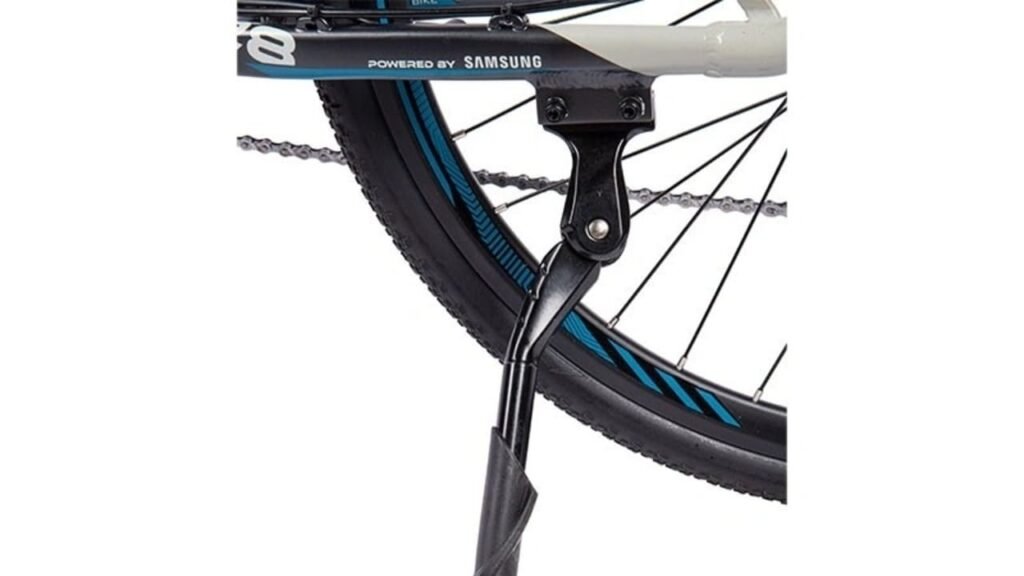

| Kickstand | Chainstay kickstand, adjustable/ L= 250-305mm/mm |
| Parameter | Value |
|---|---|

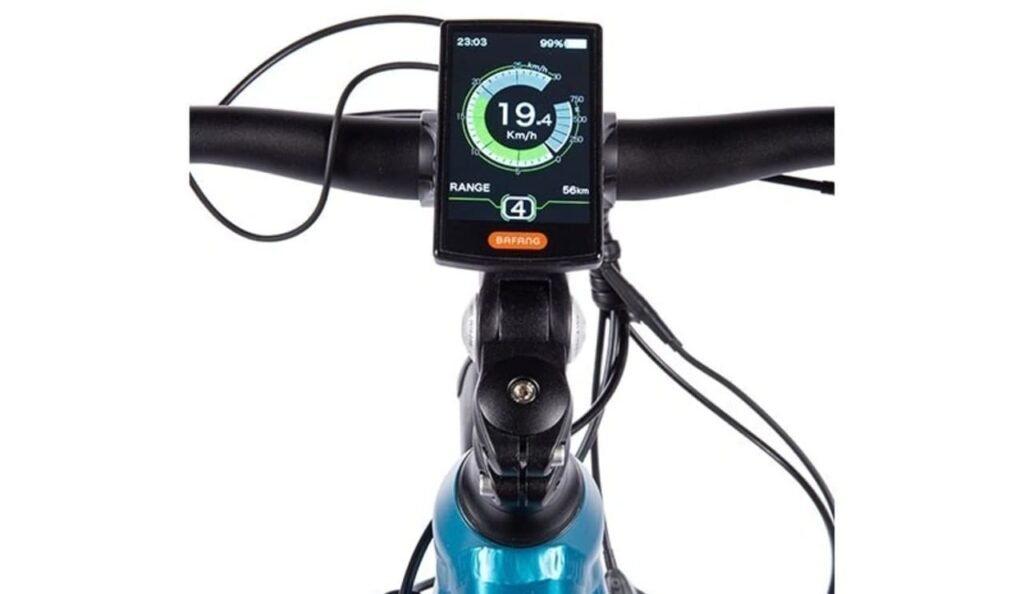

| Display | LCD Screen/ Bafang, LCD DP C190.CAN digital, 0-5 Modes |
| Assistance Management | 5 levels of assistance |
| Walking Assist | Yes, 6km/h |

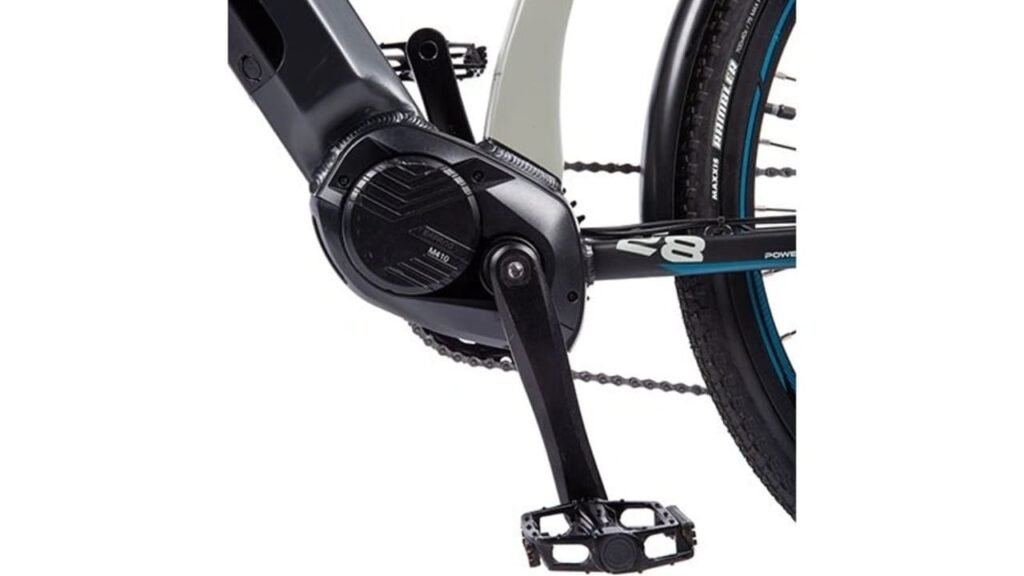

| Engine Brand | Bafang Mid-Drive MM G333.250.C |
| Engine Type | Central Engine |
| Power | 250 W |
| Max Torque | 80 Nm 100 N.m (Peak 100N.m) |
| Battery | 36V17.5AH / 630Wh (Samsung 3500mah) |

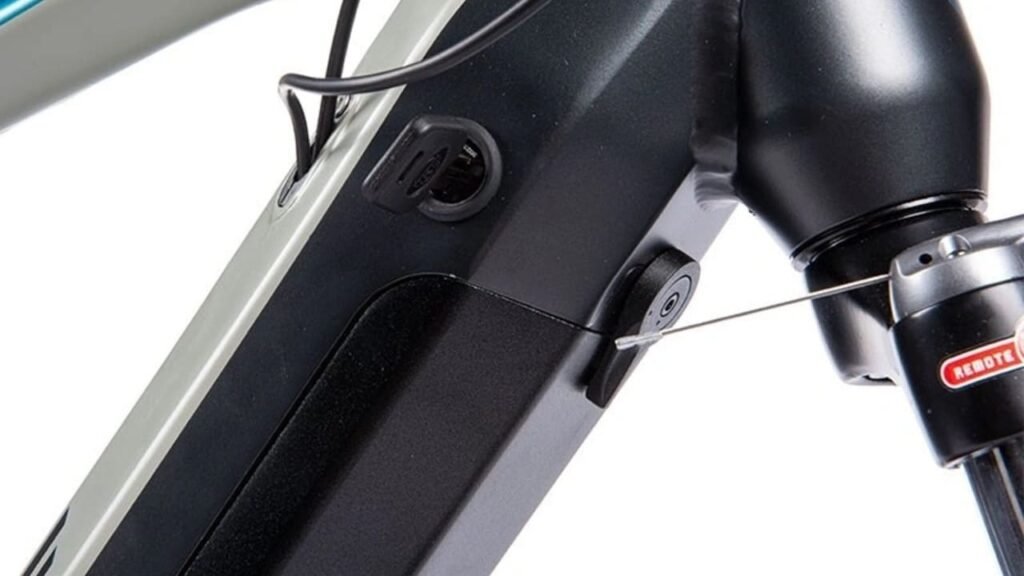

| Battery Type | Integrated battery |
| Battery Distance | 75 - 100KM |
| Battery Charger | 36V3Ah DC2.1, comply w/EN Std |
| Charging Time | 6 hours |
| Battery Lifetime | >500 cycles |
| Controller | Bafang Mid-Drive MM G333.250.C groupset |
| Pedal Sensor | Torque+Cadence |
| Front Light | Ext. battery powered, XC-153W, LED light, comply w/EN std |
| Rear Light | Ext. battery powered, XC262, LED light, comly w/EN std |
