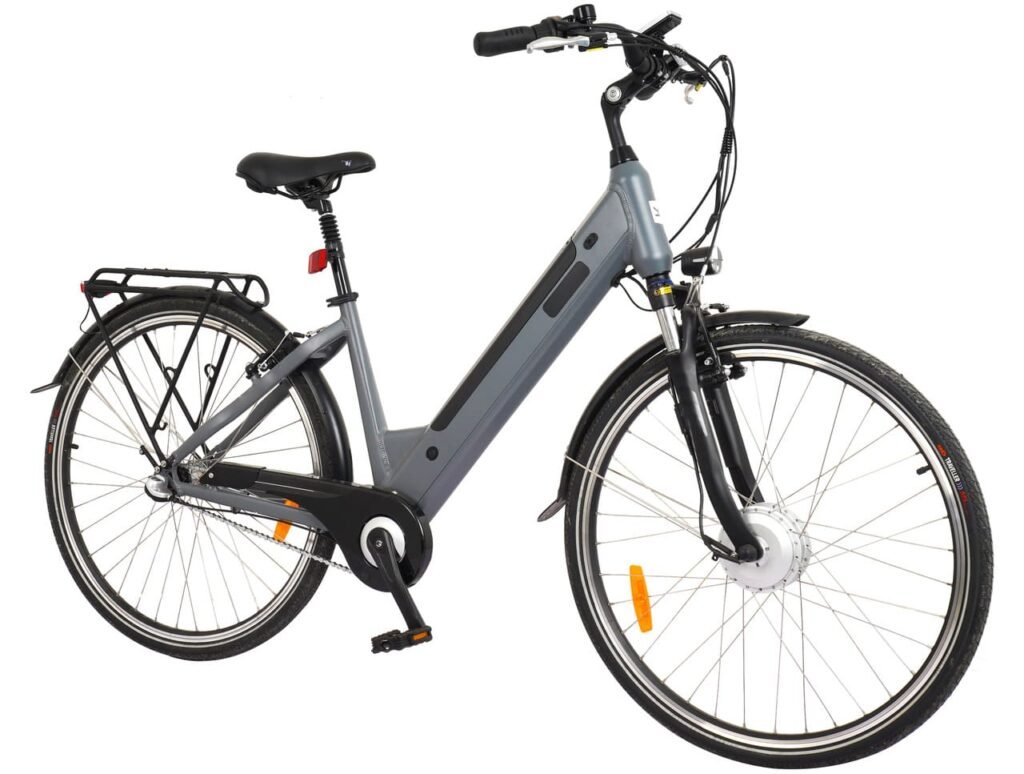

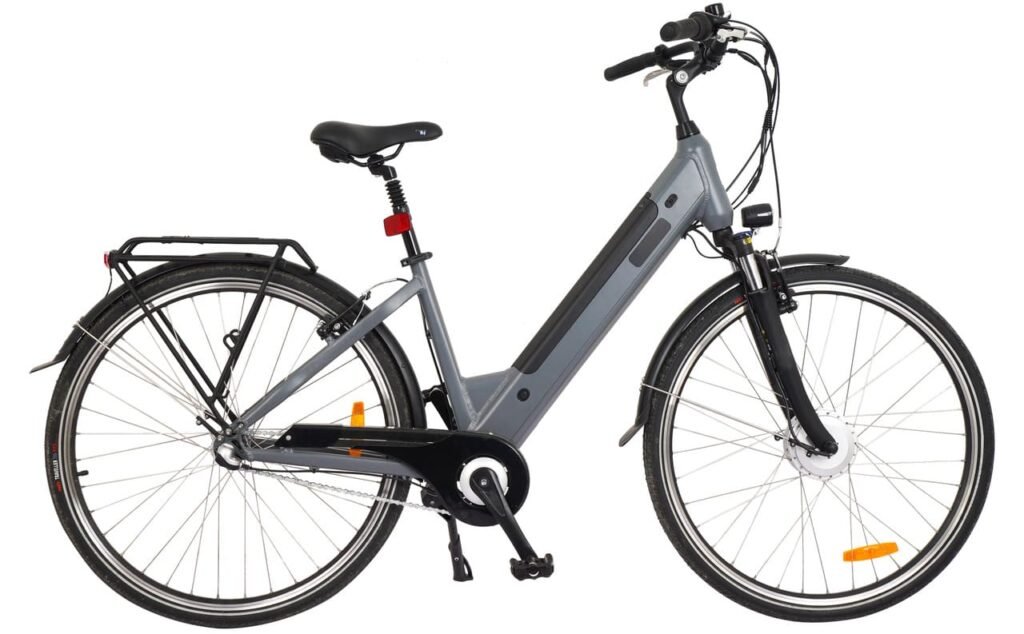

Electric Bike
Model No. EC700C-08
EC700C-08
700C City eBike, Shimano Nexus 3 speed, 36V250W front-hub motor, 36V11.6Ah Lithium ion battery
- ■ OEM/ODM customization available
- ■ EN 15194 / UL 2849 / JIS certified options
- ■ Wholesale & private-label programs available
annie@zotec-ev.com
+86 15000722592
Technical Data
Product Specifications
Detailed technical parameters for engineering and procurement reference.
| Parameter | Value |
|---|---|
| Model No. | EC700C-08 |
| Frame material | Aluminum alloy |
| Wheel size | 700C |
| Fork | Zoom Mechanical Suspension Fork, 730P AMS(ML/O)-700C, 700C 25.4*28.6*213mm, travel 50mm, w/mechanical lockout |
| Handle Bars | Zoom NR-AL-124BTFOV/EN-C, φ22.2*φ31.8*640W/B=38°, comply w/ EN STD |
| Stem | Zoom MTS-D367N-5/FOV, φ25.4*φ31.8/L=180/EXT=90MM/ adjustable, comply w/ EN STD |
| Rear Shift Lever | Shimano Nexus 3 speed hub twist shifter |
| Freewheel/ Cassette | Shimano SPROCKET FOR INTERNAL HUB 16T(2.3MM) SILVER(DX), BULK |
| Chainwheel/Crank | Prowheel PRO-A38(92), 1/2*3/32*38T*170L, steel/ alloy |
| Chain | KMC S1RB,, 1/2"*3/32"*112L |
| Wheel | Aluminium double wall rim, 700C″*36H*13G, A/V nozzle |
| Front Hub | w/Motor |
| Rear Hub | Shimano Nexus 3 speed hub, coast brake |
| Tyre | CST C-1446, 28*1.75*2 black tyre |
| Front Brake | Tektro C310 V brake |
| Rear Brake | Tektro C310 V brake |
| Grips | HL G-302-1, 135MM/92MM black, comply w/PAHS std |
| Saddle | Ergonomic, comply w/ROSH STD |
| Seat post | Zoom, Aluminum alloy, SPS-C372/ISO-C, suspension φ27.2*350, w/Minimum Insertion Mark, comply w/EN Std |
| Pedals | Wellgo C220DU, plastic/ alloy, w/BS Reflector |
| Fender | Plastic 700C*50MM /F/R 620MM / 1100MM |
| Chain Cover | Plastic C-130-3BT, 38T, black |
| Rear Carrier | Aluminium alloy 700C mark w/ ISO11243-2016 MAX25KG logo |
| Reflectors | Front- white/ rear- red / wheel -yellow reflectors, comply w/AS BS CPSC Std |
| Kickstand | Aluminum alloy, adjustable, chainstay kickstand, L=270-335mm |
| Parameter | Value |
|---|---|
| Display | LCD Screen/ Kingmeter 6S-U/SGS/ 0-5 Modes |
| Assistance Management | 5 levels of assistance |
| Walking Assist | Yes, 6km/h |
| Engine Brand | SHENGYI |
| Engine Type | front motor |
| Power | 250 W |
| Max Torque | 40 Nm |
| Battery | 36V11.6Ah / 418Wh (Chinese 2900） |
| Battery Type | Integrated battery |
| Battery Distance | 50- 55KM |
| Battery Charger | 36V2A, comply w/EN Std |
| Charging Time | 6 hours |
| Battery Lifetime | >500 cycles |
| Controller | Lishui 36V*15A |
| Sensor | Speed sensor |
| Front Light | Buchel Sport LED PRO/40lux, Int. battery powered, LED light E-Bike/ 6-48V, comply w/EN std |
| Rear Light | Buchel Tivoli/ Int. battery powered, LED light E-Bike/ 6-48V, comly w/EN std |
