Electric Bike
Model No. EC700C-06
EC700C-06

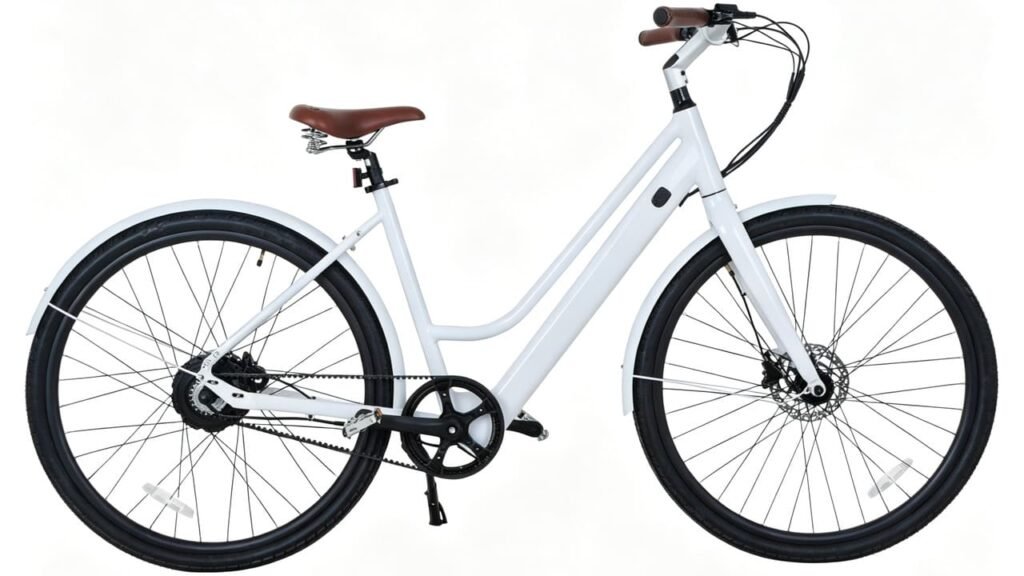

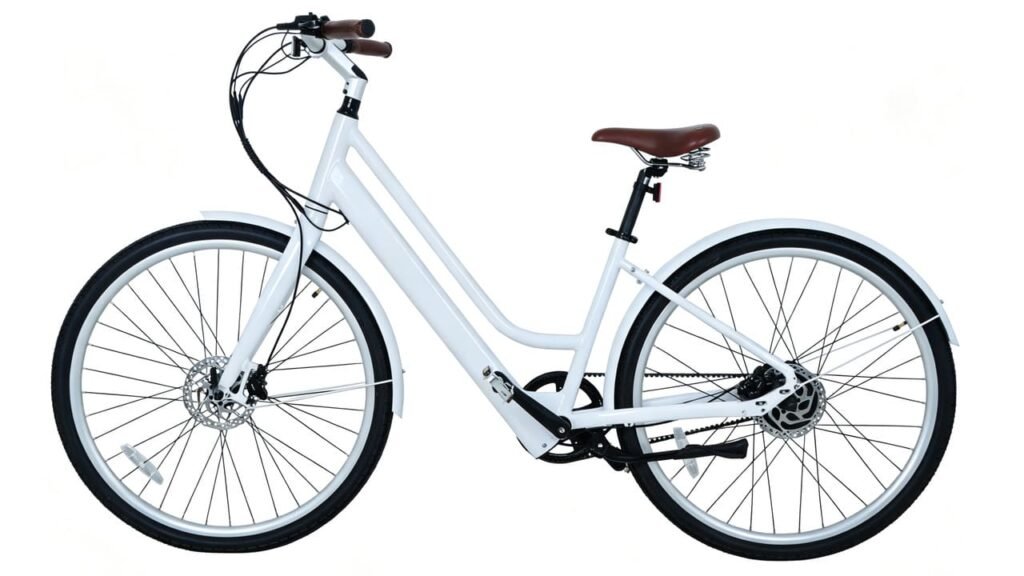

700C City eBike, carbon belt drive, 36V250W rear-hub motor, 36V10Ah Lithium ion battery
- ■ OEM/ODM customization available
- ■ EN 15194 / UL 2849 / JIS certified options
- ■ Wholesale & private-label programs available
annie@zotec-ev.com
+86 15000722592
Technical Data
Product Specifications
Detailed technical parameters for engineering and procurement reference.
| Parameter | Value |
|---|---|
| Model No. | EC700C-06 |
| Frame material | Aluminium alloy |
| Wheel size | 700C |
| Fork | Aluminium alloy, rigid fork |

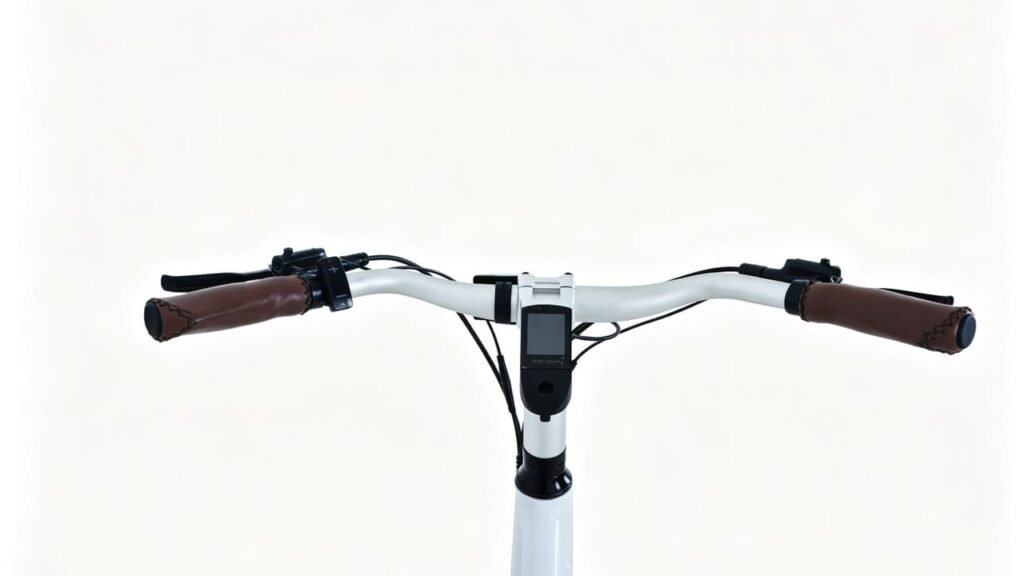

| Handle Bars | W: 520mm25.4mm H: 40mm/ comply w/EN Std |
| Stem | LCD display integrated stem, comply w/EN Std |
| Freewheel/ Cassette | Gates CDC CT1122WSE 22T threaded type (SL) |

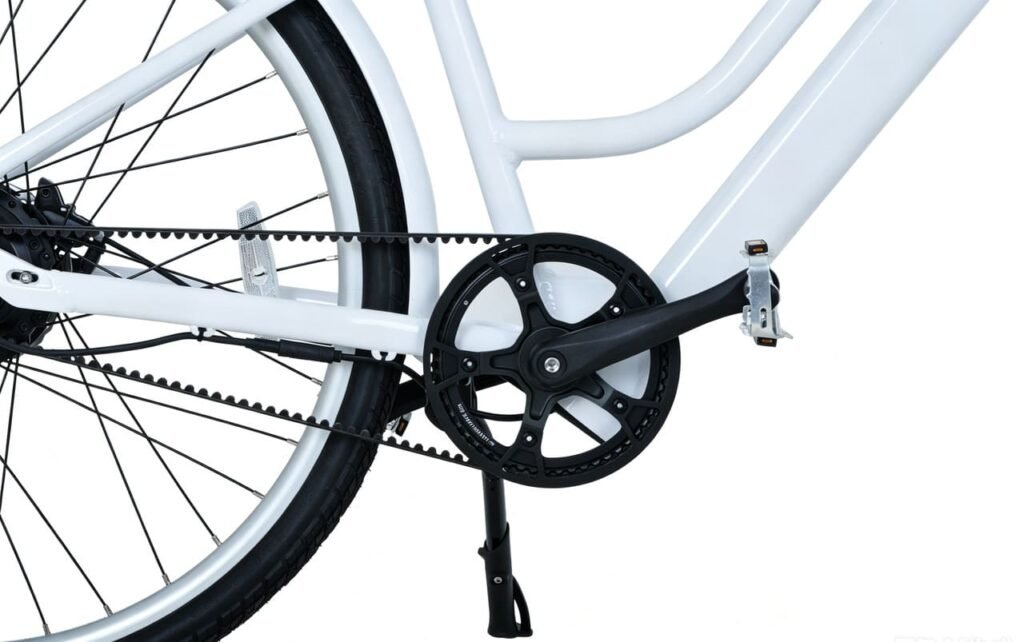

| Chainwheel/Crank | Gates CDX CT11555AA 55T BCD:130mm |
| Chain | Gates Belt 11M-122T-12CT BLACK CDN |
| Wheel | Aluminium alloy double-wall rim 700C*36H*13G A/V nozzle |

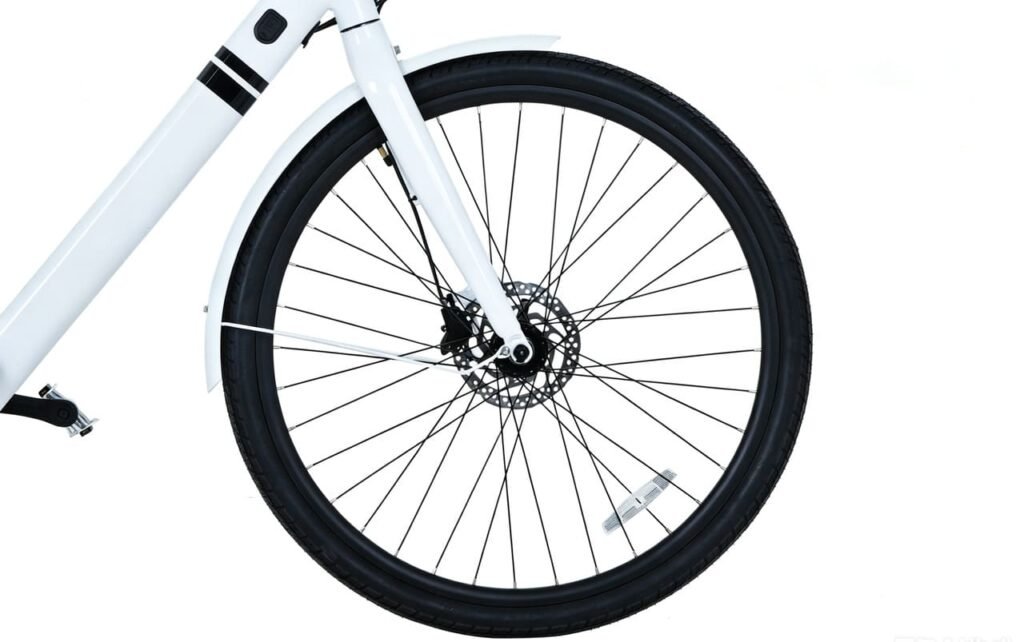

| Front Hub | Joytech D761SBT M9*100mm*108mm/36H/13G/ disc brake |
| Rear Hub | w/Motor |
| Tyre | Kenda, 700C*45C /black tyre, comply w/CPSC Std |

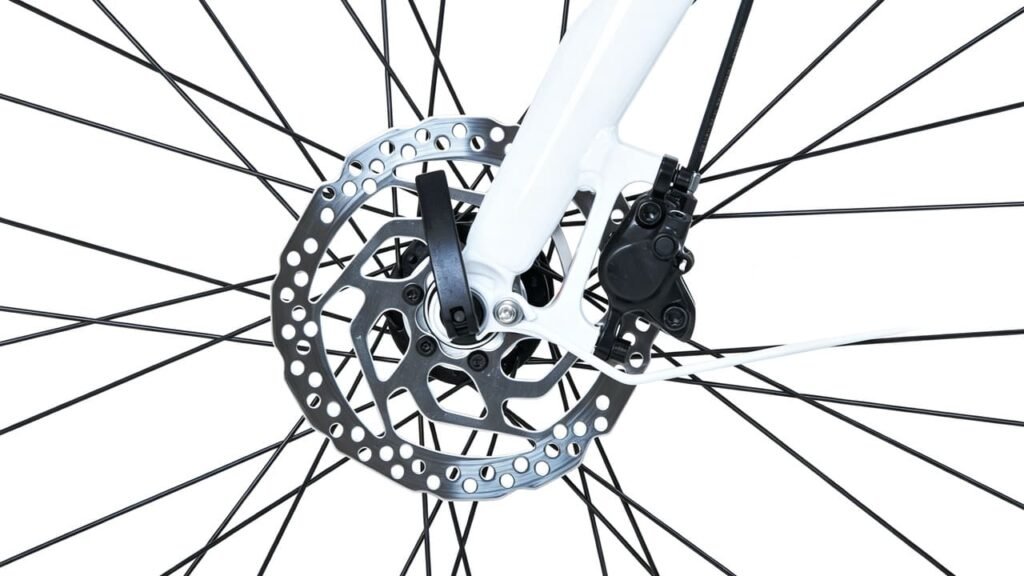

| Front Brakes | Shimano MT-200 Hydraulic Disc Brake |
| Rear Brake | Shimano MT-200 Hydraulic Disc Brake |
| Grips | HL-G310 135MM/135MM , comply w/PAHS Std |

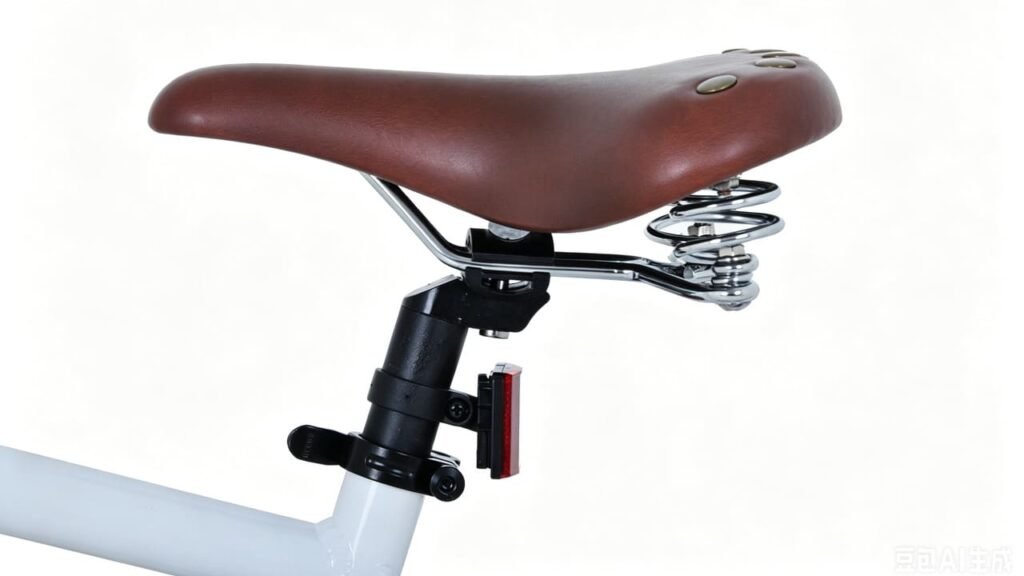

| Saddle | 264*221mm/CP Ergonomic, comply w/ROSH STD |
| Seat post | alloy φ27.2*350*2.5T, w/Minimum Insertion Mark, comply w/EN Std |
| Pedals | HF-858 alloy, 9/16" axle comply w/ AS/BS/Std |
| Fender | Steel 700C, black |
| Reflectors | Front- white/ wheel -yellow reflectors, comply w/AS BS CPSC Std |
| Kickstand | Alloy Chainstay kickstand, adjustable |
| Parameter | Value |
|---|---|
| Display | LCD Screen/ Key-Disp KD786 /SGS 0-5 Modes |
| Assistance Management | 5 levels of assistance |
| Walking Assist | Yes, 6km/h |
| Engine Brand | Shengyi |
| Engine Type | Rear-Hub Motor |
| Power | 350 W |
| Max Torque | 50Nm |
| Battery | 36V10AH /360Wh (Chinese 5000mah) |
| Battery Type | Downtube Fully Integrated Battery |
| Battery Distance | 40 - 50KM |
| Battery Charger | 36V1.8Ah DC2.1, comply w/EN Std |
| Charging Time | 5-6 hours |
| Battery Lifetime | >500 cycles |
| Controller | Lishui 36V 15±1A |
| Sensor | Torque Sensor |
