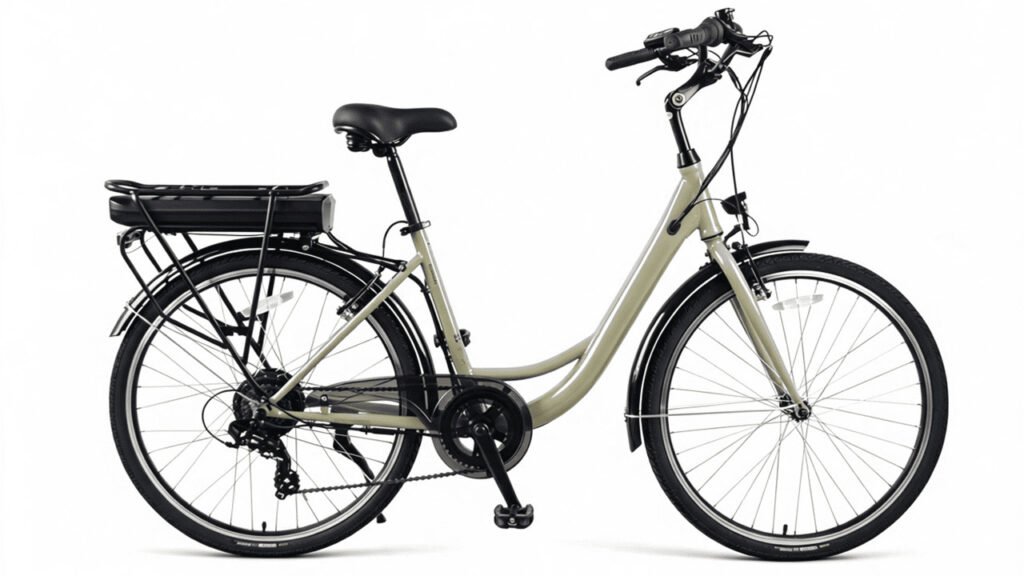

Model No. EC26-04

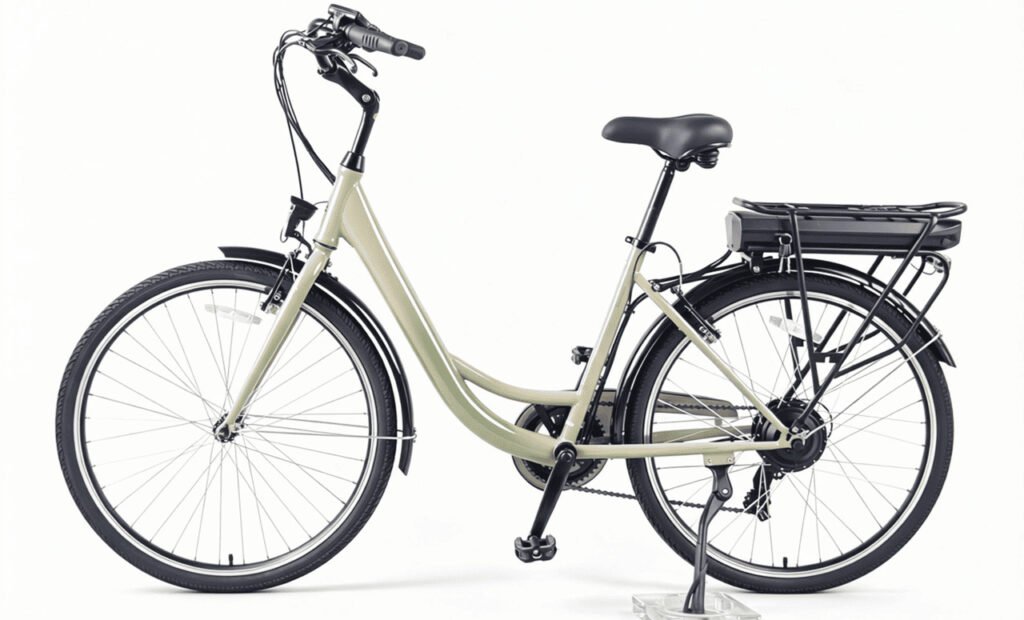

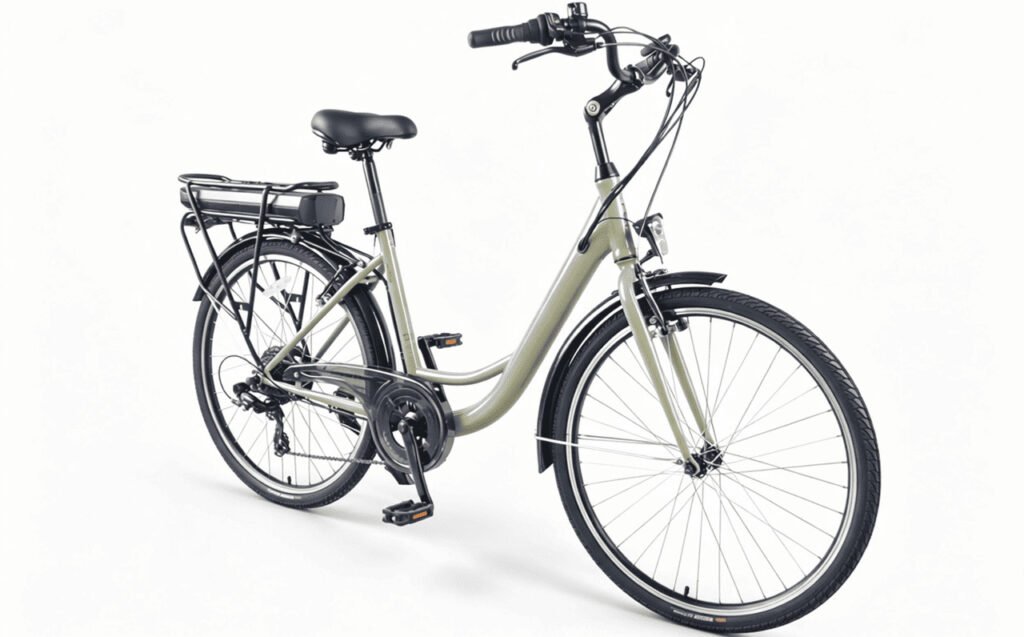

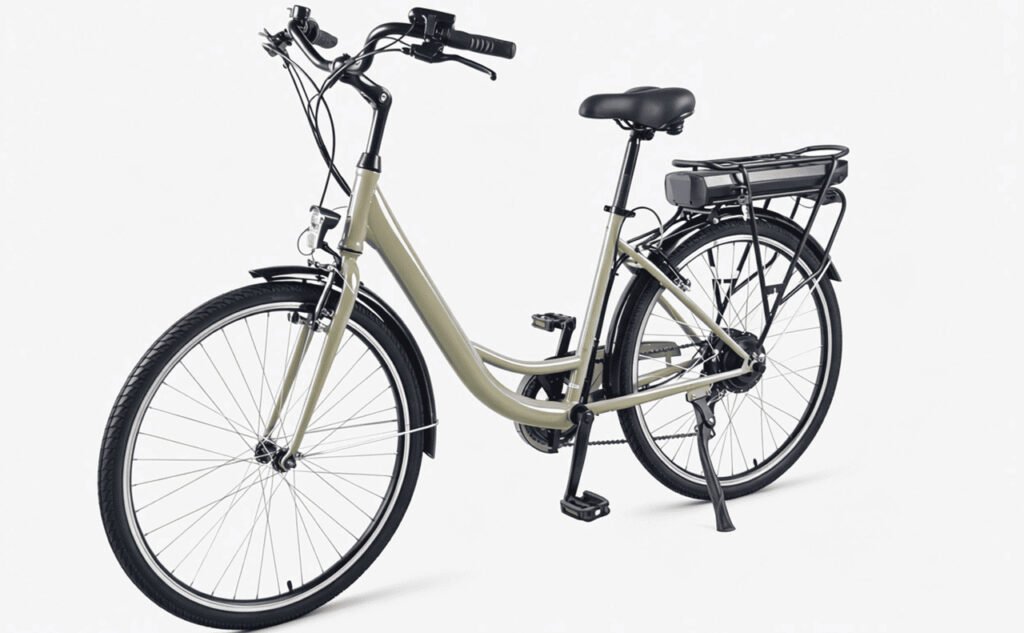

26 inch steel city eBike 36V250W rear hub motor, 36V7.8Ah rear rack Lithium ion battery
Detailed technical parameters for engineering and procurement reference.
| Parameter | Value |
|---|---|
| MODEL NO. | EC26-04 |
| FRAME | Steel, 26'' City Style Frame, Rear Carrier Battery |
| FORK | Steel Rigid Fork, 26'' |
| REAR CARRIER | Steel 26'' YL Double Layer Rear Carrier |
| KICK STAND | Alloy RH 26'', adjustable 270-335mm, Black |
| HANDLEBAR | Aluminum Alloy DNF-A812 φ22.2*25.4*2.6T,L: 163mm*45,H:69mm, W:610mm EN STD |
| STEM | PROMAX, Aluminum Alloy MQ-527 φ25.4*180L, rise 105mm, adjustable, EN STD |
| REAR SHIFTER | SHIMANO ASLRS35R7CT 7 Speed Revoshifter Shifter |

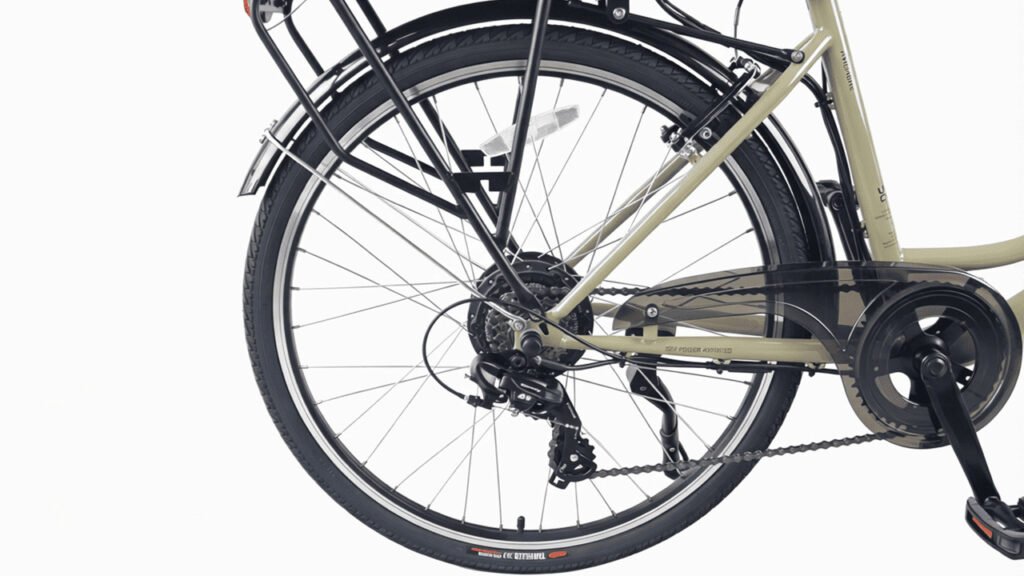

| REAR HUB DERAILLEUR | SHIMANO ARD-TY300D 7 SPEED |
| FREEWHEEL | SHIMANO AMFTZ5007428, 7S 14-28T |
| BOTTOM BRACKET | NECO B910/122.5 BC1.37*24T |
| RIM | DC, 26″*1.75*36H*13G, A/V butyl, Alloy Double-Wall Rim |
| FRONT-HUB | Alloy FAX-201F 3/8*36H*13G*100MM*145L |
| SPOKE | Steel, LEIFA 13G (UCP) |
| CHAINWHEEL/CRANK | SM, 1/2"*3/32"*42T*170L, Steel Crank |
| CHAIN | KMC Z7GY/BR, 1/2"*3/32"*110L, Brown |
| CHAIN COVER | Plastic (ABS) HUIYE CG-3-100-44T |
| TYRE | CST , 26"*1.75, Black |
| FRONT BRAKE | PROMAX TX-117 V Brake |
| REAR BRAKE | PROMAX TX-117 V Brake |

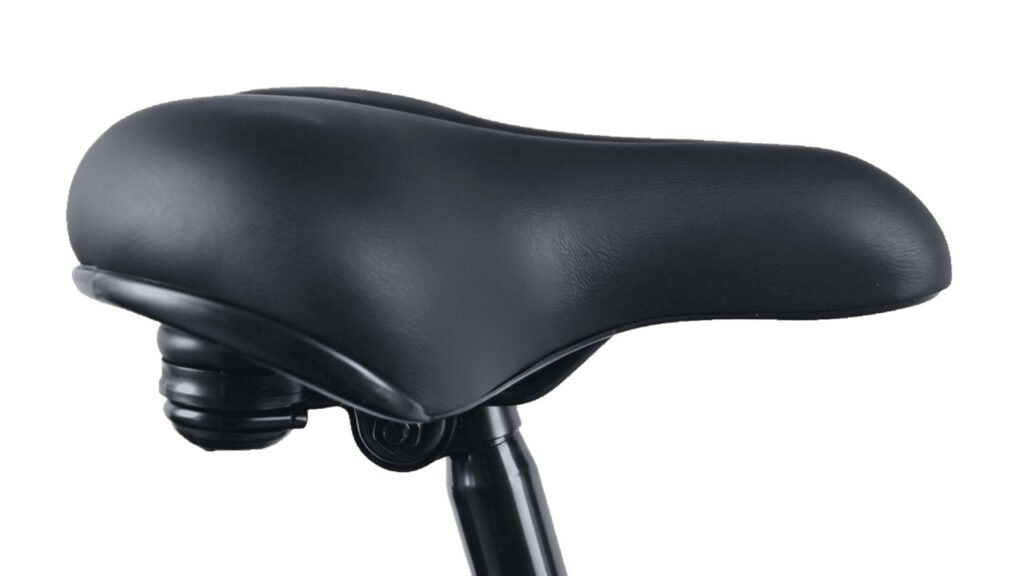

| SADDLE | HL, Ergonomic, comply w/ROHS STD |
| SEAT POST | JY Steel φ28.6*350*1.6T, w/Minimium Insertion Mark, EN STD |
| SEAT CLAMP | GINEYEA Alloy φ31.8 quick release clamp |
| PEDAL | WELLGO pedals, 9/16 axle, w/K-MARK BS reflector, w/L and R marks |
| FENDER | Steel 26''*52MM (WIDTH) F/R Fenders |
| GRIP | HL 135MM/92MM comply w/ PAHS standard |
| BELL | ANNUO ID=35MM, Alloy Bel |
| Parameter | Value |
|---|---|

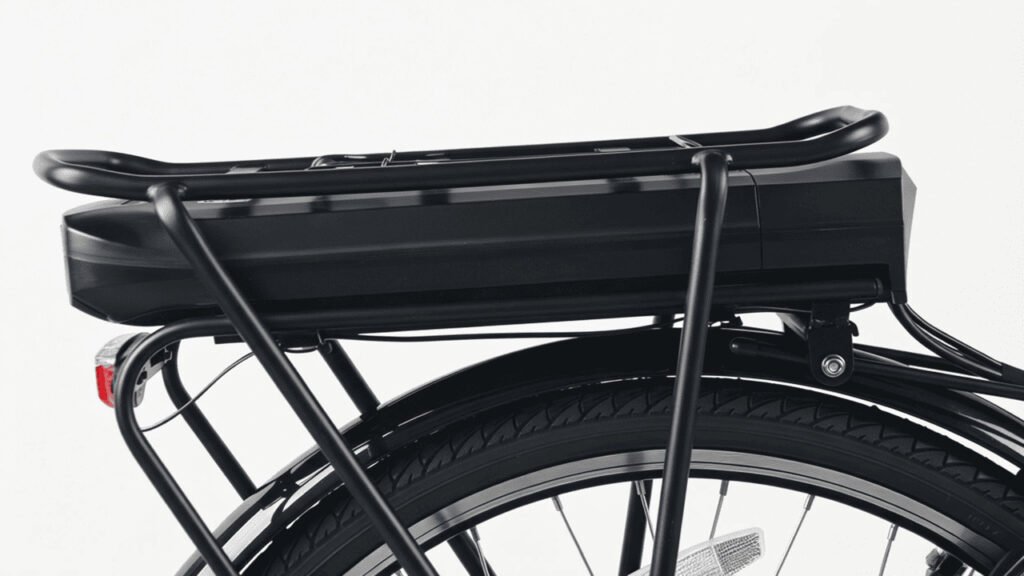

| BATTERY | Lithium Ion 36V7.8H (36V2600mah Chinese Cell) |
| MOTOR | MXUS Rear-Hub Motor, 26"*36V*250W/max speed 25km/h |
| CONTROLLER | 36V comply with EN15194:2017 STD |
| CHARGER | D-POWER, 36V2A DC2.1 Plug |

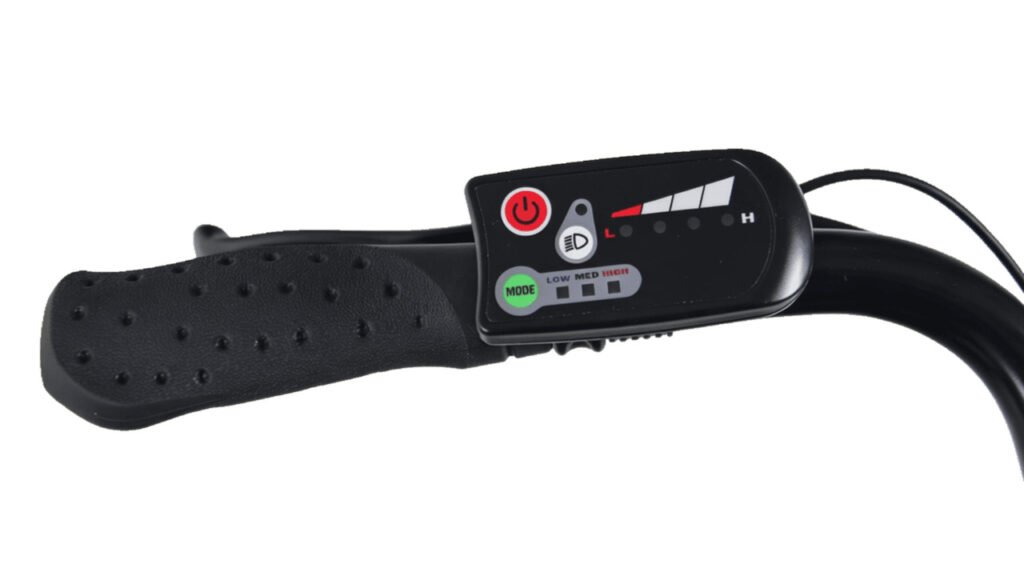

| DISPLAY | KINGMETER JT790/comply w/EN15194:2017 36V LED Display |
| SENSOR | BIGSTONE P14L left-side assembly |
| FRONT LIGHT | BUCHEL Uni LED/15LUX, 12-48V w/K-MARK (connected w/lithium ion battery) |

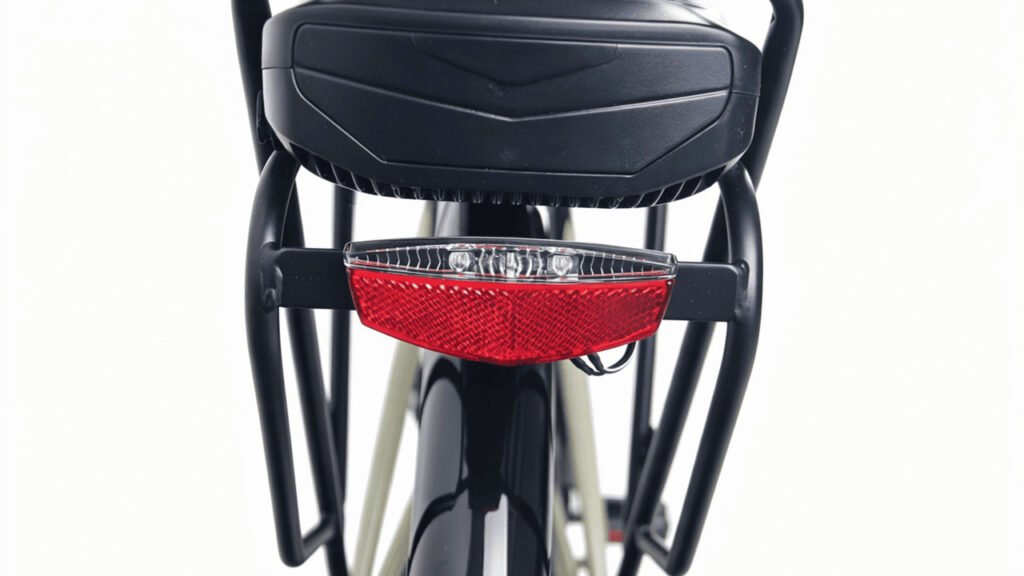

| REAR LIGHT | BUCHEL Tivoli, 6-48V, w/K-MARK (connected w/lithium ion battery) |
| ELECTRIC CABLES | Quick Connect for Easy Maintenance, with IP66 Waterproof Plugs, No Throttle Cable |
| MAX SPEED | 25 KM/H |
| CHARGE TIME | 4 Hours |
| ESTIMATED RANGE | 30 -40 KM |
