Electric Bike
Model No. EC26-03
EC26-03

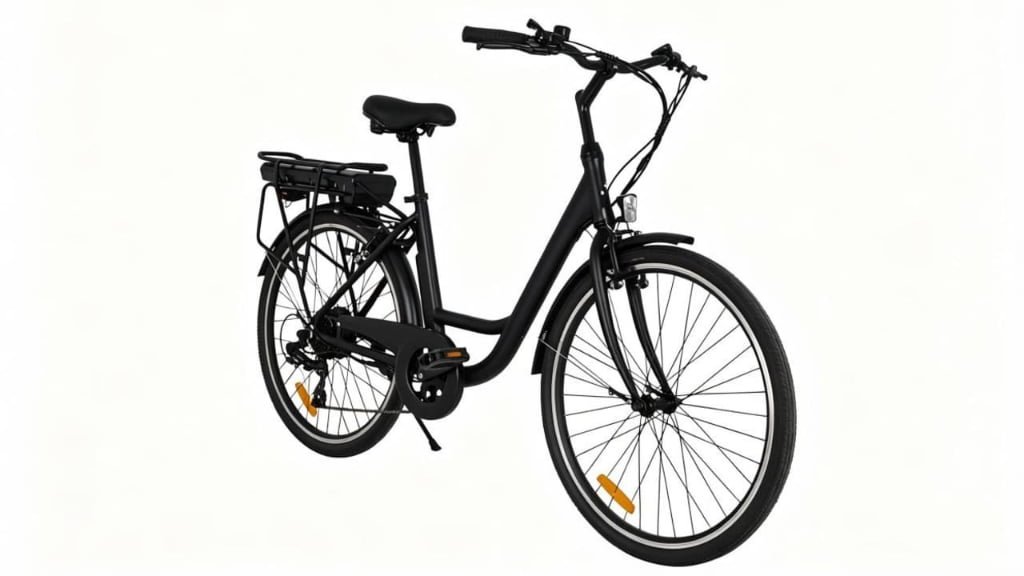

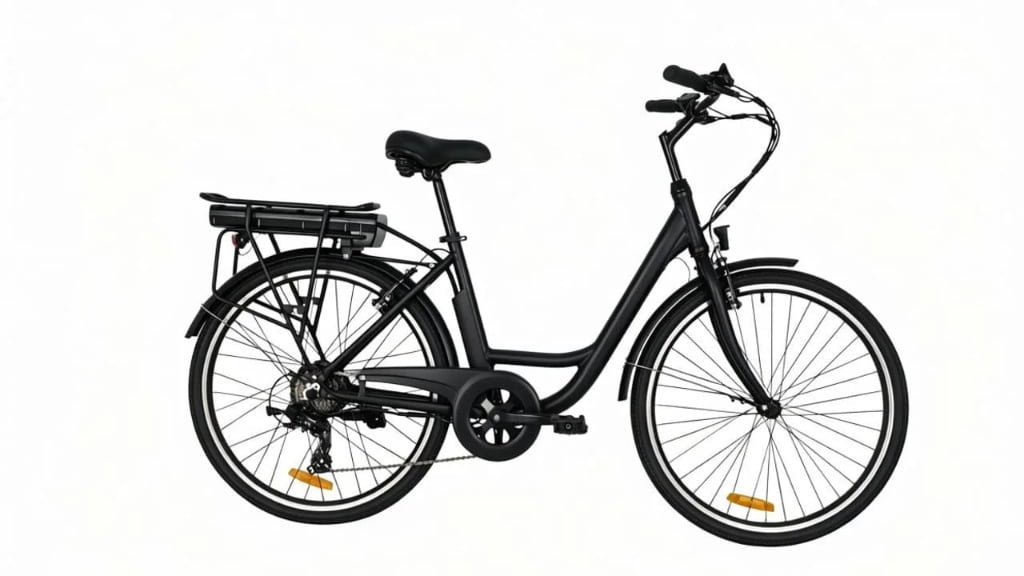

26 inch city eBike 36V250W rear hub motor, 36V10.4Ah Lithium ion batteryModel No.
- ■ OEM/ODM customization available
- ■ EN 15194 / UL 2849 / JIS certified options
- ■ Wholesale & private-label programs available
annie@zotec-ev.com
+86 15000722592
Technical Data
Product Specifications
Detailed technical parameters for engineering and procurement reference.
| Parameter | Value |
|---|---|
| Model No. | EC26-03 |
| Frame material | Aluminium alloy |
| Wheel size | 26'' |
| Fork | Steel 26'' Rigid Fork, black |
| Handle Bars | alloy φ22.2*φ25.4*620W*2.6T/B=33°/H=26/L=175mm, comply w/EN Std |
| Stem | φ25.4*φ25.4/L=180mm/EXT=100mm, comply w/EN Std |
| Rear Shift Levers | Shimano ASLTX30R7AT 7 speed thumb shifter |

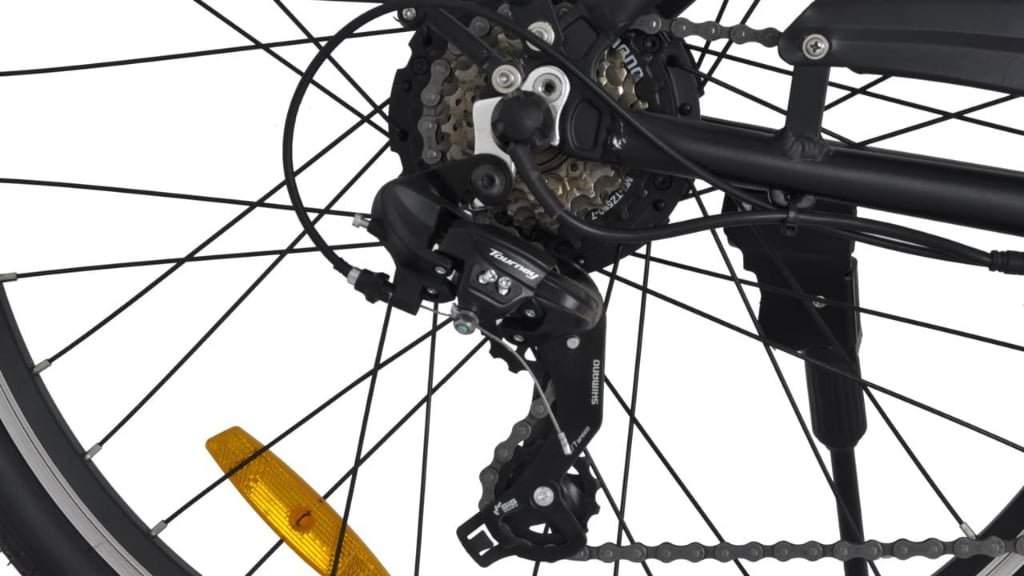

| Rear Derailleur | Shimano ARD-TY300D, 7 speed |
| Freewheel/ Cassette | Shimano AMFTZ5007428 7S 14-28T |
| Chainwheel/Crank | C102 1/2"*3/32"*42T*170L steel crank/chainring |
| Chain | KMC Z7GY/BR 1/2"*3/32"*110L |
| Wheel | Aluminium alloy double-wall rim 26*H21.5mm*W24.5mm/13G*36H/A/V nozzle |
| Front Hub | Aoyang GL-B01F 100*140*3/8/13G*36H/ V brake |
| Rear Hub | Shengyi Rear-Hub Motor |
| Tyre | 26*1.75 /black tyre, comply w/CPSC Std |
| Front Brake | Promax TX-117 V Brake |
| Rear Brake | Promax TX-117 V Brake |
| Grips | HL G-302 135MM/135MM , comply w/PAHS Std |

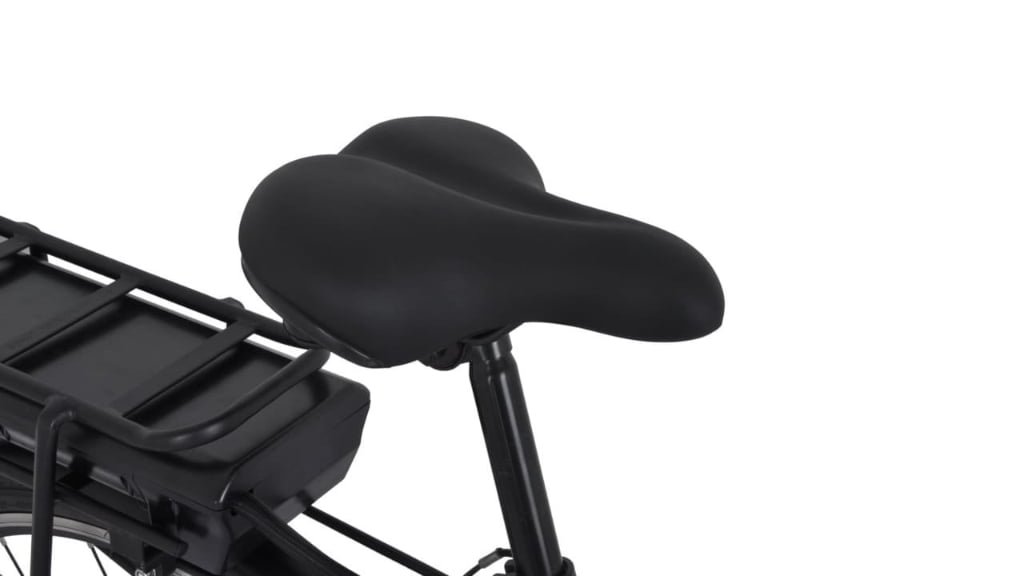

| Saddle | HL TH-J908-1 250*210MM/CP arc, comply w/ROSH Std |
| Seat post | Steel φ27.2*300*1.4T, w/Minimum Insertion Mark, comply w/EN Std |
| Pedals | Plastic pedal, 9/16" axle comply w/ AS/BS/Std |
| Fender | Plastic DH-PC50 black, w/stainless steel OU-TYPE fender stay |
| Chain Cover | Steel 44T,CC: 325MM/black |

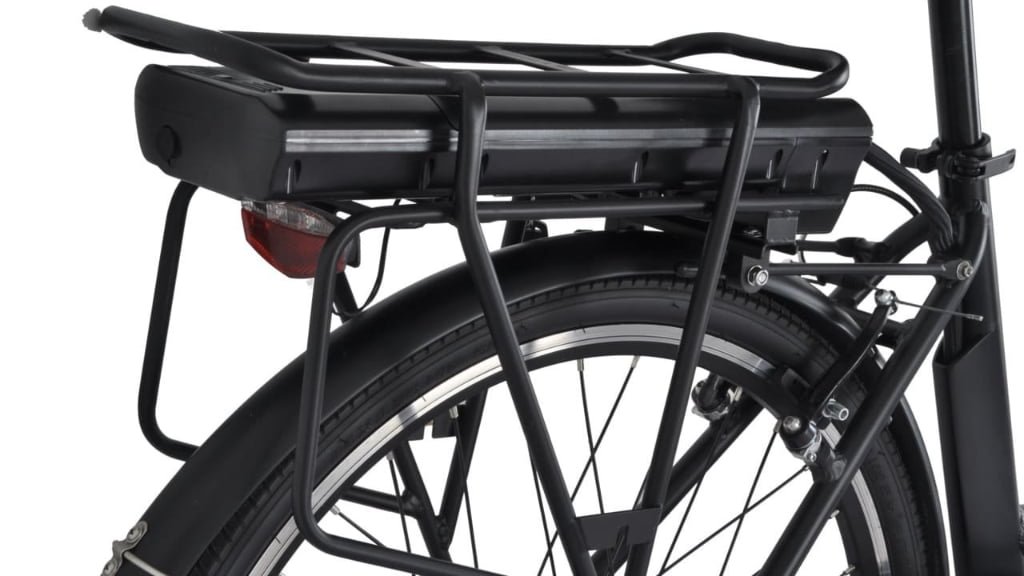

| Rear Carrier | Steel, double-layer rear carrier, marking w/ISO 11243 2016 MAX 25kg |
| Reflectors | wheel -yellow reflectors, comply w/AS BS CPSC Std |
| Kickstand | Steel Chainstay kickstand, adjustable |
| Parameter | Value |
|---|---|

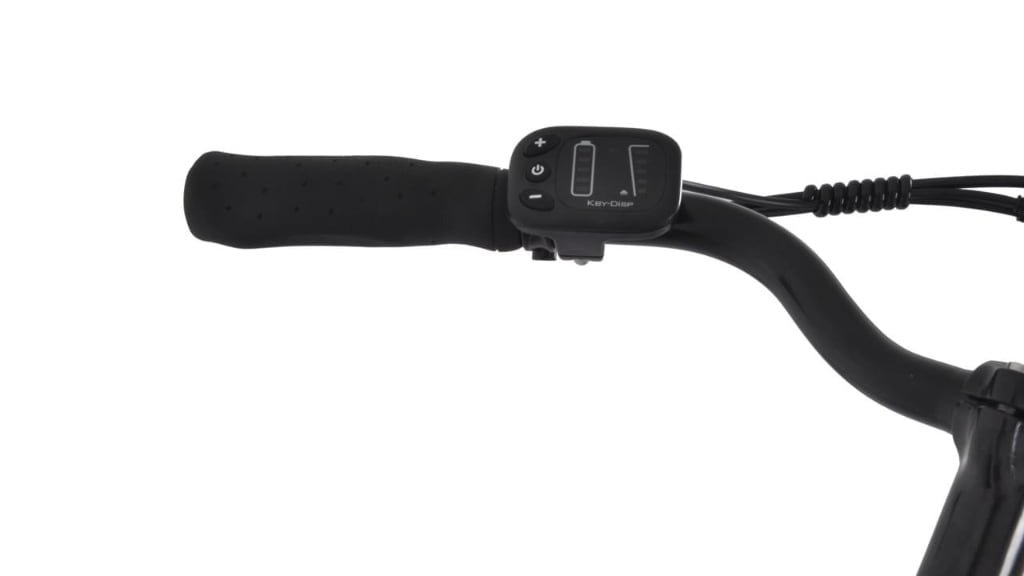

| Display | LED Screen/ KD59E LED /SGS 0-5 Modes |
| Assistance Management | 5 levels of assistance |
| Walking Assist | Yes, 6km/h |
| Engine Brand | Shengyi |
| Engine Type | Rear-Hub Motor |
| Power | 250 W |
| Max Torque | 40Nm |
| Battery | 36V*10.4Ah /374.4Wh (Chinese 2600mah) |
| Battery Distance | 45 - 50KM |
| Battery Charger | 36V2Ah DC2.1, comply w/EN Std |
| Charging Time | 5-6 hours |
| Battery Lifetime | >500 cycles |
| Controller | Santroll 36V 15±1A |
| Sensor | Speed Sensor |

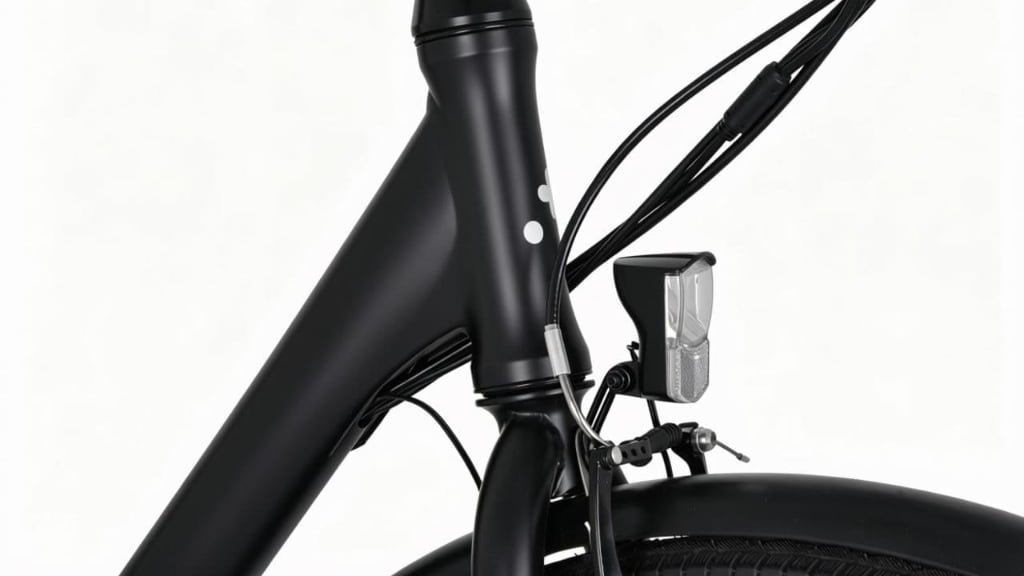

| Front Light | Int. battery powered, XC-295E, LED light E-Bike/6-48VDC, 90 lux, comly w/EN std |
| Rear Light | Ext. battery powered, XC-172E, LED light E-Bike/6-48VDC, 6 lux, comly w/EN std |
