Model No. EC20-01-City

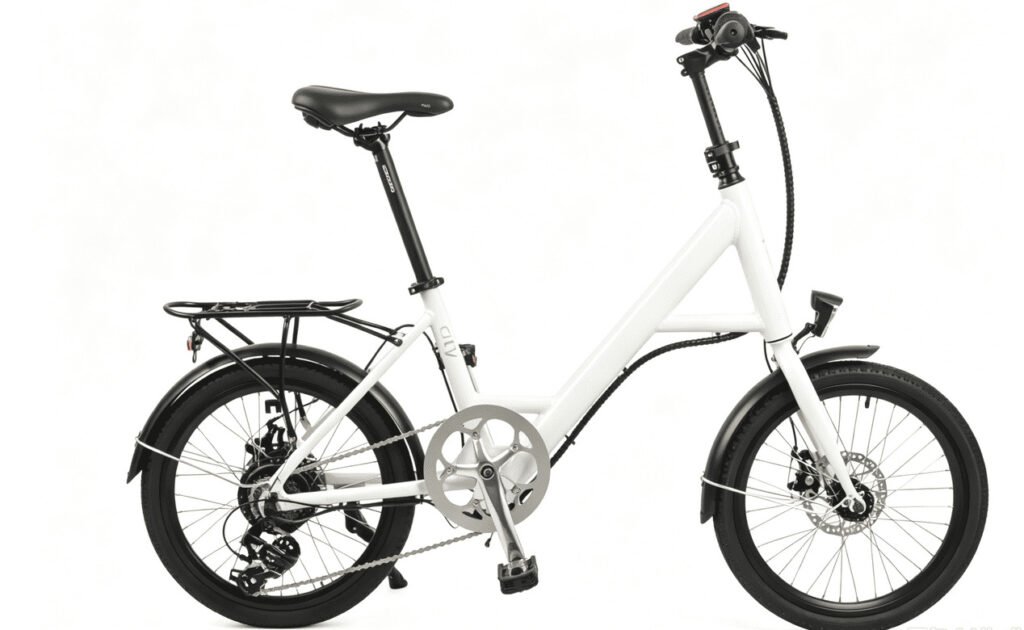

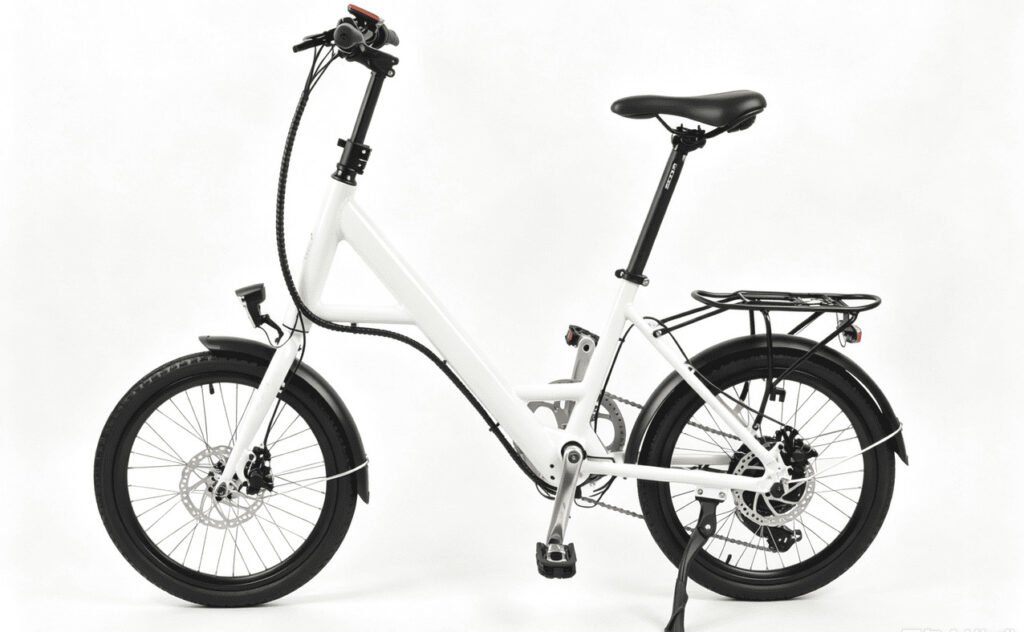

20 inch alloy City Sports eBike, Shimano 7 Speed, 36V250W rear hub motor, 36V10Ah lithium ion battery
Detailed technical parameters for engineering and procurement reference.
| Parameter | Value |
|---|---|
| MODEL NO. | EC20-01-City |

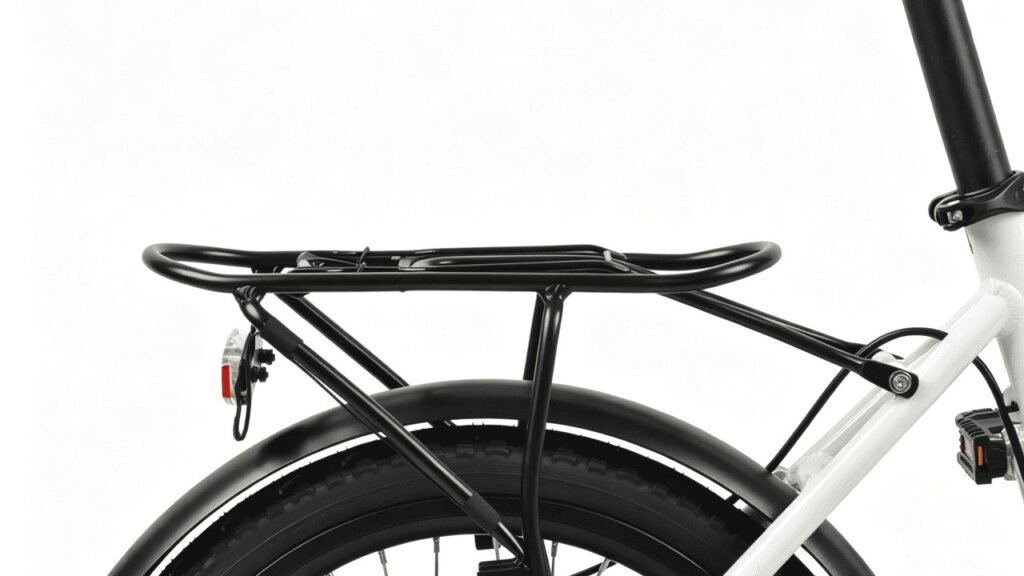

| REAR CARRIER | Aluminum Alloy, 20'' Separate Rear Carrier (Black) |

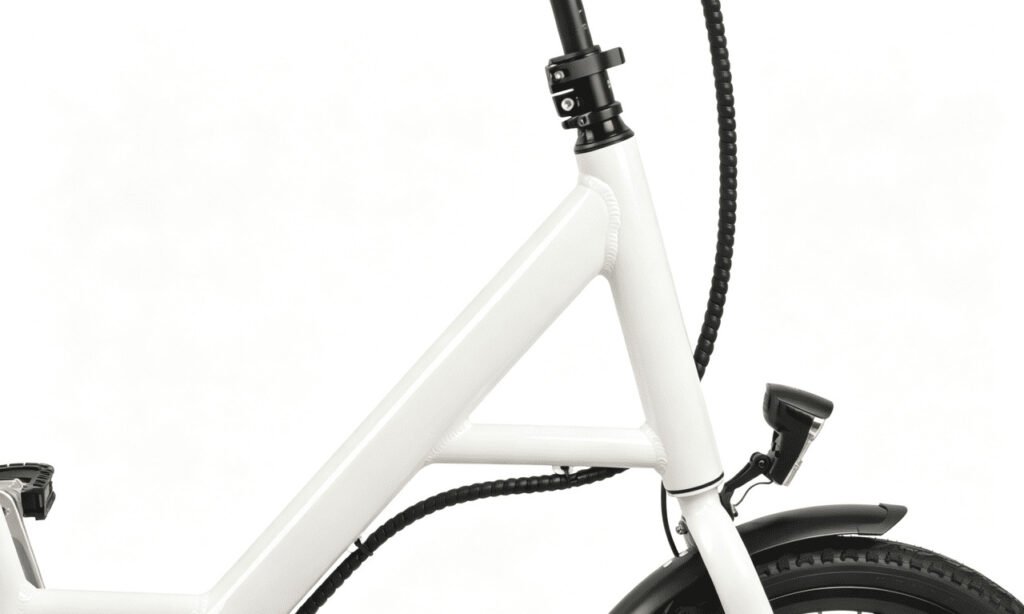

| FRAME | 6061 Aluminum Alloy, 20'' Battery Integrated Frame, Disc brake |
| FORK | 20'' Steel, Rigid Fork |

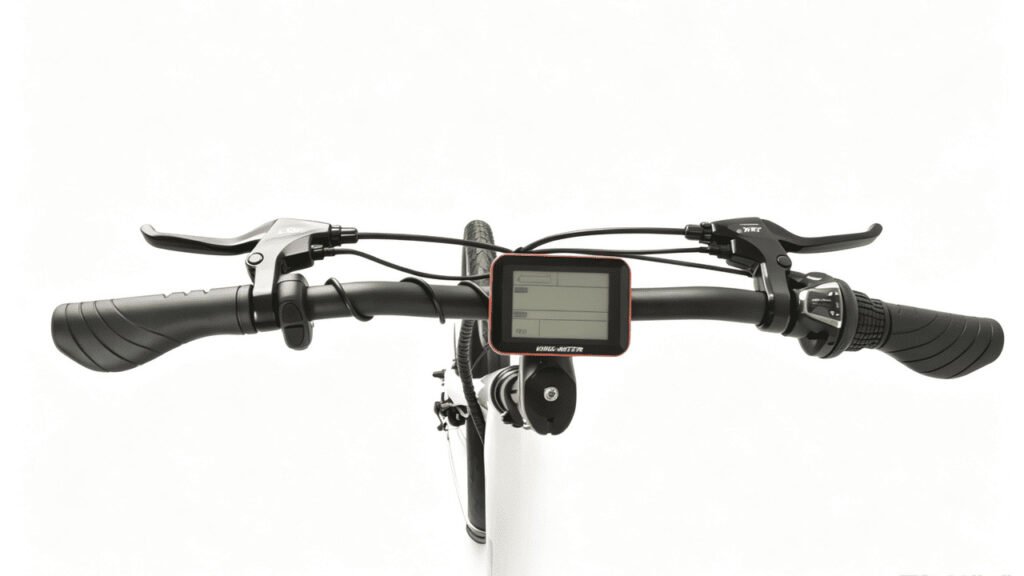

| HANDLEBAR | Alloy, 2.2*25.4*2.6T*6 degree*30H,L: 175mm, W:620mmL, comply w/EN Std |
| STEM | Alloy, ￠28.6*￠25.4*H38mm*EXT 60MM+10 degree, comply w/EN Std |
| STEM ADJUSTOR | ZOOM SR-50N EASY-UP LITE Stem Adjustor |
| R. GRIP SHIFTER | SHIMANO TOURNEY 7 Speed, SL-RS35 Revoshifter |
| REAR DERAILLEUR | SHIMANO ARDTY300D, TOURNEY, 6S DIRECT ATTACHMENT TYPE, BULK |
| FREEWHEEL | SHIMANO AMFTZ5007428, 7S 14-28T |

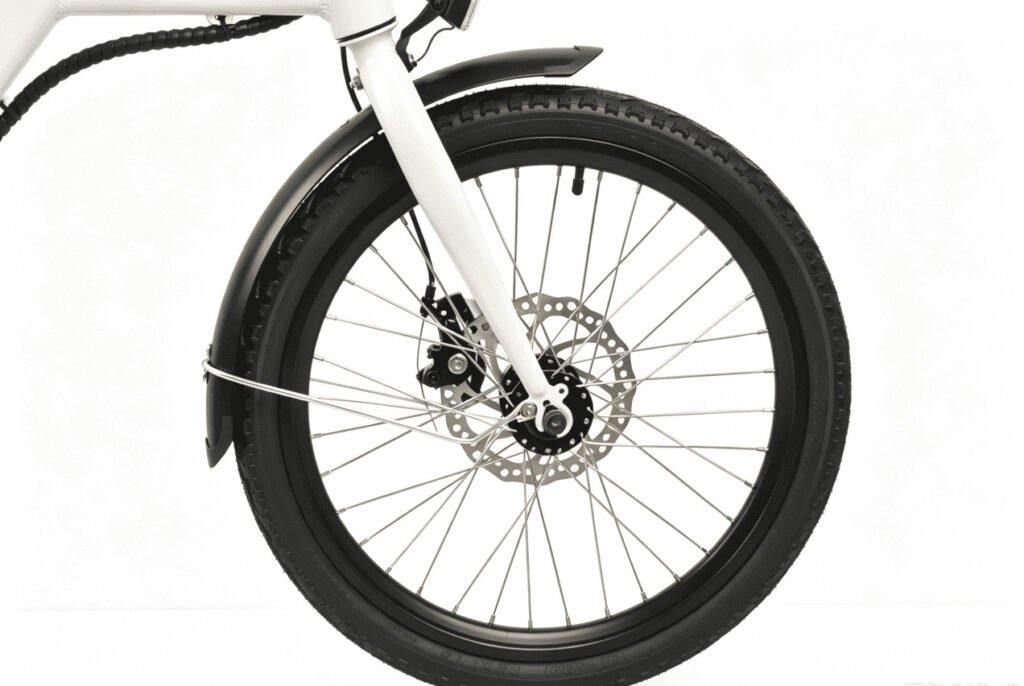

| RIM | STARS, 20″*36H*13G, Alloy, Double-Wall Rim, A/V |

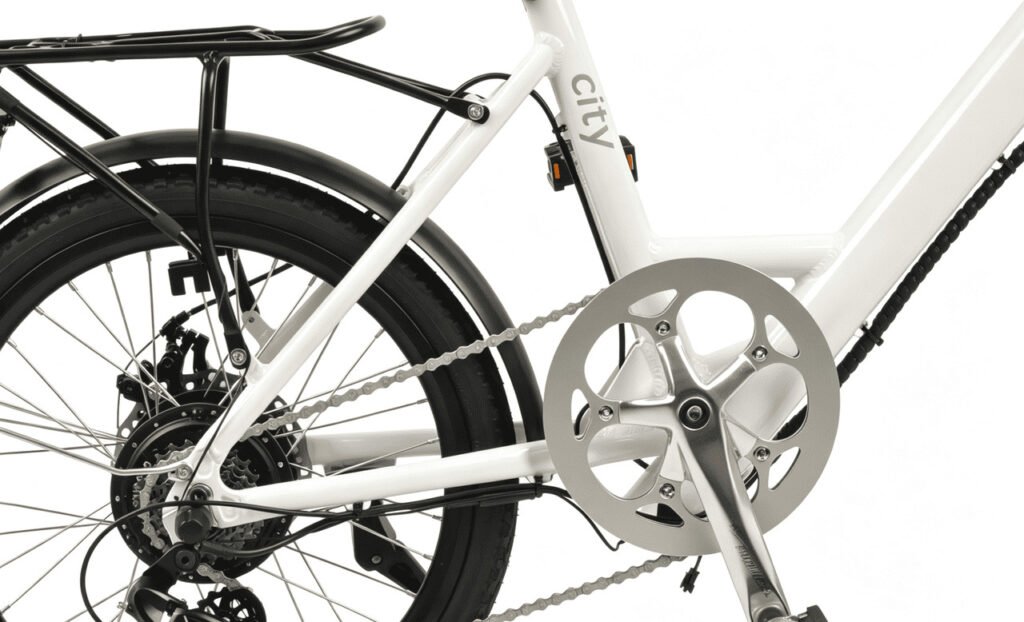

| CHAINWHEEL/CRANK | PROWHEEL, 1/2*3/32*52T*152, Steel/Aluminum Alloy, CNC Silver |
| CHAIN | KMC, Z7RB 7 Speed Chain |
| TYRE | KENDA, A/V butyl tube, Punture Resistance |
| FRONT BRAKE | TEKTRO MD280 Disc Brake, Aluminum Alloy |
| REAR BRAKE | TEKTRO MD280 Disc Brake, Aluminum Alloy |

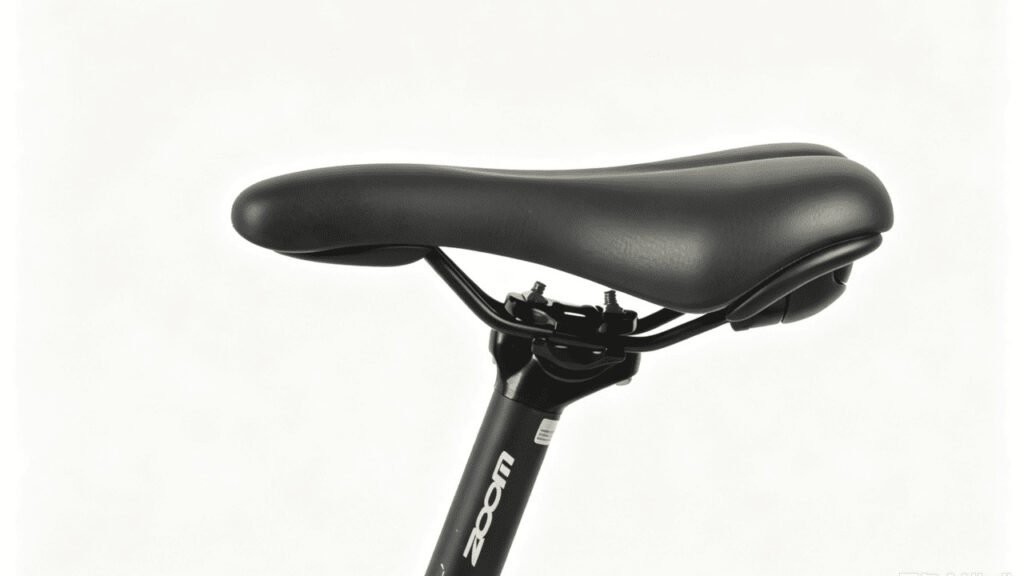

| SADDLE | S.R., Ergonomic, comply w/ROSH STD |
| SEAT POST | ZOOM, Aluminum Alloy, w/Minimium Insertion Mark |
| PEDAL | Plastic/Steel, Foldable, w/BS Reflector |
| GRIP | VELO 132MM/92MM, Comply w/PAHS Standard |
| BELL | ANNUO 11A-05 BELL |
| Parameter | Value |
|---|---|
| BATTERY | Lithium Ion 360WH (36V10AH 5000mah 21700 cell) |
| MOTOR | SHENGYI, Rear-Hub Motor, 20''36V250W, Speed Limit: 25KPH |
| CONTROLLER | SANTROLL, Max Current: 15A |
| DISPLAY | KINGMETER, LCD Display, w/USB Portal |
| SENSOR | BIGSTONE 12 Point Magnetic Steel, P24L |
| FRONT LIGHT | Uni LED/15LUX, 12-48V, L: 100+1600mm, SM-2A plugs |
| REAR LIGHT | Tivoli/ 6-48V, L: 600mm, SM-2A plugs |
| CHARGER | D-POWER, 36V2A, British Standard |
| MAX SPEED | 25 KPH |
| CHARGE TIME | 4 Hours |
| ESTIMATED RANGE | 40 KM |
Fill in your requirements and our team will respond within 24 hours with pricing, MOQ, and lead time details.
